Description
OWC Flex 8 External HDD/SDD Overview
- 1Description
- 2USB-A 3.2 Gen 1
- 3Your Multitool for Digital Workflows
- 4Hardware RAID Control for Speed, Reliability, and Flexibility
- 5Configure to Your Unique Needs
- 6Full Stream Ahead
- 7Ready to Work
- 8Disconnect in One Click
- 9Display Support
- 10Display Support by Port
- 11Power Delivery

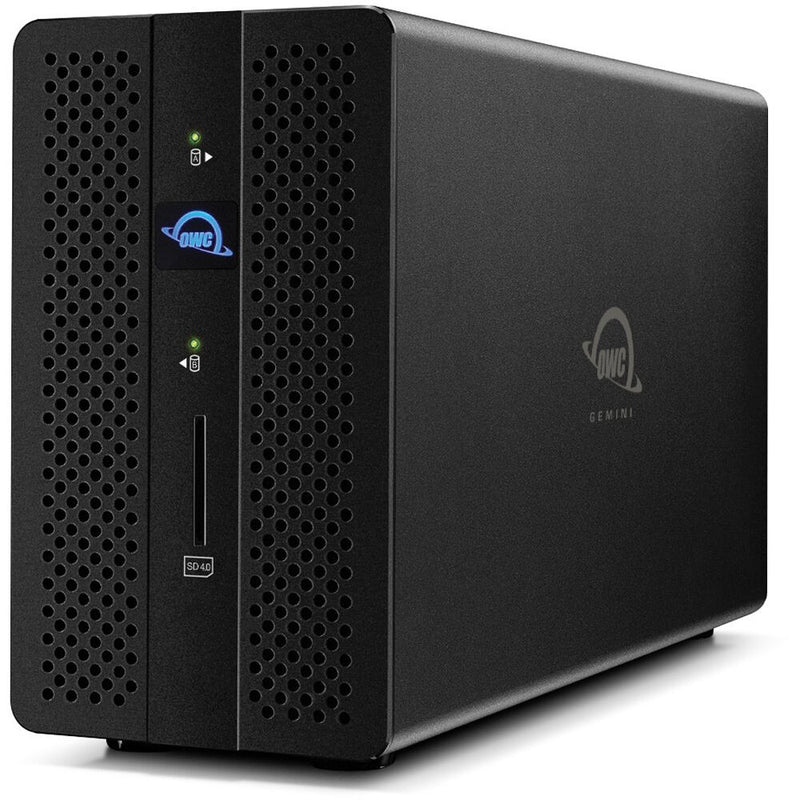

Boost the storage capacity of your laptop or desktop with the Gemini 40TB 2-Bay Thunderbolt 3 Raid Array (2 x 20TB) from OWC. Equipped with a pair of 20TB 3.5" 7200 rpm HDDs, this RAID array delivers fast transfers at speeds up to 537 MB/s. Two Thunderbolt 3 ports accommodate a host connection via the included cable, while also supporting daisy chaining. Two USB-A 3.2 Gen 1 ports are also present, along with a Gigabit Ethernet port, a DisplayPort 1.2 output, and a UHS-II SD card reader. With its hardware RAID controller, the Mercury Elite Pro Dock comes preconfigured in RAID 0 and supports RAID 1, SPAN, and JBOD modes. A preinstalled fan ensures components cool, while a Kensington Lock slot can be used to secure the array to a permanent fixture using a compatible lock, available separately.
USB-A 3.2 Gen 1
USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s and is synonymous with USB 3.1 Gen 1 and USB 3.0.
Your Multitool for Digital Workflows
With dual drive bays, and seven connectivity ports including an SD card reader, the OWCGemini is a do-it-all tool for organizing your digital life. You'll have plenty of room to duplicate footage, create and manage archives, or render and process effects. Connect your favorite peripherals via USB ports.
Hardware RAID Control for Speed, Reliability, and Flexibility
The Gemini utilizes hardware RAID to unleash the full potential of two 3.5" 7200 rpm hard drives. Preconfigured in high-speed RAID 0 mode to deliver maximum sustained throughput from its drives, this RAID array offers real-world speeds up to 497MB/s to handle HD video workflows. If you desire the extra security of mirrored data, you can configure the Gemini in RAID 1 mode. Need more drive flexibility? Set up a span to combine the capacity of the two drives into one huge volume or use the drives as independent volumes.
Configure to Your Unique Needs
You can customize the Gemini to quickly adapt to project changes and help you stay ahead of deadlines. With built-in hardware RAID, you have four drive set-up choices:
- Non-RAID to keep the drives as independent volumes
- RAID 1 (mirror) for backup reliability
- RAID 0 (stripe) for optimal performance and maximum speed
- Span to combine the drive capacities into one huge volume for extra-large storage capacities
Full Stream Ahead
The Gemini features a Gigabit Ethernet port to keep you connected at speeds that leave Wi-Fi in the dust. A must-have for shared workflows and workspaces, Ethernet connectivity speeds up file transfers giving you an edge on your work in progress.
Ready to Work
The Gemini undergoes OWC's multi-hour drive "burn-in" performance certification procedure prior to shipping. This ensures it arrives operating properly and immediately ready for demanding use.
Disconnect in One Click
OWC Dock Ejector software safely disconnects drives in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between workstations and get the most out of your OWC Dock.
Display Support
- Up to one 5K display at 60 Hz
- Or one 4K display at 60 Hz
- Or one 4K display at 30 Hz
- Or two 4K displays at 60 Hz
- Or one 4K display at 60 Hz and one 4K display at 30 Hz
Display Support by Port
- Thunderbolt 3: up to 5K at 60 Hz via a native Thunderbolt 3 display or 4K at 60 Hz via a Thunderbolt display or a USB-C display adapter
- DisplayPort: up to a 4K at 60 Hz
Power Delivery
Provides up to 27W of power via Thunderbolt 3 to charge or reduce laptop and device battery draw.
UPC: 810100982454
In the Box
- OWC Gemini 40TB 2-Bay Thunderbolt 3 Raid Array (2 x 20TB)
- Thunderbolt 3 Cable (2.3' / 0.7m)
- External Power Supply and Power Cable
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- USB-A 3.2 Gen 1
- Your Multitool for Digital Workflows
- Hardware RAID Control for Speed, Reliability, and Flexibility
- Configure to Your Unique Needs
- Full Stream Ahead
- Ready to Work
- Disconnect in One Click
- Display Support
- Display Support by Port
- Power Delivery
OWC Flex 8 External HDD/SDD Specs
Key Specs
| Storage Capacity |
40 TB
|
| Included Drives |
2 x 20 TB 3.5" HDD
|
| Interface |
SATA III
|
| Number of Bays |
2 x 2.5"/3.5"
|
| Inputs/Outputs |
2 x USB-C Thunderbolt 3 (40 Gb/s)
2 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x RJ45 Gigabit Ethernet 1 x DisplayPort 1.2 |
| RAID |
RAID 0, 1, JBOD, SPAN
|
Drives
| Storage Capacity |
40 TB
|
| Included Drives |
2 x 20 TB 3.5" HDD
|
| Cache Memory per Drive |
256 MB
|
| Initial RAID Configuration |
RAID 0
|
| Interface |
SATA III
|
| Rotational Speed |
7200 rpm
|
General
| Number of Bays |
2 x 2.5"/3.5"
|
| Default OS Support |
Requires Formatting Before Use
|
| Inputs/Outputs |
2 x USB-C Thunderbolt 3 (40 Gb/s)
2 x USB-A 3.0 / 3.1/3.2 Gen 1 1 x RJ45 Gigabit Ethernet 1 x DisplayPort 1.2 |
| Compatible Drive Interface |
SATA III
|
| Media Card Slots |
SD
|
| Form Factor |
Desktop
|
| RAID |
RAID 0, 1, JBOD, SPAN
|
| Bridge Chipset |
Intel JHL6540
Intel i210 ASMedia AS |
| Transfer Rates |
537 MB/s (RAID 0)
|
| UASP Support |
Yes
|
Software
| OS Compatibility |
Windows 11
Windows 10 (64-Bit Only) Windows Server 2016 macOS 13 macOS 12 macOS 11 macOS 10.15 macOS 10.14 macOS 10.13 macOS 10.12 or Later *As of July, 2023: Check with manufacturer for the most up-to-date compatibility |
Security
| Encryption |
No
|
| Security Features |
Kensington Security Slot
|
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Source |
AC Adapter
|
| PSU Wattage |
1 x 120 W
|
Environmental
| Operating Temperature |
41 to 95°F / 5 to 35°C
|
| Operating Humidity |
8 to 90% (Non-Condensing)
|
| Operating Altitude |
-1,000 to 10,000' / -304.8 to 3048 m
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Storage Humidity |
5 to 95%
|
| Storage Altitude |
-1,000 to 40,000' / -304.8 to 12,192 m
|
| Certifications |
CE, FCC, VCCI, BSMI, RCM, RoHS
|
Physical
| Color |
Black
|
| Status Monitoring |
LED Indicator
|
| Cooling |
1 x 3000 rpm 60 mm Fan
|
| Cable Length |
2.3' / 0.7 m
|
| Material of Construction |
Aluminum
|
| Dimensions |
9.4 x 5.8 x 3.3" / 238.8 x 147.3 x 83.8 mm
|
| Weight |
3.5 lb / 1.6 kg
|
