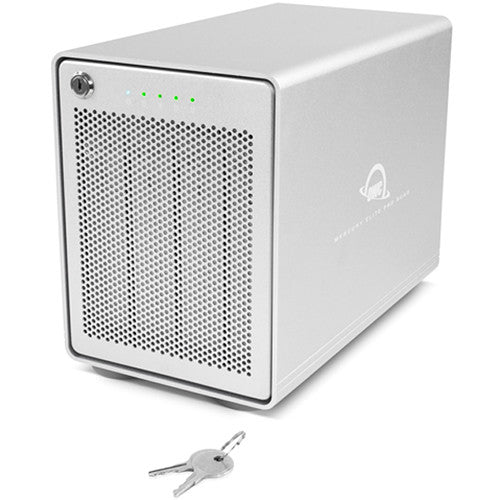

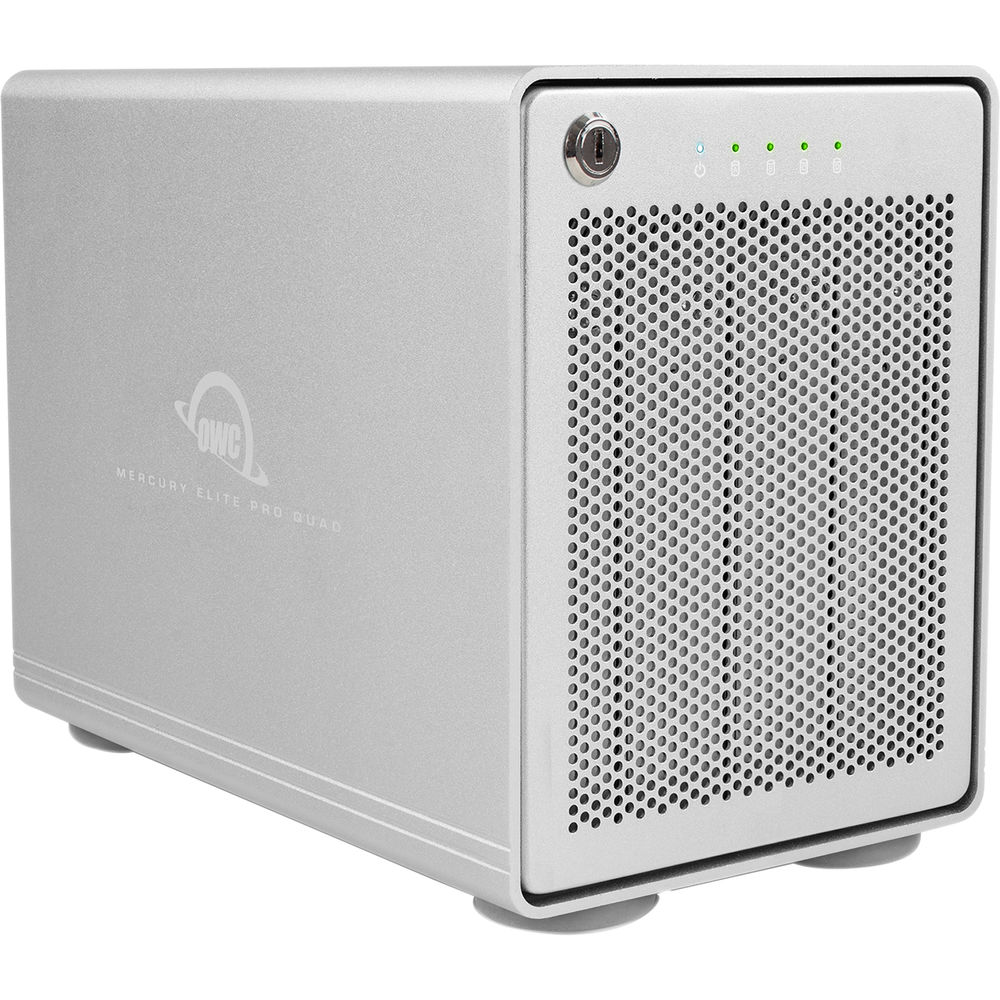

64TB (4 x 16TB) Capacity7200 rpm Enterprise DrivesData Transfer Rates up to 974 MB/s1 x USB 3.1 Gen 1 Type-C Port Boost your storage capacity with the 64TB Mercury Elite Pro Quad 4-Drive HDD Storage Solution from OWC . Capable of data transfer rates up to 947 MB/s, the four-bay Mercury Elite Pro Quad comes with four 3.5" 7200 rpm enterprise drives and a USB 3.1 Gen 2 Type-C interface.
This version of the Mercury Elite Pro Quad comes with SoftRAID XT for macOS, which supports RAID modes 0, 1, 4, 5, and 0+1. The array has been pre-configured for RAID 5. Windows users can set up the drives for RAID using Windows Drive Spaces or a different RAID software application.
Designed for quiet and cool operation, the Mercury Elite Pro Quad features a lockable bay door, a Kensington lock slot, and an aluminum enclosure.

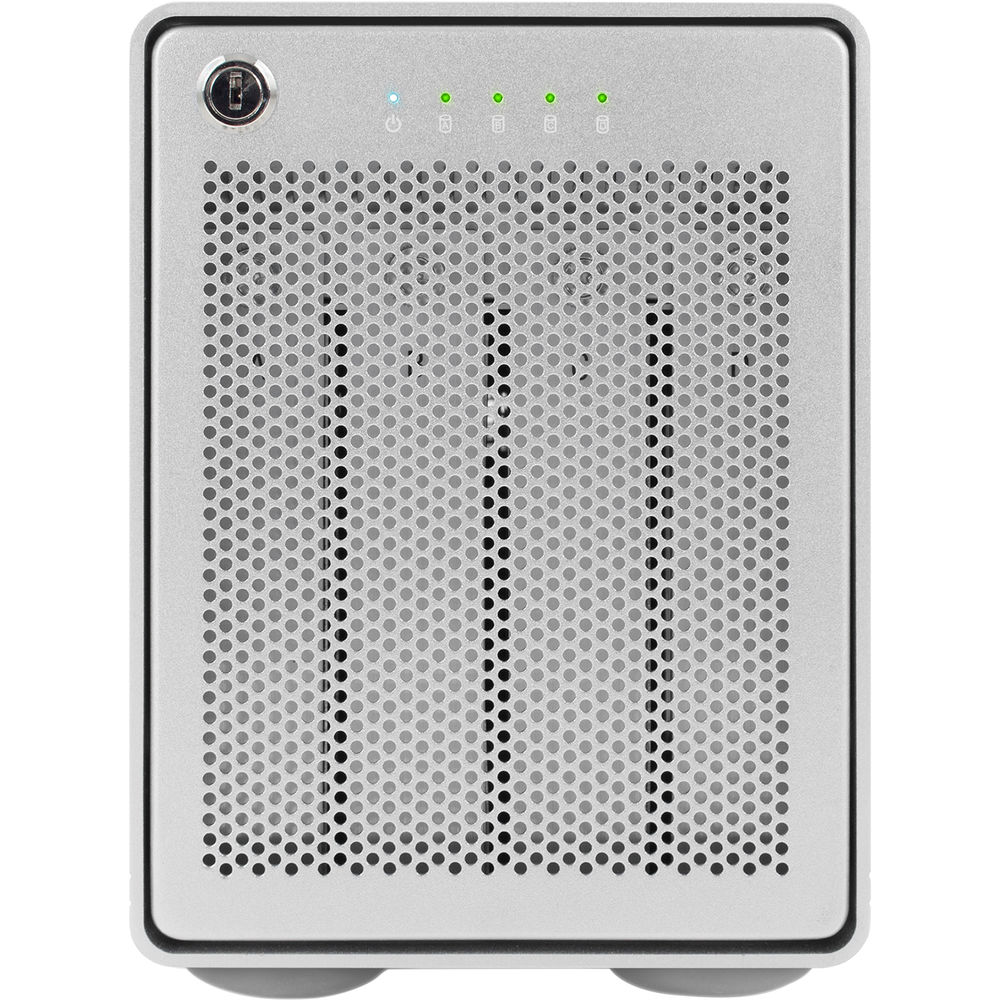

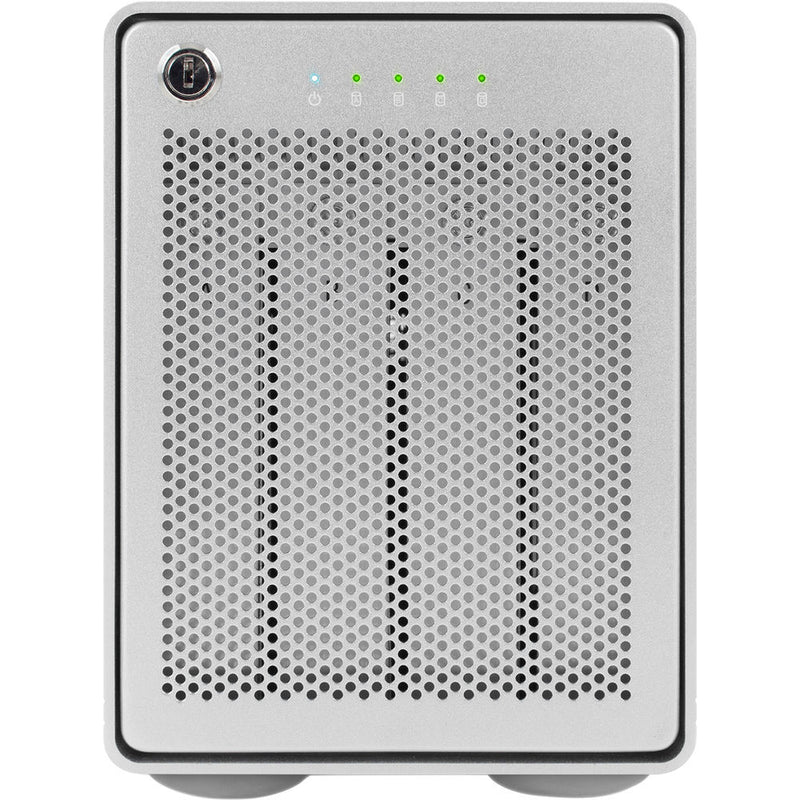

Speed, Storage, and Security with SoftRAID Pre-configured for RAID 5, the Mercury Elite Pro Quad features advanced RAID capabilities, letting you choose the best option for your workflow. Whether you want massive capacity through a single large array, need maximum performance up to 947 MB/s, or redundancy to keep your data secure, the Mercury Elite Pro Quad gives you the option of OWC's proprietary SoftRAID engine or Windows-supported RAID modes. Design Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, and vibration-absorbing feet, the Mercury Elite Pro Quad is designed to run cool and quietly, making it ideal for noise-sensitive environments. Front-facing LEDs provide an instant drive-activity snapshot, while the front panel access lock helps to keep your drives safe. You can also secure the entire drive with the rear-mounted Kensington compatible lock slot. OWC's multi-hour drive "burn-in" performance certification procedure helps to ensure that your drive arrives operating properly and ready to perform. UPC: 810586034852
| Number of Bays | 4 x 2.5"/3.5" |
| Connections | 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s)) |
| Compatible Drive Interface | SATA III |
| Form Factor | Desktop |
| Maximum RAID Transfer Rate | 947 MB/s (Read/Write in RAID 0) |
| RAID Modes | RAID 0, 0+1, 1, 4, 5 |
| Operating System Support | Windows, macOS/OS X |
| OS Compatibility | macOS 10.6 or Later
Windows 7 or Later |
| Total Raw Capacity | 64 TB (4 x 16 TB) |
| Type | Hard Disk Drive |
| Rotational Speed | 7200 rpm |
| Interface | SATA III |
| Initial RAID Configuration | RAID 5 |
| Pre-Format | Mac OS Extended (Journaled) |
| Power Source | Internal Power Supply |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC at 6.25 A |
| Security Features | Kensington Security Slot, Lockable Bay Door |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Material of Construction | Aluminum |
| Cooling | 1 x Fan |
| Status Monitoring | LED Indicator |
| Dimensions (W x H x D) | 9.4 x 7.3 x 5.3" / 23.88 x 18.54 x 13.46 cm |
| Weight | 7.94 lb / 3.6 kg |
| Package Weight | 18.89 lb |
| Box Dimensions (LxWxH) | 15.4 x 14.3 x 10.9" |
In the Box
- OWC 64TB Mercury Elite Pro Quad 4-Drive HDD Storage Solution (RAID 5)
- USB Type-C to USB Type-C Cable
- USB Type-C to USB Type-A Cable
- External Power Cable
- 2 x Keys for Front Panel
- Limited 3-Year Warranty
