| ₹ 740955.0 includes GST and import duties. | |
| B2B customers can avail ₹ 112995.64 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
OWC Flex 1U4 External HDD/SSD Overview
- 1Description
- 2Rack Up Workflow Flexibility
- 3Future Ready
- 4Ideal for Rackmounting Environments
- 5Do It U.2 It
- 6A Complete Swap and Share Ecosystem
- 7Ready to Rack
- 8RAID Made Easy
- 9Certified for Demanding Use
- 10Secure Your Connections
- 11Display Support
- 12Display Support by Port
- 13Power Delivery
- 14Drive Bays

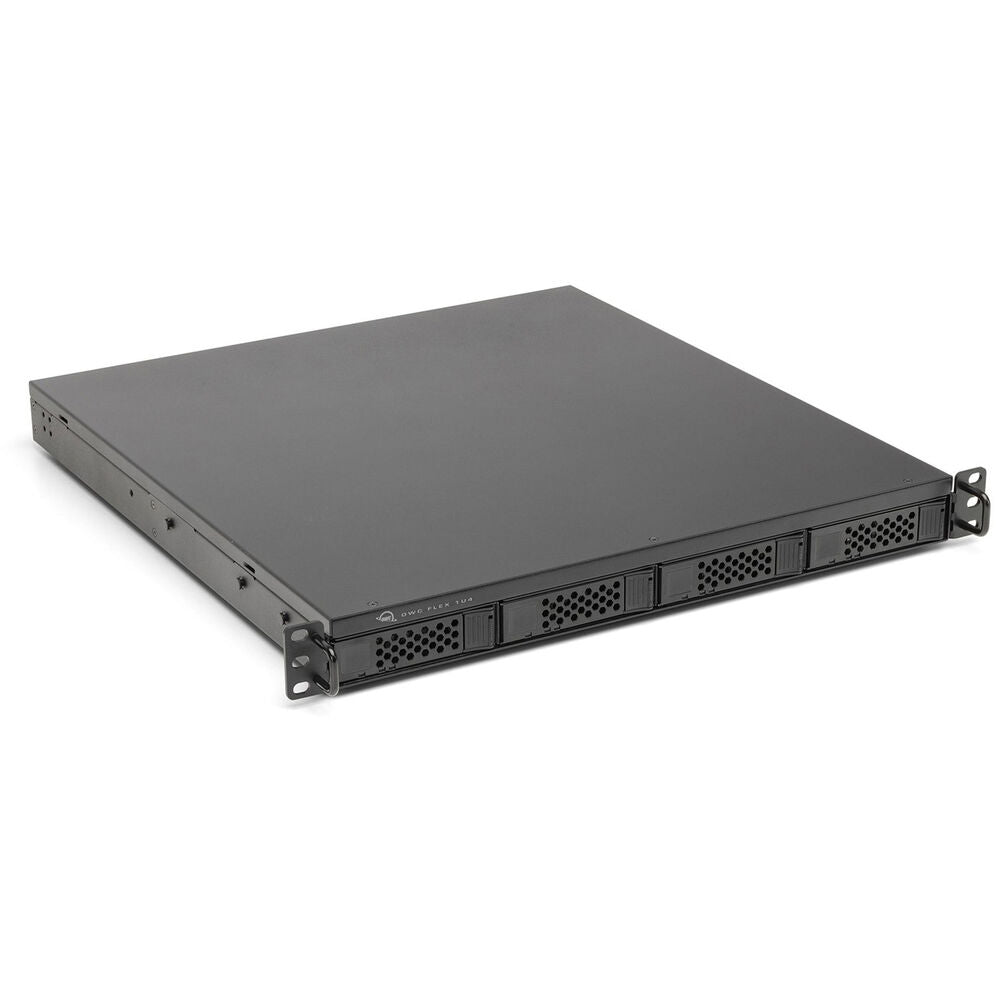

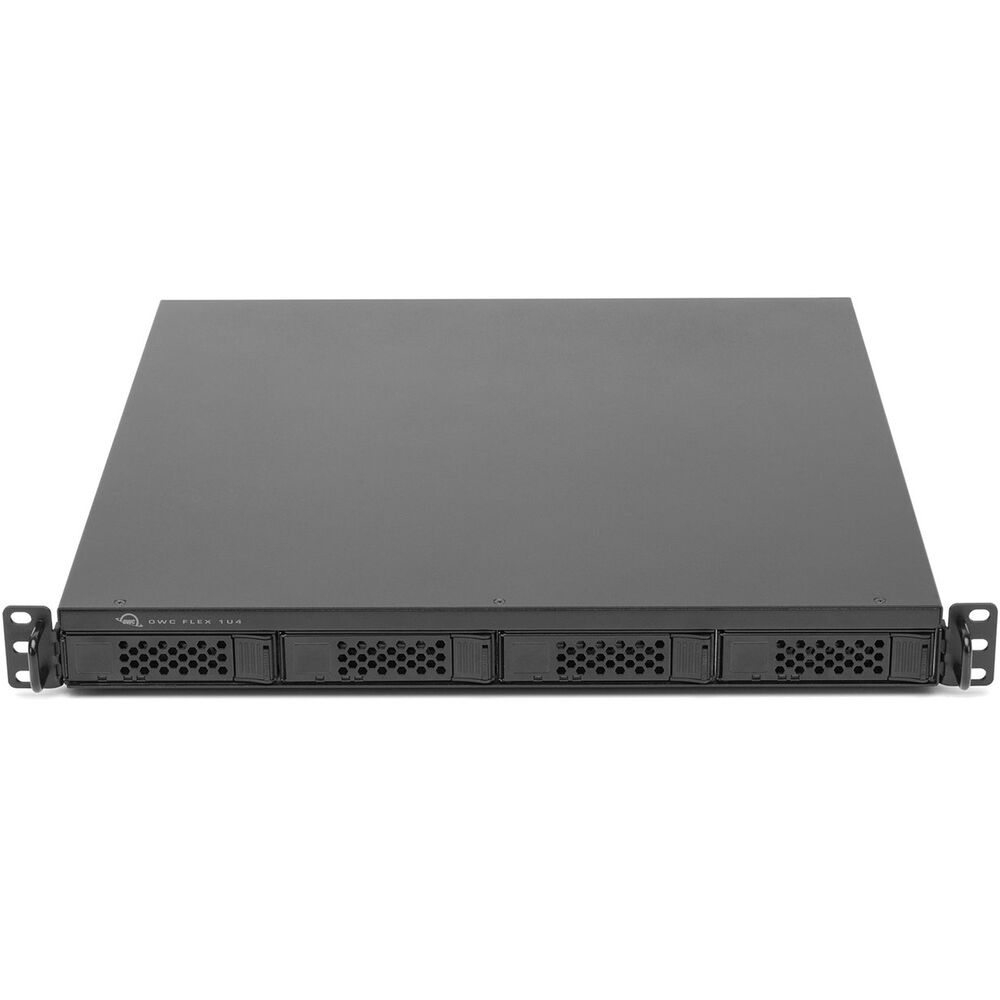

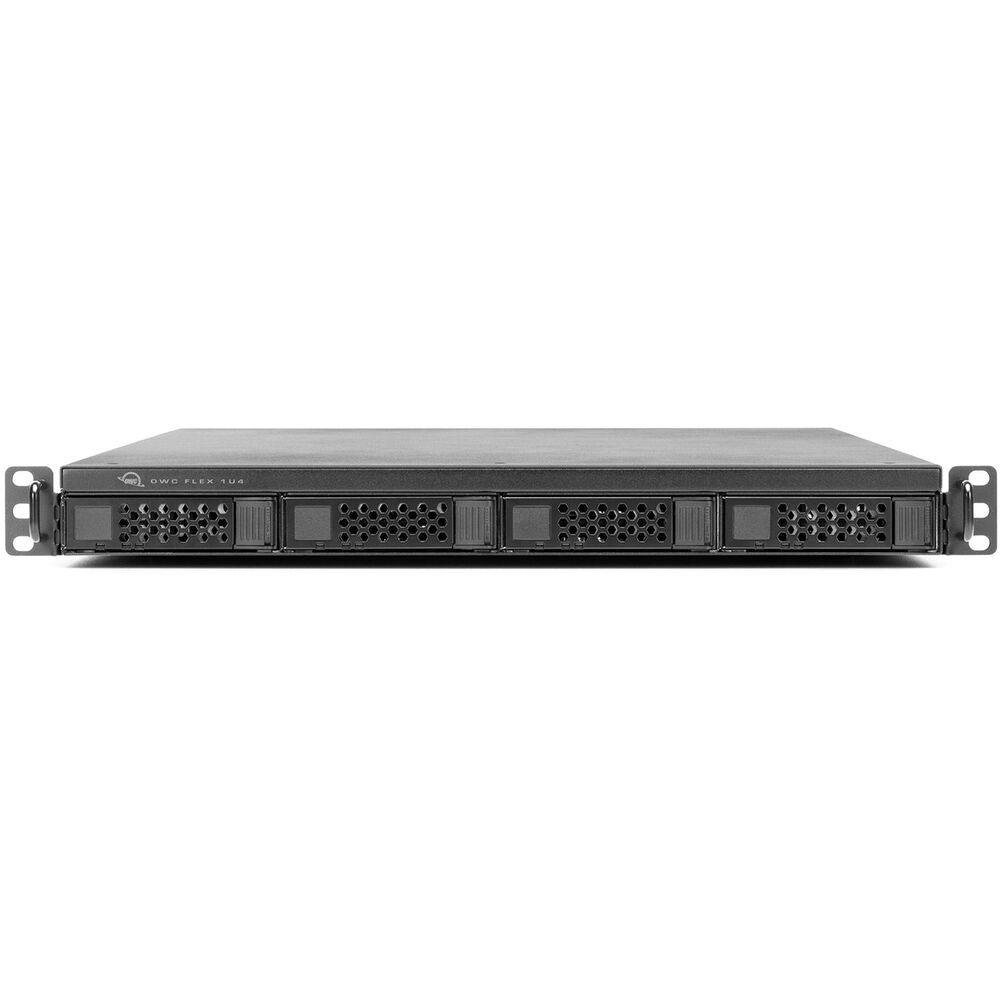

The 32TB Flex 1U4 4-Bay Thunderbolt 3 Storage Array from OWC / Other World Computing is a flexible storage, docking, and PCIe expansion solution for rackmount use. Compatible with macOS 10.15, 11.x, and 12.x, the Flex 1U4 features a storage capacity of 32TB, which is split between three 8TB 7200 rpm SATA 3.5" hard drives and four 2TB NVMe M.2 SSDs, with the SSDs being housed in an OWC U2 Shuttle One, which is a 2.5" U.2 NVMe enclosure. Connectivity to your host system is established using a 40 Gb/s Thunderbolt 3 port, which supports data transfers of up to 5000 MB/s. Daisy-chain five additional devices or add a second display to a second Thunderbolt 3 port, while two 10 Gb/s USB Type-C ports, three 10 Gb/s USB Type-A ports, and one DisplayPort 1.4 port provide additional connectivity options. Further expansion methods, such as audio/video capture cards, 10Gb Ethernet, SSD storage, a hardware RAID, or other I/O card, can be used via the PCIe 3.0 x16/x4 slot.
If you'd like to upgrade or replace the storage in your Flex 1U4, the drive bays natively support 2.5" and 3.5" SATA drives, as well as 2.5" and 3.5" U.2 drives. SAS drives are supported with an SAS drive controller (sold separately) and M.2 drives are supported using an M.2 to U.2 adapter, such as the OWC U2 Shuttle and OWC U2 ShuttleOne (sold separately). Also, the Flex 1U4 may be used on Macs with Thunderbolt 2 and Thunderbolt ports via an adapter (sold separately), but this will not support notebook charging via Thunderbolt.
Rack Up Workflow Flexibility

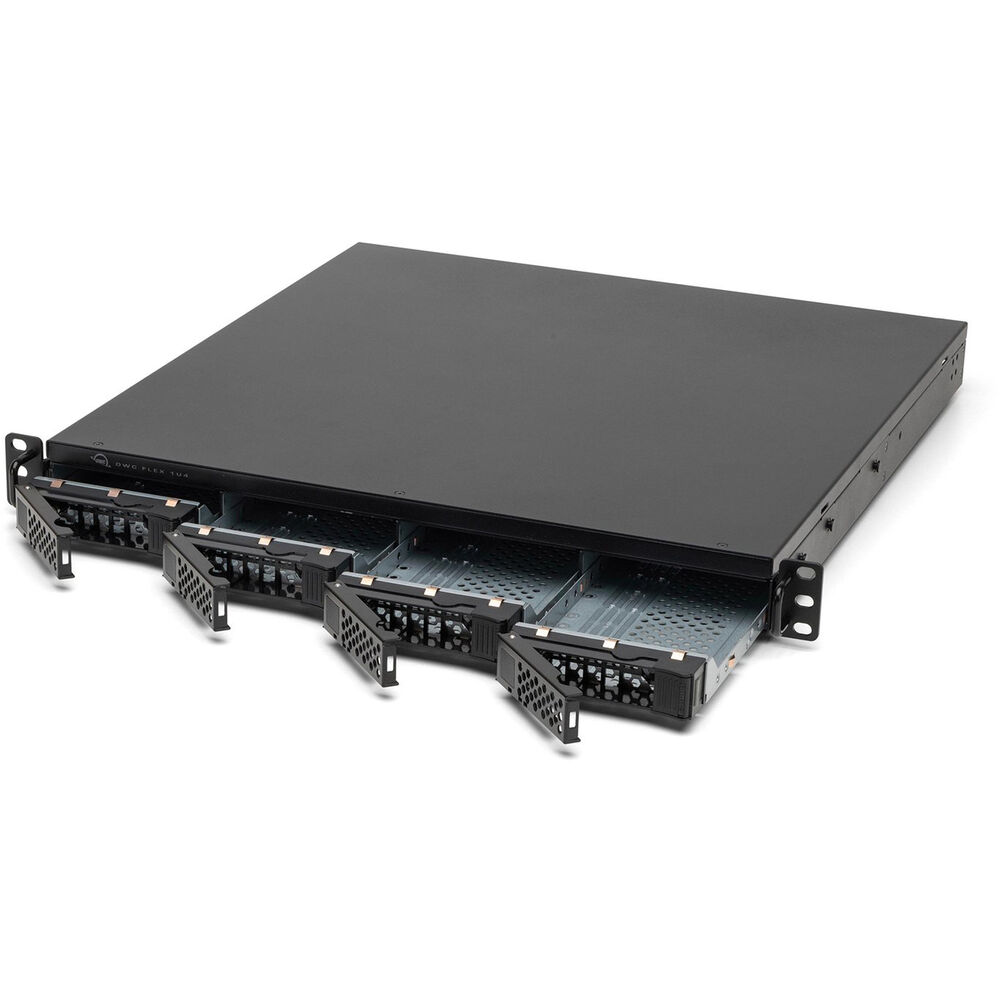

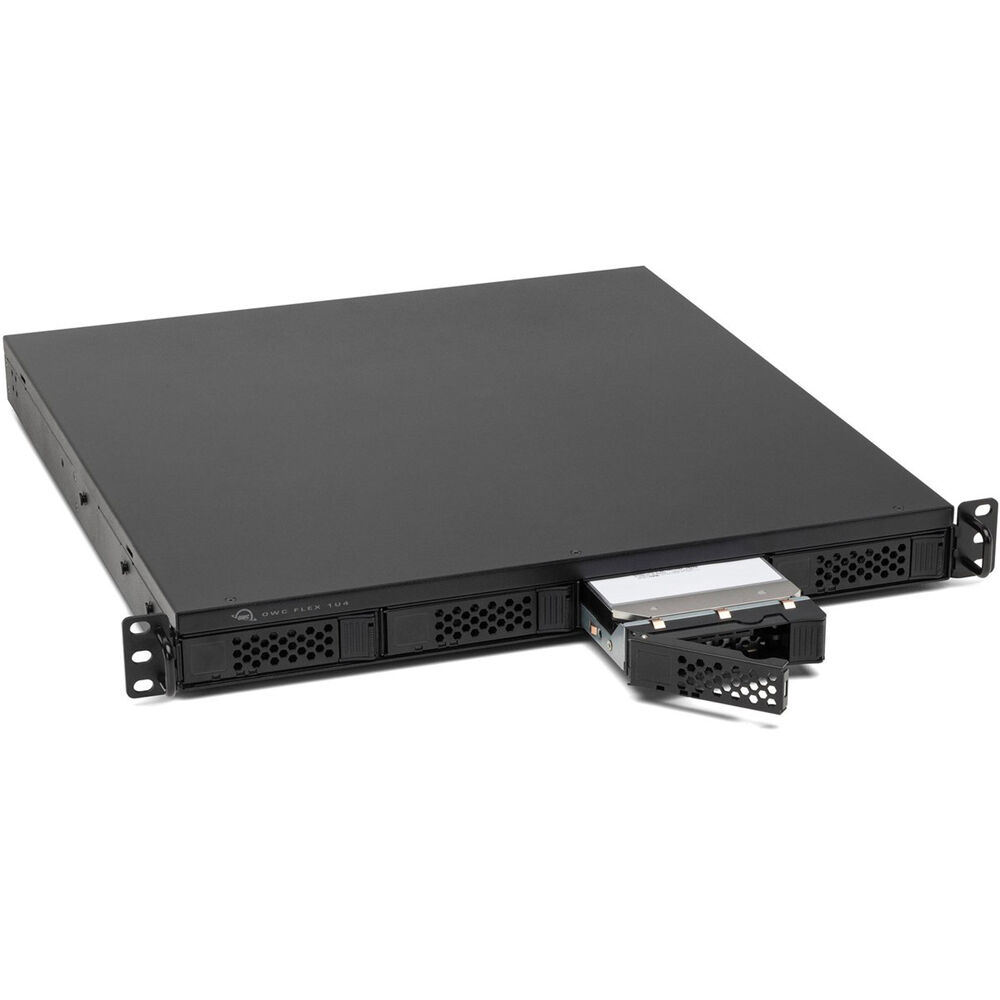

You'll turn your expandability and connectivity dreams into reality when you add the OWC Flex 1U4 to your rack or cart. Use a mix of 2.5 or 3.5" SATA/SAS and U.2/M.2 NVMe drives with four quick-access, hot-swappable drive bays. Connect mixers, keyboards, cameras, and other gear to your heart's content, as well as charge mobile devices with an ample variety of Thunderbolt and USB ports. Add up to an 8K display via DisplayPort. And when you have a custom capture, recording, networking, or storage need, the OWC Flex 1U4 lets you install a PCIe card to conquer specialized tasks.
Future Ready
When your workflow needs change, the "FLEXpandability" of the OWC Flex 1U4 easily adapts. Add new drives, connect different devices, and install a half-length, full-height, single-width PCIe x16 card of your choice, like a 10Gb Ethernet networking card or the fast OWC Accelsior 4M2 SSD for expanded performance storage capacity. By not locking you into an inflexible single-task design, the OWC Flex 1U4 extends its useful life and maximizes your investment well into the future.
Ideal for Rackmounting Environments
The OWC Flex 1U4 is like a bolt-in productivity supercharger for new or existing rack environments powered by a rack Mac Pro, rack PC, MacBook Pro, PC notebook, or even a Mac mini. Whether you build your own custom drive and card configuration or select one of OWC's convenient ready-to-run solutions, the OWC Flex 1U4 is ideal in a wide variety of settings:
In School: perfect for taming ever-growing collections of digital files with easy integration and future drive capacity and performance scalability.
At Work: adds Thunderbolt speed and swappable drives to server closets, server rooms, or colocation center backup capabilities.
On Stage: handles all the storage and peripheral connectivity needs "front of house" pros require for live performances.
On Set: easily fits into mobile DIT carts to capture multi-stream, hi-res footage at full framerate while daisy-chaining up to five additional Thunderbolt devices.
In Studio: expands storage and connectivity options of fixed racks.
At Home: great for installers creating a high-performance home entertainment server closet.
Do It U.2 It
A hallmark of OWC FLEX technology is the ability to use U.2 NVMe SSDs, as well as the OWC ecosystem of U.2 drives and adapters. U.2 NVMe drives are specifically designed to maximize the PCIe bus and when combined with Thunderbolt, you'll blast past fast with real-world transfer speeds of up to 2750 MB/s. Whether you use your rackmount setup to complete massive backups faster, stream content during a live performance, edit large format video, or run high transactional and complex calculation applications, you can do it U.2 to it with the OWC Flex 1U4.
A Complete Swap and Share Ecosystem
The OWC Flex 1U4 goes with the flow when needing to move data outside or beyond the local network. With the OWC U.2 ecosystem, moving and sharing data is fast and easy. Swap out and ship a project from field to post in video production workflows. Move backup data to an offline colocation for backup workflows. The combination of OWC Flex 1U4 and the OWC U.2 ecosystem opens a new dimension to data transfer possibilities.
OWC U2 ShuttleOne: Convert an NVMe M.2 "blade" style SSD into a swappable 2.5" U.2 SSD with the peace of mind that your drive. and its content, are protected by the full metal, heat dissipating adapter.
OWC U2 Shuttle: Combine four NVMe M.2 SSDs into a 3.5" U.2 carrier shuttle to create a swappable, massive capacity RAID solution.
OWC Helios 3S with Interchange System: Create an external Thunderbolt powered set to post U.2 solution that safeguards your data while lowering shipping costs.
OWC Mercury Pro U.2 Dual: Put blazing fast Thunderbolt powered storage and backup on a desktop with a compact two bay footprint that can use U2 ShuttleOne and U2 Shuttles.
OWC ThunderBay Flex 8: Take control of your media workflow with a 3-in-1 Thunderbolt storage, docking, and PCIe expansion desktop solution. Easily swaps U2 ShuttleOne and U2 Shuttles to/from the Flex 1U4.
Ready to Rack
The Flex 1U4 comes complete with hardware for mounting into most racks and cabinets.
RAID Made Easy
Harness the full capability of your OWC Flex 1U4 drive array with the included SoftRAID XT, which is powerful and intuitive RAID management software for macOS and Windows. SoftRAID's RAID creation and management technology has been finely tuned to perfection with over 20 years of development to provide rock solid protection of your data and optimize drive performance. It is packed with features like multiple RAID options, validation and verification of drives, and predictive disk failure with SoftRAID Monitor.
SoftRAID provides a level of storage performance that you simply can't get with hardware RAID and is ideal for anyone who needs to safely store and backup massive amounts of data, including educational institutions, government agencies, businesses, content creators, and M&E professionals. If you need even more power and flexibility, you can upgrade to SoftRAID Pro to spread volumes over two or more disk enclosures.
Certified for Demanding Use
OWC understands having confidence in gear reliability is paramount to creative professionals. That's why OWC Flex 1U4 solutions go through a multi-step performance certification prior to shipping. This ensures they arrive operating properly and immediately ready for demanding use.
Secure Your Connections
Unexpected disconnects during file transfers or a work session can be devastating. The OWC ClingOn, sold separately, helps reduces and eliminate cable strain on the OWC Flex 1U4's Thunderbolt connection ports.
Display Support
Display Support by Port
Power Delivery
Drive Bays
UPC: 810100980221
In the Box
- OWC 32TB Flex 1U4 4-Bay Thunderbolt 3 Storage Array (3 x 8TB HDDs + 4 x 2TB SSDs)
- Thunderbolt Cable (2.3' / 0.7m)
- Rackmounting Hardware for 18-26" Racks and Cabinets
- SoftRAID Software Bundle
- SoftRAID XT User Guide
Table of Contents
- Description
- Rack Up Workflow Flexibility
- Future Ready
- Ideal for Rackmounting Environments
- Do It U.2 It
- A Complete Swap and Share Ecosystem
- Ready to Rack
- RAID Made Easy
- Certified for Demanding Use
- Secure Your Connections
- Display Support
- Display Support by Port
- Power Delivery
- Drive Bays
OWC Flex 1U4 External HDD/SSD Specs
Drives
| Storage Capacity | 32 TB |
| Included Drives | 3 x 8 TB 3.5" HDD + 4 x 2 TB SSD |
| Cache Memory per Drive | 256 MB |
| Initial RAID Configuration | None |
| Rotational Speed | 7200 rpm |
General
| Number of Bays | 4 x 2.5"/3.5" |

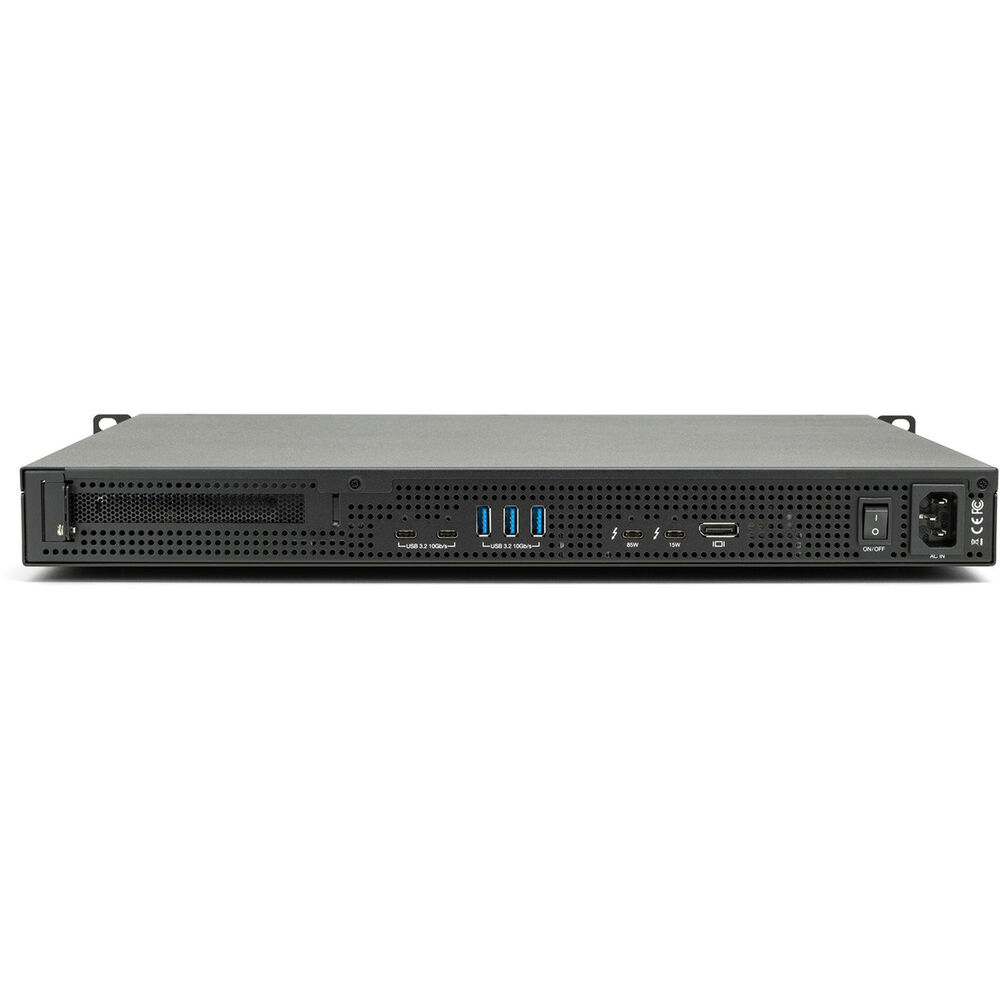

| I/O | 2 x USB-C (Thunderbolt 3 (40 Gb/s)) 2 x USB-C (USB 3.1/3.2 Gen 2 (10 Gb/s)) 3 x USB-A (USB 3.1/3.2 Gen 2 (10 Gb/s)) 1 x DisplayPort (DisplayPort 1.4) |
| Compatible Drive Interface | SAS (Unspecified Version), SATA (Unspecified Version), NVMe, U.2 |
| Form Factor | Rackmount (1 RU) |
| RAID | Yes |
| Hot-Swap Support | Yes |
| PCI Expansion | 1 x PCIe 3.0 x16 (x4 Electrical) |
| Supported PCIe Form Factor | Low-Profile, Half-Length |
| Transfer Rates | 5000 MB/s |
| UASP Support | No |
Software
| OS Compatibility | macOS 12 macOS 11 macOS 10.15 *As of April, 2022: Check with manufacturer for the most up-to-date compatibility |
Security
| Encryption | None |
| Security Features | None |
Electrical
| AC Input Power | 90 to 264 VAC, 50 / 60 Hz at 1.8 to 3.5 A |
| Power Source | AC Adapter |
| PSU Wattage | 1 x 300 W |
Environmental
| Operating Temperature | 42 to 67°F / 10 to 35°C |
| Operating Humidity | 8 to 90% (Non-Condensing) |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Storage Humidity | 5 to 95% (Non-Condensing) |
| Certifications | BSMI, CE, FCC, RCM, VCCI *as per Manufacturer |
Physical
| Cooling | 3 x Fans |
| Cable Length | 2.3' / 0.7 m |
| Dimensions | 18 x 16.9 x 1.7" / 45.6 x 43 x 4.4 cm |
| Weight | 16.3 lb / 7.4 kg |
OWC Flex 1U4 External HDD/SSD Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 726135.9 |
| 3-5 | ₹ 718726.35 |
| 5-10 | ₹ 703907.25 |
| 10+ | ₹ 689088.15 |
Bulk discount will be automatically applied during checkout based on quantity.
