Description
OWC miniStack STX External HDD Overview
- 1Description
- 2Compatibility
- 3Mini Sized, Mammoth Possibilities
- 4Xpands Notebooks, Tablets, and More
- 5The Dual Drive Dynamo
- 6Edit, Save, and Access Like a Pro
- 7Easily Monitor and Protect Your Data
- 8Move Between Mac and Windows
- 9A Resolutionary Idea
- 10Single and Dual Display Support
- 11Xpand Your Sonic Journey
- 12Xpand Your Connections
- 13Xtend your Investment
- 14Store from Minutes to Millions
- 15Keeps the Power Flowing
- 16Secure Your Connections
- 17Certified for Demanding Use
- 18OWC, Trusted by Pros & Enthusiasts the World Over
By Photo's
John-Paul Palescandolo
Expand the utility of your Thunderbolt 4 device and streamline your workflow with the 22TB miniStack STX & Thunderbolt Hub Xpansion from OWC / Other World Computing. This model combines a 2TB PCIe 4.0 x4 M.2 2280 SSD, which is designed for low latency instant access operations that include gaming, as well as photo, video, and audio editing, with a 22TB 7200 rpm SATA 3.5" hard drive, which is well suited for large data storage needs and everyday tasks, such as backups, photos, music, and documents. Both the NVMe PCIe M.2 2280 slot and 3.5"/2.5" drive bay are user accessible. No matter what you're doing, the miniStack is there to help you store large files and connect high-powered devices so you can work efficiently.
The miniStack connects to your host system using a Thunderbolt 4 port that provides up to 96W of Power Delivery, while three additional Thunderbolt 4 ports provide 15W of power and may be used to connect additional peripherals, including keyboards, mice, and up to two displays. These three ports may also be used to create a daisy chain, with up to five Thunderbolt and three USB devices on each, for a total of eight device per chain. Designed to work in various environments, the miniStack STX supports multiple platforms including macOS 10.14 to 13, Windows 10 (32-/64-bit), Windows 11, Linux, iPadOS 14 and 15, Android 11.x to 13.x, and Chrome.
Please note that this configuration requires a Thunderbolt 4 connection with your host system.
Compatibility
- macOS 11.1 or later is required for Thunderbolt hosts, while macOS 10.14.6 is required for USB hosts
- Actual display support depends upon the host. Please review the display specifications for your specific host system to determine the maximum supported resolution, refresh rate, color depth, and number of external displays over Thunderbolt or USB
- NVMe SSD usage requires a Thunderbolt 4 host connection with a compatible system running macOS 11.x or later
- USB host connectivity provides SATA drive use only and limits additional miniStack STX ports to USB connectivity only
- Thunderbolt and Thunderbolt 2 hosts are supported via a USB-A connection, which requires a USB-C to USB-A adapter (sold separately). Thunderbolt and Thunderbolt 2 hosts are not otherwise supported and USB-A hosts do not support displays or power delivery

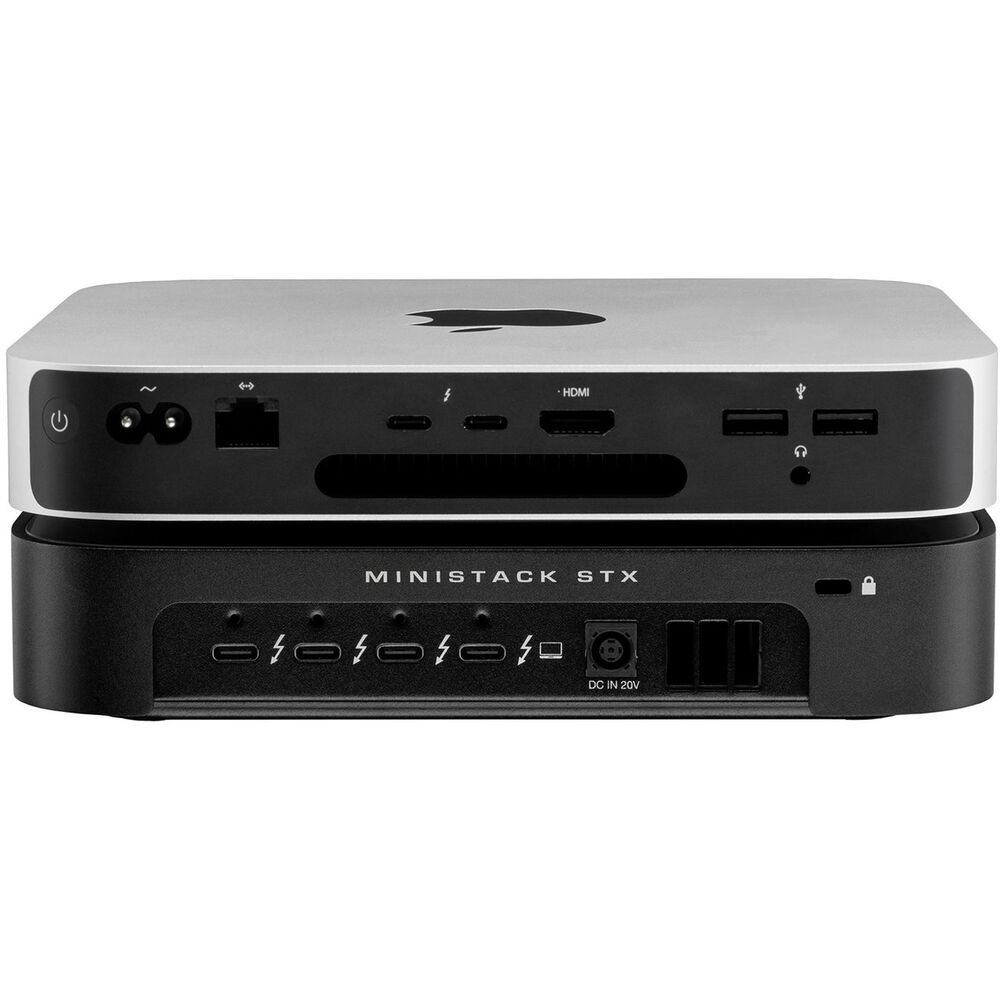

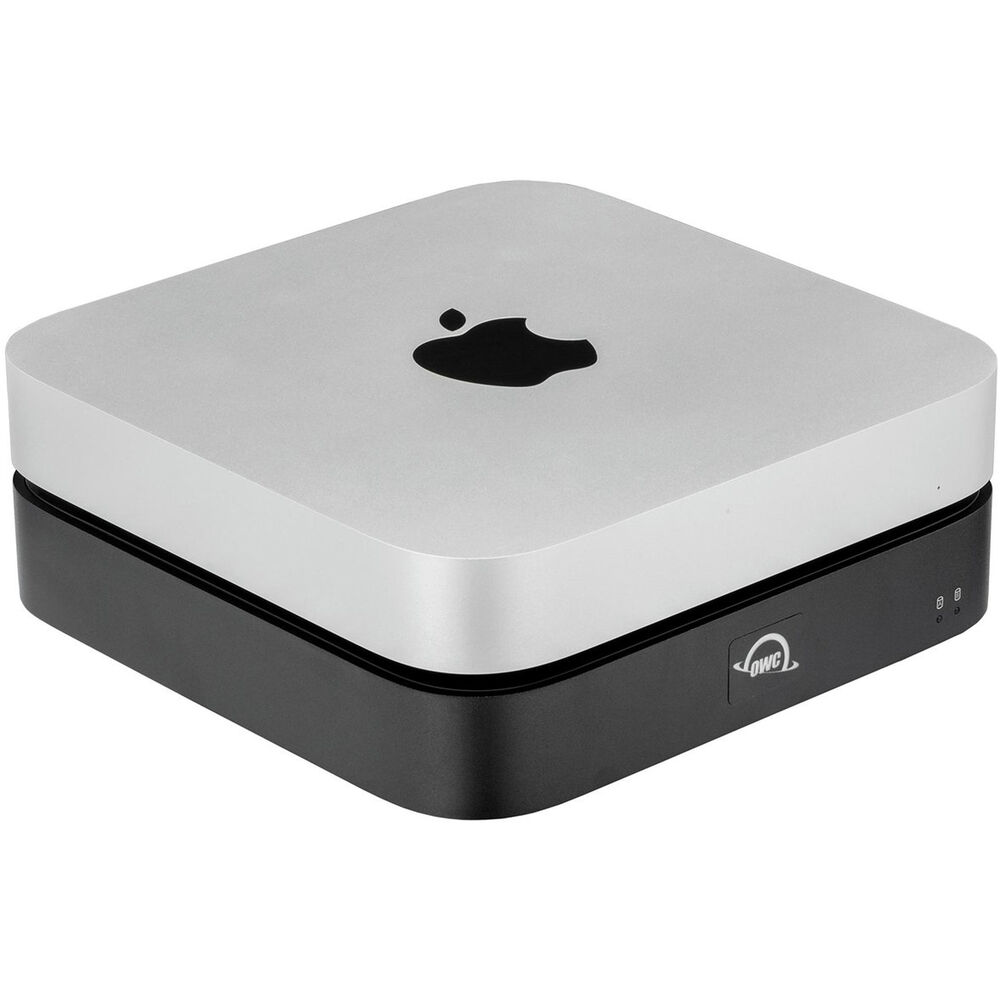

Mini Sized, Mammoth Possibilities
The miniStack and the Mac mini have been the perfect pair since 2005. Now featuring Storage and Thunderbolt Xpansion, the miniStack STX continues its legacy as a top sidekick that the Mac mini can have.
With a universal 3.5"/2.5" SATA HDD/SSD bay and an NVMe M.2 PCIe 4.0 x4 SSD slot, you can expand your mini's storage capacity to gigantic proportions. Three Thunderbolt 4 (USB-C) ports enable you to connect to millions of Thunderbolt, USB, and future USB4 drives, displays, A/V mixers, cameras, tablets, and desktop accessories like a keyboard, card reader, or mouse. The possibilities of how you can use your Mac mini is now only limited to your imagination.
With a universal 3.5"/2.5" SATA HDD/SSD bay and an NVMe M.2 PCIe 4.0 x4 SSD slot, you can expand your mini's storage capacity to gigantic proportions. Three Thunderbolt 4 (USB-C) ports enable you to connect to millions of Thunderbolt, USB, and future USB4 drives, displays, A/V mixers, cameras, tablets, and desktop accessories like a keyboard, card reader, or mouse. The possibilities of how you can use your Mac mini is now only limited to your imagination.
Xpands Notebooks, Tablets, and More
While sized identically to the Mac mini, the miniStack STX is also a sleek, complementary companion for MacBook and PC notebook and desktop machines, iPads, and Chromebooks. While highly powerful, these machines are often limited in the number and variety of ports they offer. The miniStack STX solves that expansion limitation with a new world of increased connectivity and storage capacity.

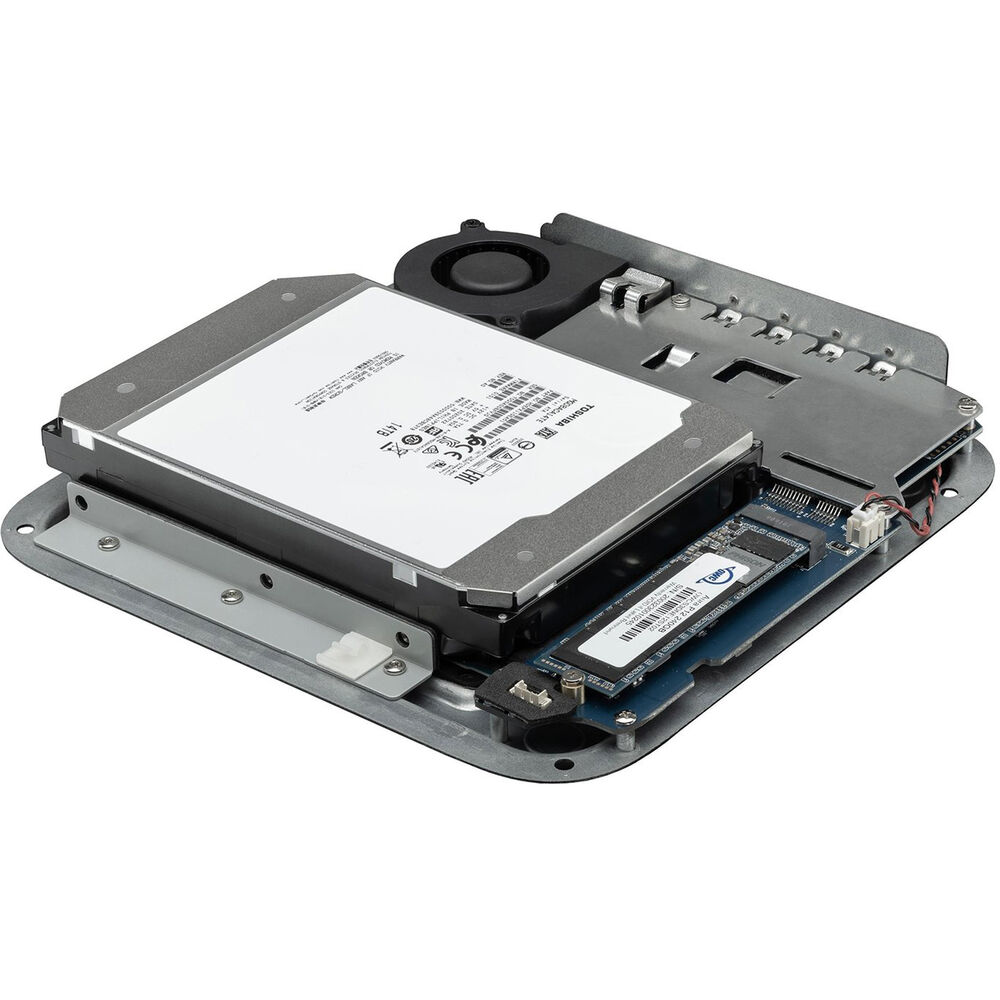

The Dual Drive Dynamo
Just like superheroes have an alter ego, so too does the miniStack STX. The universal SATA drive bay holds a hard disk drive or SSD for upstanding data storage performance with big capacity. When you need to support bandwidth-intensive operations, the NVMe M.2 SSD slot reveals miniStack STX's ferocious power. NVMe was designed to deliver the speed potential of modern flash drive technology by using a direct path to a computer's processor over PCIe. As a result, you can enjoy near instant access performance with the miniStack STX.
Edit, Save, and Access Like a Pro
With multiple drive configurations available, you can experience data transfer speeds of up to 770 MB/s. Move 5GB of GoPro footage in about 6 seconds, transfer thousands of photos of that priceless event in mere seconds, and use the SATA drive for Time Machine or File History backups while working off the NVMe drive. With heavyweight performance like this, the miniStack STX is great for multi-stream compressed 4K video editing, photography, audio, virtual machines, and everyday data tasks.
Easily Monitor and Protect Your Data
For even more power and security, add OWC's SoftRAID software to your miniStack STX and create a RAID 1 to automatically maintain identical copies of all your data on each drive. For over 25 years, SoftRAID has been a fully featured and powerful software RAID solution available for Mac and Windows. It starts protecting your data even before you start saving by validating the STX drives are safe for data storage. In the improbable event that you experience a disk issue, your data is still complete and accessible on the miniStack STX's other drive. SoftRAID then constantly monitors your disks with a combination of S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) attributes along with its own I/O statistics. This deep dive disk health analysis identifies potential problems so you can take preventive action. SoftRAID is available for both Mac and PC making it possible to share the miniStack STX between computers.
Move Between Mac and Windows
Transferring data between Macs and Windows PCs has become easier, but can be extremely time consuming using cloud or email transfers. Now you can do it directly with external drives and take advantage of crazy fast speeds to transfer huge amounts of data in no time at all thanks to OWC's MacDrive. This seamless Windows software runs in the background, so there's nothing to launch or learn. Simply unplug your HFS+ formatted drive from your Mac or PC and move it to your other computer. Not only do you have instant read access, but full write access. MacDrive also includes powerful features that enable you to create and partition and repair basic drive issues.
- Compatible: Works with all types of media including hard drives, SSDs, CD/DVD, etc.
- Access: Read and write Mac disks direct from Windows Explorer
- Manage: Format, partition, and delete Mac disks on your PC
- Repair: Built-in tools can safely fix basic drive issues
- Backups: Browse through Time Machine backups as well as copy those files and folders to your PC
A Resolutionary Idea
Whether your computer or tablet is sporting the latest technology or is a few years loved, the OWC miniStack STX gives you multiple options to expand your visual horizons, with single and dual display support, including:
- One 8K display at 60 Hz
- One 5K display at 60 Hz
- One 4K Display at 120 Hz
- Two 4K displays at 60 Hz
- One 4K display at 60 Hz
- One 4K display at 30 Hz
Single and Dual Display Support
- Apple Silicon Mac (M1 or M2) - 4K at 30 Hz, 4K at 60 Hz, 5K at 60 Hz (Apple Studio Display or LG Ultrafine 5K)
- Apple Silicon Mac (M1 Pro, M1 Max, M1 Ultra, M2 Pro, or M2 Max) - 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz, 5K at 60 Hz (Apple Studio Display or LG Ultrafine 5K), Dual 5K at 60 Hz (Apple Studio Display), 6K at 60 Hz (Apple Pro XDR), Dual 6K at 60 Hz (Apple Pro XDR)
- Intel Mac with Thunderbolt 3 - 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz, 5K at 60 Hz (Apple Studio Display or LG Ultrafine 5K), Dual 5K at 60 Hz (Apple Studio Display), 6K at 60 Hz (Apple Pro XDR)
- iPad Pro or iPad Air with Thunderbolt - 4K at 30 Hz, 4K at 60 Hz, 6K at 60 Hz (Apple Pro XDR)
- iPad Pro with USB-C - 4K at 30 Hz, 4K at 60 Hz, 5K at 60 Hz (Apple Studio Display or LG Ultrafine 5K)
- iPad Air with USB-C - 4K at 60 Hz
- Chromebook - 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz
- Windows with Thunderbolt 4 - 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz, 6K at 60 Hz (Apple Pro XDR), 8K at 60 Hz
- Windows with Thunderbolt 3/USB4 - 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz
- Windows with 10 Gb/s USB-C (with DisplayPort) - 4K at 30 Hz, 4K at 60 Hz
- Windows with 5 Gb/s USB-C (with DisplayPort) - 4K at 30 Hz
- Windows Tablet - 4K at 30 Hz
Xpand Your Sonic Journey
Building your music setup can be daunting. With two configurable drives in the OWC miniStack STX, it's easy to create a storage powerhouse for recording and playback of essential tracks in real-time. You can even store your entire loop and sample libraries on the NVMe SSD for in-a-flash use with near zero latency.

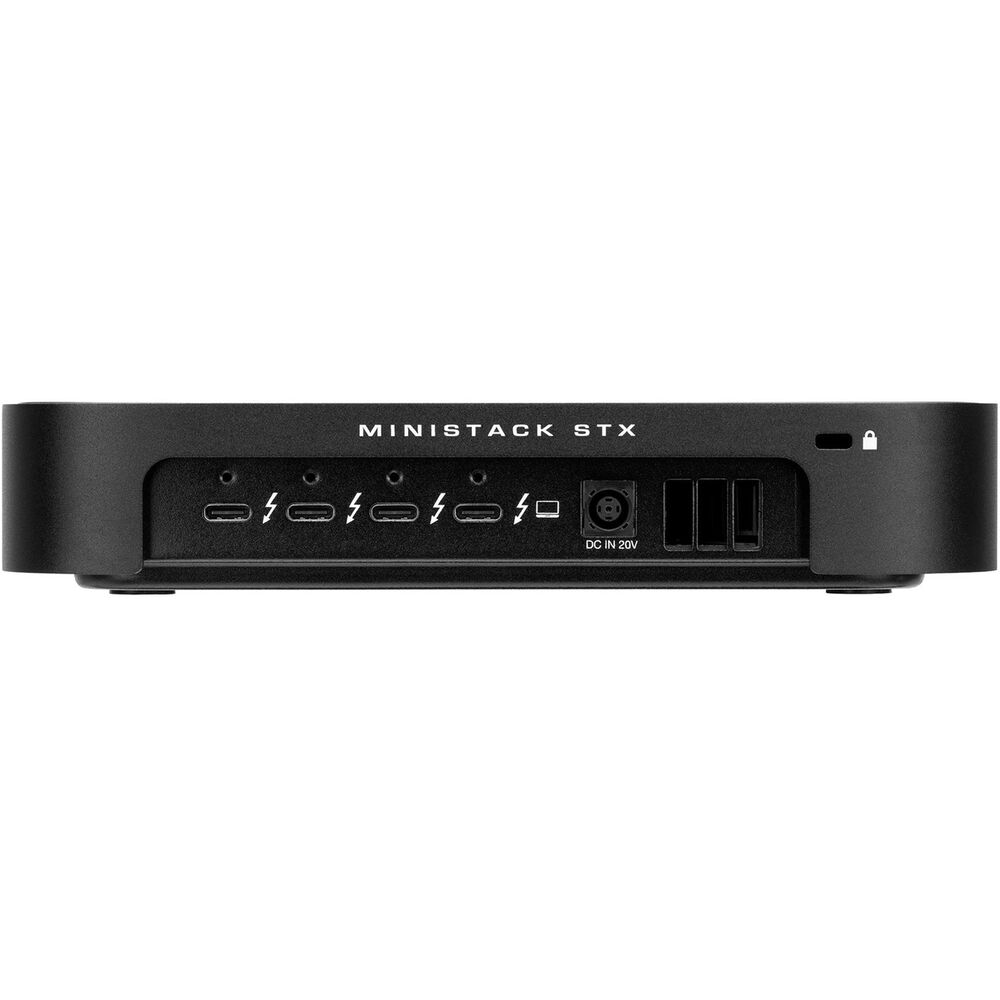

Xpand Your Connections
You'll gain a newfound freedom by being able to connect to nearly any past, present, or future device and accessory via three Thunderbolt 4 (USB-C) ports. Just like the miniStack STX's innovative storage capability, these three ports have a second ability. They reinvent the daisy chain by allowing you to create three independent chains with up to five bus-powered Thunderbolt devices with a USB device on the end of each chain for 8 devices total. You can now also remove devices from one chain without affecting the other chain or chains.
Xtend your Investment
If you own a 2018 Intel Mac mini or the latest Apple silicon version, the fact that the internal factory drive can't be upgraded is no longer a reason to sell your beloved little powerhouse. The miniStack STX maximizes your mini's investment with a mighty capacity punch for a fraction of the time and money you would spend in buying and setting up a new machine. You're not left behind if you own a Mac, PC, or device equipped with USB-A only. With a USB-C to USB-A adapter cable (sold separately), you can utilize the miniStack STX's SATA drive bay to transfer data to/from your machine plus infuse your trusty setup with additional device connectivity.
Store from Minutes to Millions
All the features and "technospeak" of an external drive don't mean a thing if you don't know how much of a particular file type it can hold. For every 1TB of your OWC drive capacity, you can store up to any of the following:
- 250,000 photos
- 250,000 standard quality songs
- 38,000 high quality songs
- 200 high-definition movies
- 41.6 hours of GoPro 4K footage
- 4.3 million MS Office documents
- 24+ PS4/Xbox games
Keeps the Power Flowing
Whether you're taking a short break or are done for the day, the miniStack STX keeps you powering ahead. No matter if your machine or STX goes into sleep mode, the STX's Thunderbolt ports continue to power and/or charge connected devices. Your notebook will stay charged and ready too, with 96W of power through its Thunderbolt or USB-C connection.
Secure Your Connections
Unexpected disconnects during file transfers or a work session can be devastating. The OWC ClingOn (sold separately) easily reduces�if not eliminates�cable strain on the miniStack STX Thunderbolt connection ports.
Certified for Demanding Use
OWC understands having confidence in gear reliability is paramount to creative professionals. That's why the miniStack STX goes through a multi-step performance certification prior to shipping. This ensures it arrives operating properly and immediately ready for your demanding use.
OWC, Trusted by Pros & Enthusiasts the World Over
OWC builds their hardware to the highest standards of reliability and performance. Because 100% reliability is always the goal, they rigorously quality test and back the miniStack STX with 24/7 global customer support.
UPC: 810100982294
In the Box
- OWC 22TB miniStack STX & Thunderbolt Hub Xpansion (2TB SSD + 20TB HDD)
- Thunderbolt 4 / USB-C Cable (11.8" / 0.3m)
- OWC 150W Power Supply for the Thunderbolt Hub, Thunderbolt Dock, and miniStack STX
- Limited 3-Year Manufacturer Warranty (with 24/7 Customer Support)
Table of Contents
- Description
- Compatibility
- Mini Sized, Mammoth Possibilities
- Xpands Notebooks, Tablets, and More
- The Dual Drive Dynamo
- Edit, Save, and Access Like a Pro
- Easily Monitor and Protect Your Data
- Move Between Mac and Windows
- A Resolutionary Idea
- Single and Dual Display Support
- Xpand Your Sonic Journey
- Xpand Your Connections
- Xtend your Investment
- Store from Minutes to Millions
- Keeps the Power Flowing
- Secure Your Connections
- Certified for Demanding Use
- OWC, Trusted by Pros & Enthusiasts the World Over
OWC miniStack STX External HDD Specs
Key Specs
| Host Connection |
1 x USB-C (Thunderbolt 4)
|
| Inputs/Outputs |
3 x USB-C (Thunderbolt 4)
|
| Storage Capacity |
Total: 22 TB
1 x 20 TB SATA III (6 Gb/s) 3.5" HDD (7200 rpm) 1 x 2 TB PCIe 4.0 x4 M.2 2280 SSD |
| Read Speed |
Maximum: 770 MB/s
|
| Power Source |
Included AC Adapter
|
| Inputs/Outputs |
3 x USB-C (Thunderbolt 4)
|
| Storage Capacity |
Total: 22 TB
1 x 20 TB SATA III (6 Gb/s) 3.5" HDD (7200 rpm) 1 x 2 TB PCIe 4.0 x4 M.2 2280 SSD |
| Read Speed |
Maximum: 770 MB/s
|
| Write Speed |
Maximum: 770 MB/s
|
| Default OS Support |
Windows & macOS
|
Reliability / Data Integrity
| Encryption |
No
|
External Enclosure
| Security Features |
Kensington Security Slot
|
| Material |
Aluminum
|
| Cooling System |
Fan/Passive Combo
|
| Drives Supported |
1 x 2.5"/3.5"
1 x M.2 |
Electrical
| Power Source |
Included AC Adapter
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Environmental
| Operating Temperature |
50 to 95°F / 10 to 35°C
|
| Storage Temperature |
-40 to 149°F / -40 to 65°C
|
| Operating Humidity |
