Description

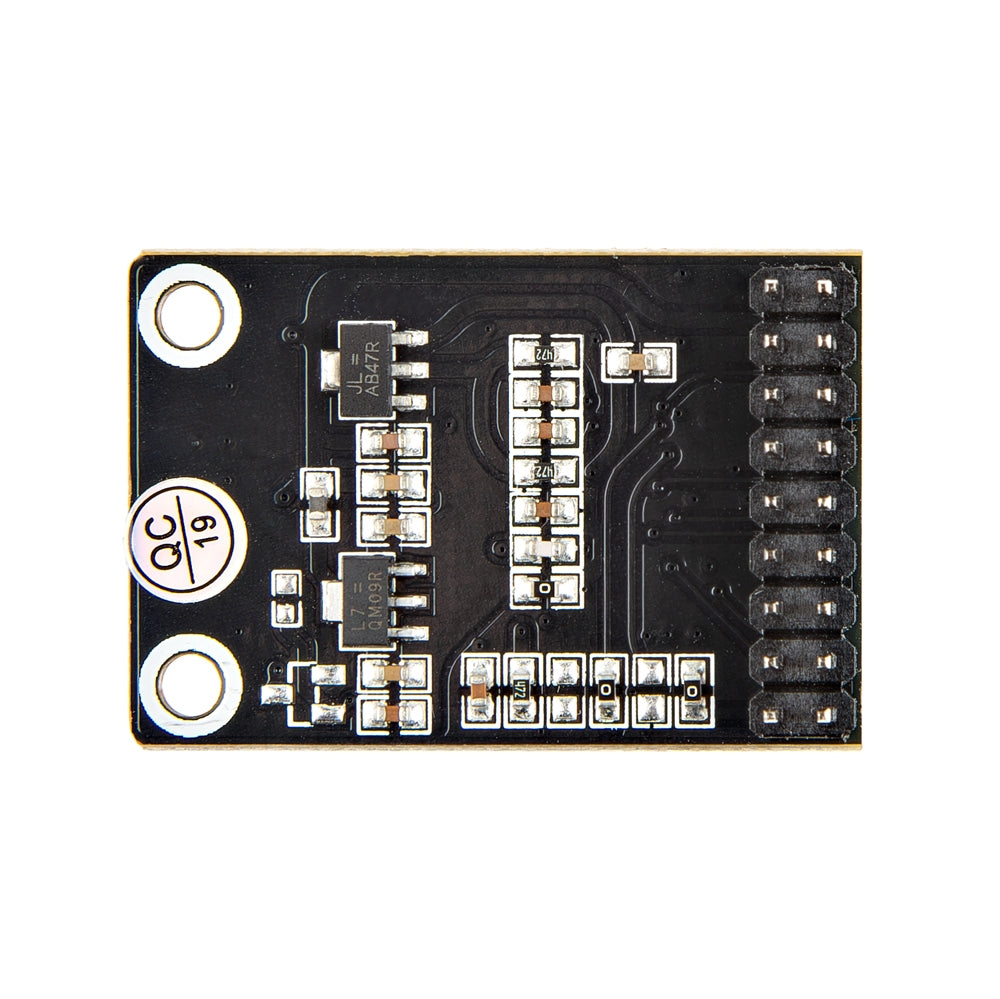

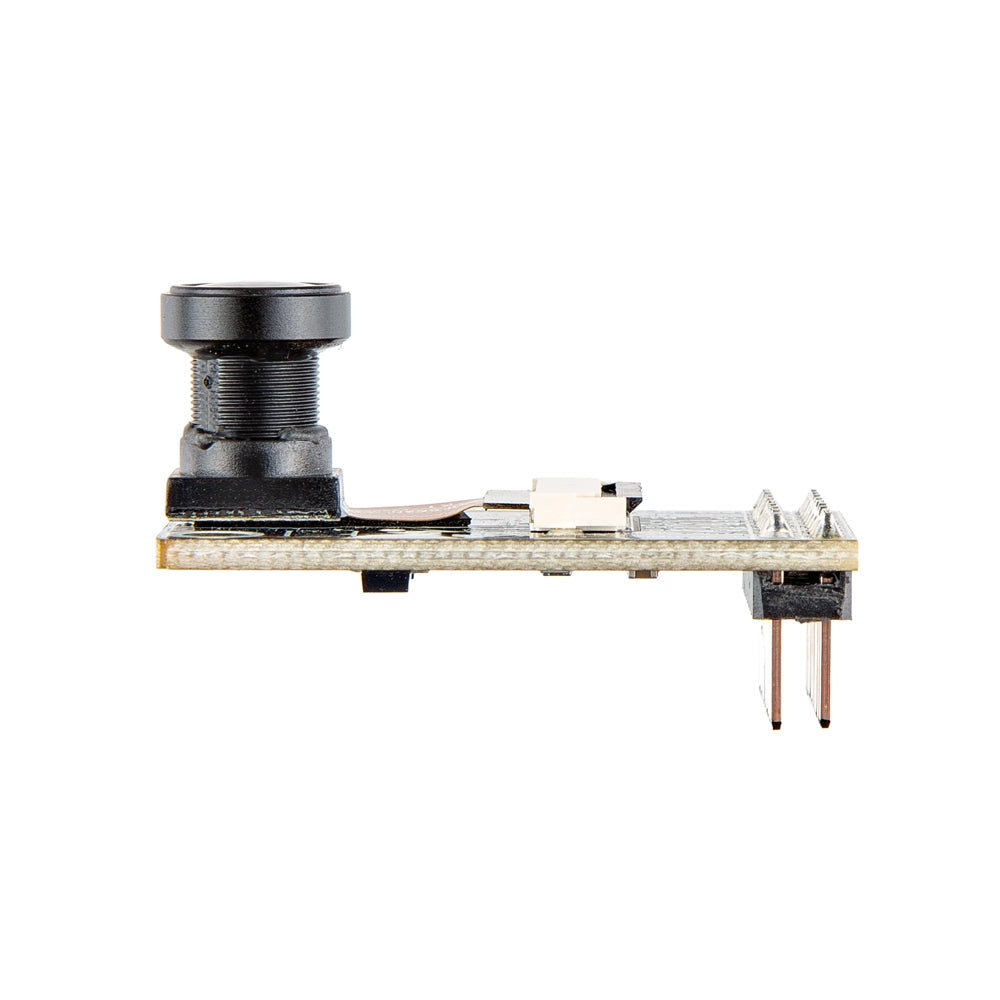

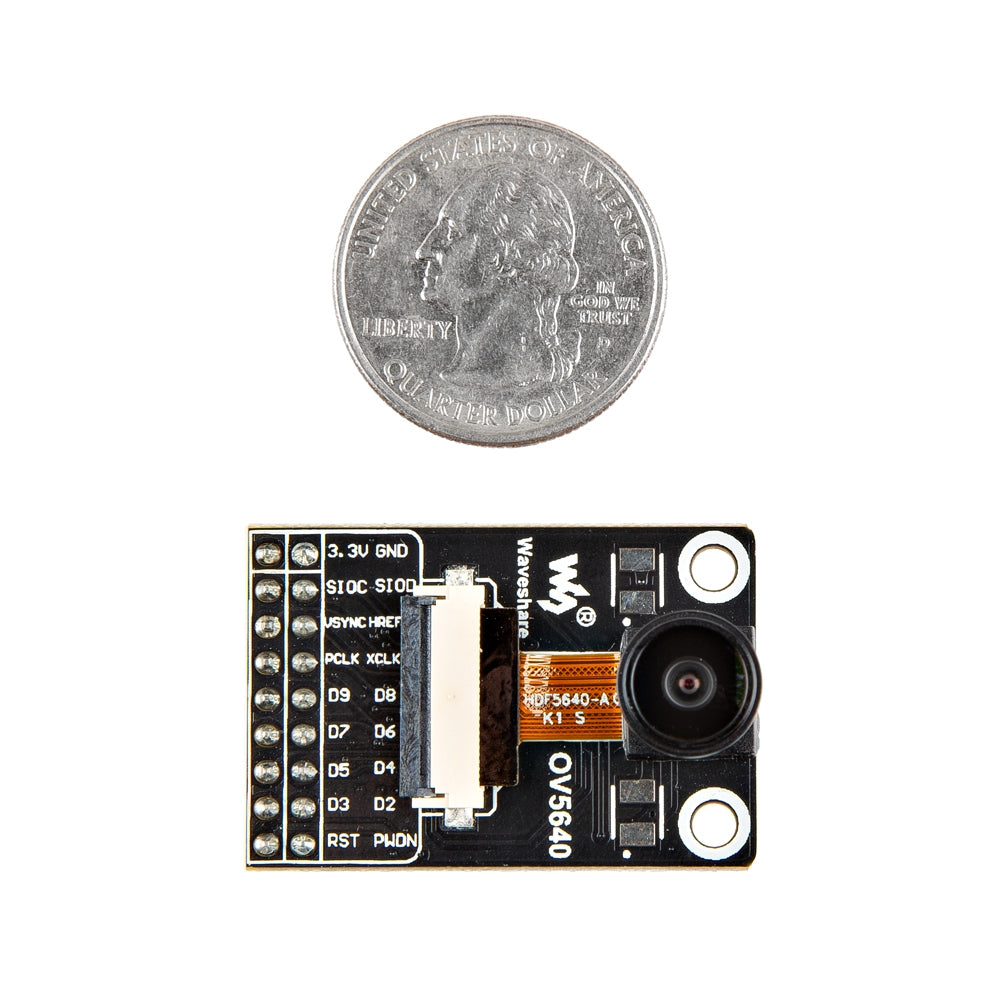

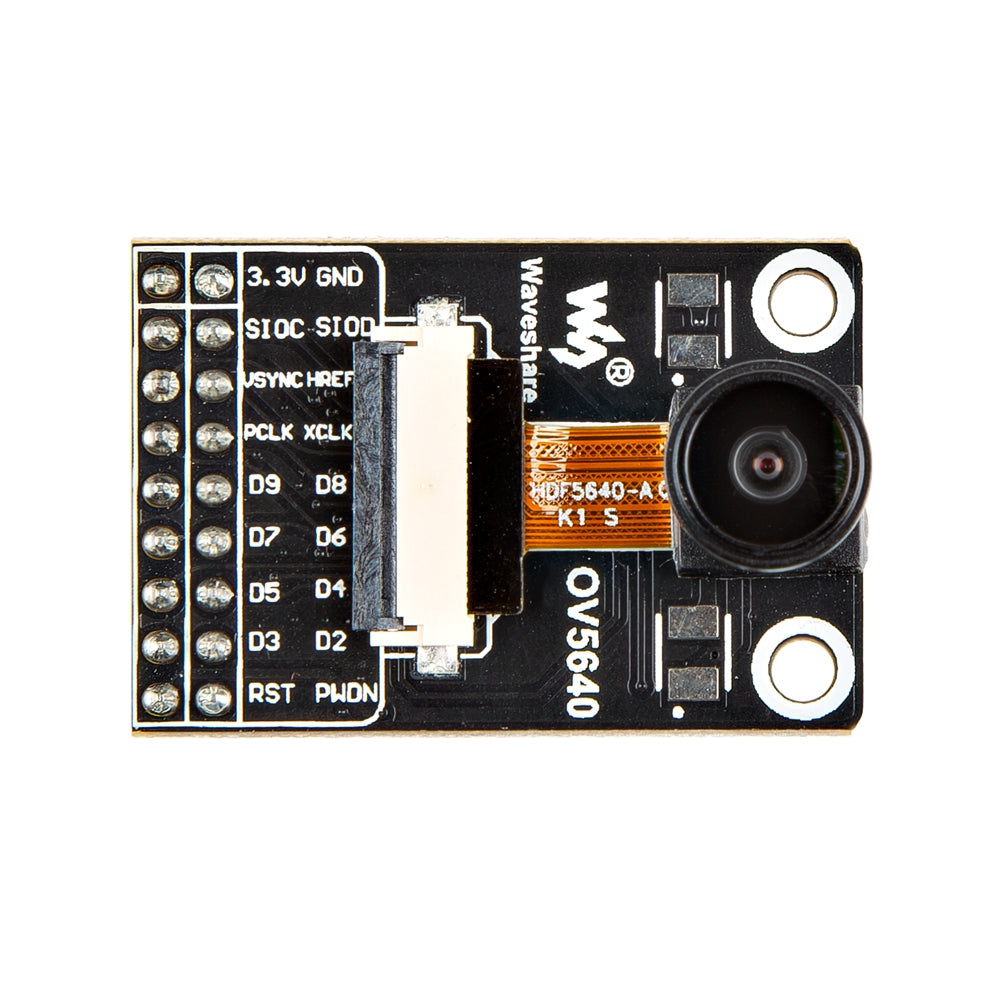

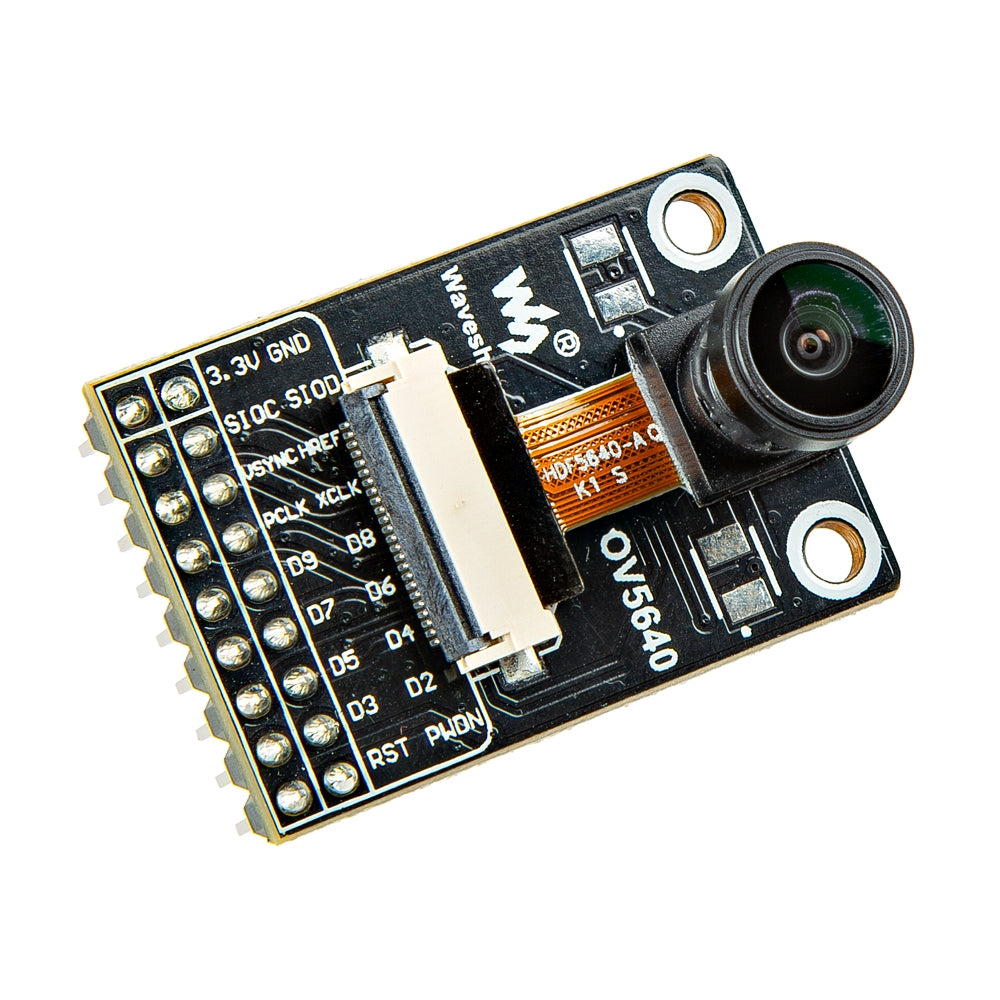

Camera Module board based on the OV5640 5MP sensor. This camera has all the support circuitry needed to interface with it and a full set of features and functions.
Features & Specs
- Pixels: 5 megapixel
- Resolution: 2592x1944
- Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
- Lens:
- CCD size: 1/4inch
- Aperture (F): 2.8
- Focal Length: 2.8mm
- Diagonal: 63 degree
- Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
- Operating Voltage: 3.3V
- Control Interface: SCCB (I2C compatible)
- Data Interface: DVP 8-bit
- Dimension: 35.70mm × 23.90mm
Features & Specs
- Pixels: 5 megapixel
- Resolution: 2592x1944
- Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
- Lens:
- CCD size: 1/4inch
- Aperture (F): 2.8
- Focal Length: 2.8mm
- Diagonal: 63 degree
- Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
- Operating Voltage: 3.3V
- Control Interface: SCCB (I2C compatible)
- Data Interface: DVP 8-bit
- Dimension: 35.70mm × 23.90mm
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3317.3 |
| 3-5 | ₹ 3283.45 |
| 5-10 | ₹ 3215.75 |
| 10+ | ₹ 3148.05 |
Bulk discount will be automatically applied during checkout based on quantity.
