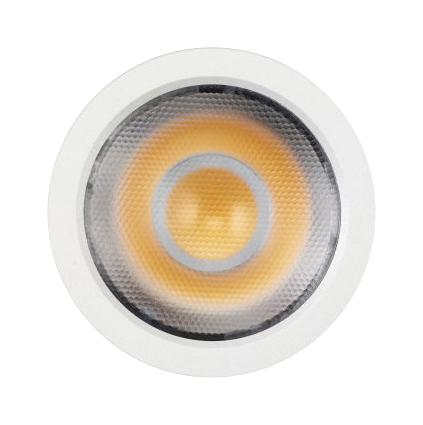

PrevaLED COIN 35 COB G2 LED module with integrated optics and heat sink. Applications include retail, shop, restaurant, hospitality, high-end residential. Suitable for indoor applications. Connecting multiple modules in parallel on one LED driver is not permitted and connecting multiple modules in series on one LED driver is not recommended.
- Colour consistency of < 2 SDCM, IP20 protection
- Compact form factor compatible with conventional MR11 lamps
- Precise optical control and free from multi-shadow issue
- 0.18A nominal current, 32.6V nominal voltage, 5.9W on-mode power (GMS)
- 106lm/W luminous efficacy, 4000K light colour (designation)
- 1400 peak luminous intensity (GMS)
- 600lm useful luminous flux (Φuse) (GMS)
- Height is 40mm, length is 34mm, grey heatsink, 75°C performance temp (IEC 62717)
- Standards-IEC 62471, EN 60598-1, EN 60529, EN 55015, EN 61547, EN62031 IEC 605981
- Ambient temperature range from -25 to +40°C
Footnotes Do not use in sealed fixtures. Avoid covering the lens with dust or any object.
Other details
| Brand |
OSRAM |
| Part Number |
PL-CN35-COB-600-940-36D-G2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
