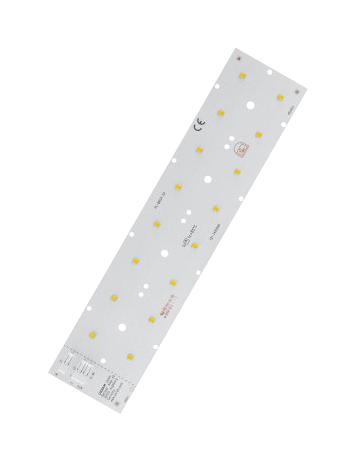

PrevaLED BRICK HP LED module for industry and outdoor applications. It is a high-performance module for outdoor and street lighting. Compatible with third party optics, e.g. from LEDIL. Typical applications include outdoor application, street lighting, industry, highbay lighting and area lighting.
- Dimensions aligned with Zhaga book 15
- NTC for on-module temperature observation
- Average lifetime (L80 B10) up to 100,000 h (temperature up to Tc = 85°C)
- ENEC certified, IP20 protection
- Nominal current of 0.7A, nominal voltage of 45V
- Luminous efficacy is 173lm/W
- Colour rendering index is Ra >70
- Light LED colour is white, number of LEDs per module is 16, starting time is < 0.1s
- Dimension (length x width x height) is 485mm x 350mm x 160mm
- Ambient temperature range from -40 to +70°C
Other details
| Brand |
OSRAM |
| Part Number |
PL-BRICK-HP-3800-740-2X8 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
