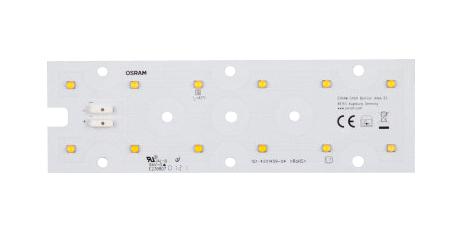

PrevaLED BRICK HP IP G2 LED module for industry and outdoor applications. It has 5 years system guarantee (with OPTOTRONIC control gear). It can be optimally paired with OPTOTRONIC constant current LED drivers. Compatible to optics with IP solution, e.g. Ledil STRADA-IP2x6 series. Areas of applications are area illumination for highbay light for industry and outdoor application, highbay lighting, street and area lighting, outdoor application, street and urban lighting.
- Geometry according to Zhaga Book 19
- Dimensions aligned with Zhaga book 19
- Average lifetime (L80 B10) up to 100,000 h (temperature up to Tc = 85°C)
- IP20 protection
- Nominal current of 0.7A, nominal voltage of 34V, on-mode power of 23.8W
- Energy consumption in on-mode (GMS) is 23.8KWh/1000h, luminous efficacy is 163lm/W
- Correlated colour temperature CCT (GMS) is 3000K, useful luminous flux (Φuse) (GMS) is 3754lm
- Light LED colour is white, number of LEDs per module is 12, starting time is < 0.1s
- Product weight is 40g, height is 8mm, length is 146mm and width is 45mm
- Ambient temperature range from -20 to +70°C
Other details
| Brand |
OSRAM |
| Part Number |
PL-BRICK-HP-2850-730-2X6-IP-G2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
