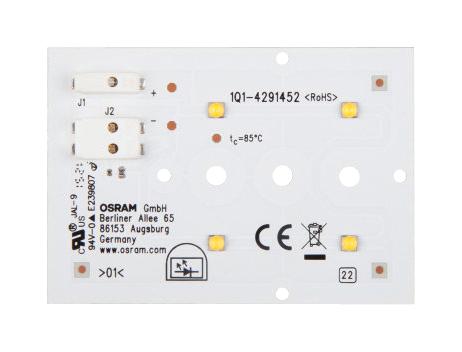

PrevaLED BRICK HP LED module for industry and outdoor applications. It is a high-performance module for outdoor and street lighting. Compatible with third party optics, e.g. from LEDIL. Typical applications include outdoor application, street lighting, industry, highbay lighting and area lighting.
- Dimensions aligned with Zhaga book 15
- NTC for on-module temperature observation
- Average lifetime (L80 B10) up to 100,000 h (temperature up to Tc = 85°C)
- ENEC certified, IP20 protection
- Nominal current of 0.7A, nominal voltage of 11.3V, on-mode power of 8.2W
- Energy consumption in on-mode (GMS) is 8.2KWh/1000h, luminous efficacy is 173lm/W
- Correlated colour temperature CCT (GMS) is 4000K, useful luminous flux (Φuse) (GMS) is 1336lm
- Light LED colour is white, number of LEDs per module is 4, starting time is < 0.1s
- Product weight is 15g, height is 6mm, length is 70mm and width is 50mm
- Ambient temperature range from -40 to +70°C
Other details
| Brand |
OSRAM |
| Part Number |
PL-BRICK-HP-1000-740-2X2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
