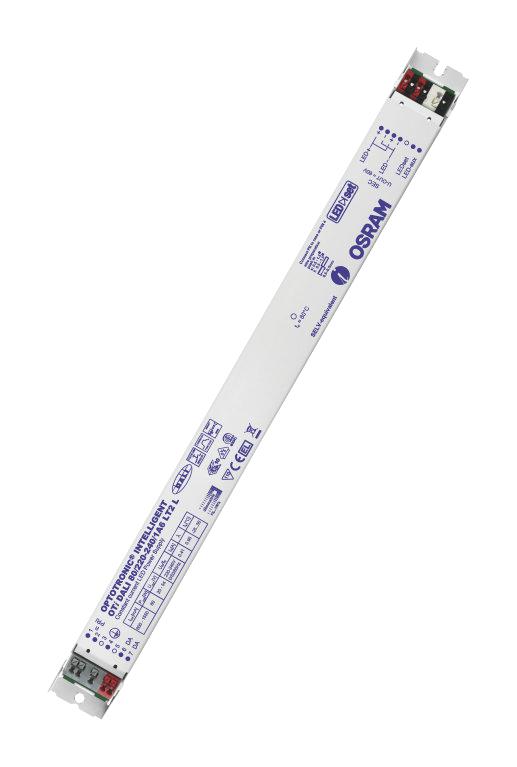

The OPTOTRONIC Intelligent series from Osram, are a family of dimmable DALI LED drivers. They offer high efficiency, reliability and system protection due to thermal management and Smart Control. These compact constant current LED drivers are designed for indoor applications such as corridors and restrooms. This is possible due to their three-level Corridor function. OPTOTRONIC Intelligent LED drivers can also be used with a Touch DIM application controlled by a pushbutton or sensor.
- Line frequency: 0Hz, 50Hz, 60Hz
- Versatile DALI window driver up to 80W due to flexible output characteristic
- Supply voltage range from 220V to 240V
- Available with output current range: up to 2,100mA
- Constant lumen output (CLO)
- Integrated customizable thermal management (Driver Guard)
- DALI-2 certified (Part -101, -102 and -207)
- Flexible current setting (LEDset2)
- Fully programmable via software (DALI Interface)
- Very high efficiency
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
80W
|
| Output Voltage Max:
54V
|
| Output Current:
1.55A
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC Intelligent - DALI LEDset LT2 (SELV) Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OTI-DALI-80/220-240/1A6-LT2-L |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
