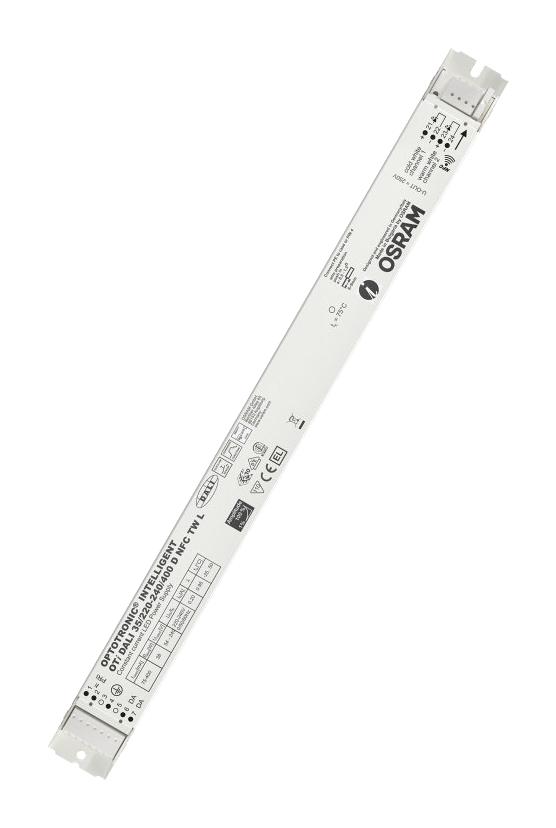

The OSRAM DALI linear driver is a constant current tunable white LED Driver. Ideal for lighting in office, education and industry. Perfect system match with PrevaLED Linear Tunable White. A TW TouchDIM is also integrated which allows dimming and changing of colour temperature without LMS. The driver also combines DT8 and 2xDT6 in one device. With a current range of 75-400mA and wide output voltage range of 45-240V.
- Line frequency: 0Hz, 50Hz, 60Hz
- Versatile DALI window driver up to 75W due to flexible output characteristic
- Supply voltage range from 220V to 240V
- Usable as DT6 (2-channel) or DT8 (Tunable White) driver*
- Available with output current range: up to 700mA
- Constant lumen output (CLO)
- Integrated customizable thermal management (Driver Guard)
- Non-isolated drivers
- 35W power rating
- 75-400mA current range
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
38W
|
| Output Voltage Max:
240V
|
| Output Current:
400mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC Intelligent Tunable White - DALI (Non-Isolated) Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OTI-DALI-35/220-240/400-D-NFC-TW-L |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
