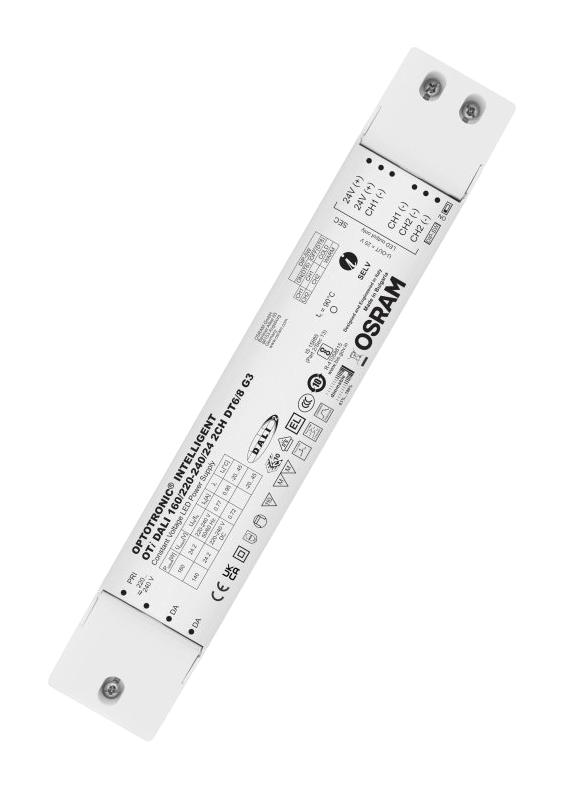

Versatile and easy control for dynamic light. The Osram LED driver is suitable for emergency lighting systems. The output on the multi-channel versions can be shared arbitrarily among the 2 or 4 channels and the PWM frequency > 2KHz minimizes stroboscopic effects.
- Dimmable via touch DIM
- Available as single-channel or multi-channel with DT6 and DT8 in one device
- Dimming range: 0.1�100% (for 50-80-160W) or 1�100 % (for 30W)
- Line frequency: 0Hz, 50Hz, 60Hz
- Intelligent power matching thanks to smart power supply
- Form factor for mounting on the cove or in luminaires
- No stroboscopic effect thanks to patented high PWM frequency management (> 2 KHz)
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- DALI message detection LED module failure
- IP rating: IP20
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
160W
|
| Output Voltage Max:
24V
|
| Output Current:
6.66A
|
| LED Driver Mode:
Constant Voltage
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OTI-DALI-160/220-240/24-2CHDT6/8-G3 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
