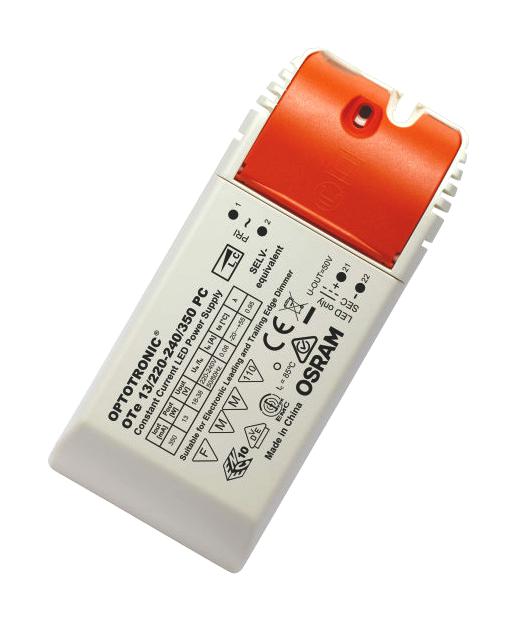

OTE13/220-240/350-PC is a phase-cut OTE, dimmable, compact constant current LED driver power supply. It includes overheating protection, overload protection, short-circuit protection. Areas of application includes optional cable clamp E-style for independent mounting, suitable for indoor installations, suitable for indoor SELV installations. Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3- 2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 approved.
- Dimmable via leading edge/trailing edge
- Type of protection IP20
- Compact housing for mounting in very tight spaces
- Compatible with the most common leading-edge and trailing-edge phase dimmers
- Nominal input voltage range from 220 to 240V, input voltage AC range from 198 to 264V
- Mains frequency is 50/60Hz, 0.95/0.90λ power factor (full load at 230V/min load at 230V)
- 13W nominal output power (at 230V, 50Hz), 84% efficiency in full-load (at 230V, 50Hz)
- 18 to 38V nominal output voltage range (max <48V), push terminal type of connection (output side)
- II protection class, plastic casing material
- Ambient temperature range from -20 to +55°C
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
13W
|
| Output Voltage Max:
38V
|
| Output Current:
350mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC Phase-Cut OTE Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OTE13/220-240/350-PC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
