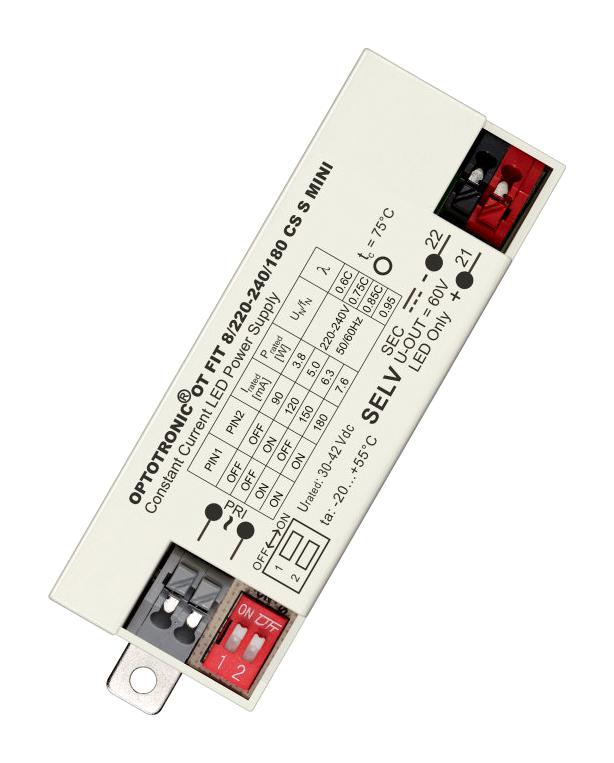

The Osram compact constant current LED driver is non-dimmable, and suitable for indoor SELV installations. A great flexibility at luminaire design is given due to the extra small dimensions thereby the device is suitable for compact luminaires. In addition the product offers a wide operating window 8W-28W and 90 mA - 900 mA as well as an easy current setting via DIP-switches. Reversible over temperature, overload, short-circuit and open-circuit protection. User flexibility with four different output currents from one driver. With an operating temperature of up to 60 °C.
- Supply voltage range from 220V to 240V
- Line frequency: 50Hz, 60Hz
- Line voltage: 198-264V
- According to EN 61347-1, 61347-2-13, 62384
- RI suppression according to CISPR 15
- Line harmonics according to IEC 61000-3-2
- Immunity according to IEC 61547
- Small housing for flexible luminaire designs
- Higher quality of light thanks to < 3% output ripple current
- Operating temperature up to 60°C
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
7.6W
|
| Output Voltage Max:
42V
|
| Output Current:
180mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC FIT CS MINI Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OT-FIT-8/220-240/180-CS-S-MINI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
