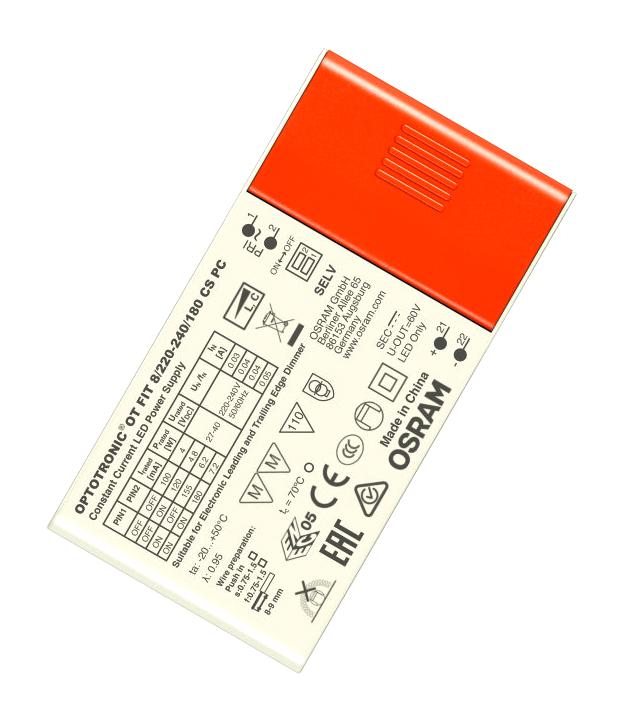

OT-FIT-8/220-240/180-CS-PC-SC is a dimmable, compact constant current LED driver power supply. It includes overheating protection, overload protection, short-circuit protection. Areas of application includes decorative illumination, downlights, flat luminaires, hospitality, living areas, museums, residential buildings, offices, shop lighting, suitable for indoor SELV installations, suitable for luminaires of protection class I and II. Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3- 2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 approved.
- Cable clamp housing for independent mounting
- Dimmable on the leading edge and trailing edge
- Housing for independent installation
- Compatible with the most common leading-edge and trailing-edge phase dimmers
- Flexible current setting (DIPswitch - 2 to 4 currents)
- Flicker-free dimming, higher quality of light due to < 5% output ripple current
- Housing from 80% recycled plastic
- Nominal input voltage range from 220 to 240V, input voltage AC range from 198 to 264V
- Efficiency in full-load is 80% (at 230V, 50Hz), nominal output voltage range from 27 to 40V
- Screw terminal type of connection (output side, input side), plastic casing material
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
7.2W
|
| Output Voltage Max:
40V
|
| Output Current:
180mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC Phase-Cut OT FIT Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OT-FIT-8/220-240/180-CS-PC-SC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
