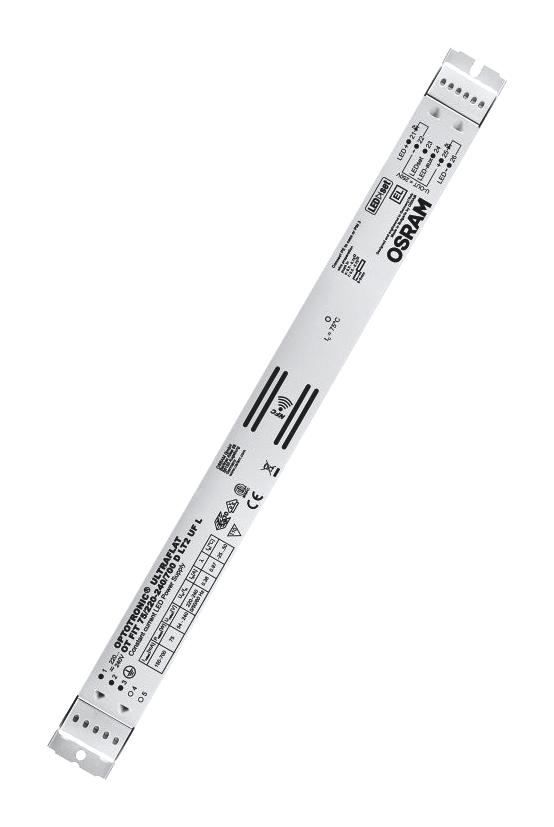

The Osram OPTOTRONIC Fit is designed for office, education and industrial lighting. High efficiency of up to 93% and wide operating windows of up to 700mA pose the highlights of this LED Driver. The current is programmable by NFC and a low ripple contributes to the lighting quality. A height of only 11mm makes this device suitable for cutting edge luminaire design.
- Line frequency: 0Hz, 50Hz, 60Hz
- Versatile window driver up to 75W due to flexible output characteristic
- Supply voltage range from 220V to 240V
- Available with output current range: up to 700mA
- Non-isolated drivers
- Ultra-flat housing (11 mm height) for innovative luminaire designs and applications
- Flexible and future-proof current setting via NFC and LT2
- Lifetime up to 100,000 hours (temperature at Tc = 65°C, max 10% failure rate)
- Higher quality of light thanks to < 1% output ripple current
- Very high efficiency
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
75W
|
| Output Voltage Max:
240V
|
| Output Current:
700mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC FIT D LT2 UF L Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OT-FIT-75/220-240/700-DLT2UFL |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
