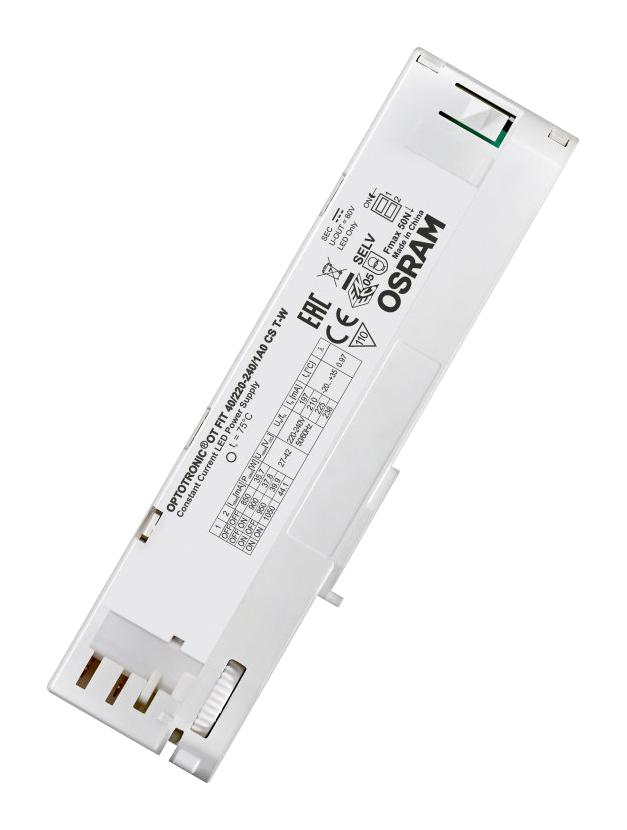

OT-FIT-40/220-240/1A0-CS-T-W is a non dimmable, compact constant current LED driver power supply. It includes overheating protection, overload protection, short-circuit protection. Areas of application includes track lights, shops and hospitality: retail, hotels, restaurants. Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3- 2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 approved.
- Lifetime up to 50,000h (temperature at Tc = 75°C, max. 10% failure rate)
- High quality of light due to low output ripple current
- High flexibility due to four different output currents per type
- Short housing for minimum distance between spotlights
- SELV system
- Nominal input voltage range from 220 to 240V, input voltage AC range from 198 to 264V
- Mains frequency is 50/60Hz, 0.98λ power factor (full load at 230V/50Hz)
- 23 to 44.1W nominal output power range, 88.5% efficiency in full-load (at 230V, 50Hz)
- 27 to 42V nominal output voltage range, push terminal type of connection (output side)
- II protection class, plastic casing material, ambient temperature range from -20 to +35°C
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
44.1W
|
| Output Voltage Max:
42V
|
| Output Current:
1.05A
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC FIT CS Track Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OT-FIT-40/220-240/1A0-CS-T-W |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
