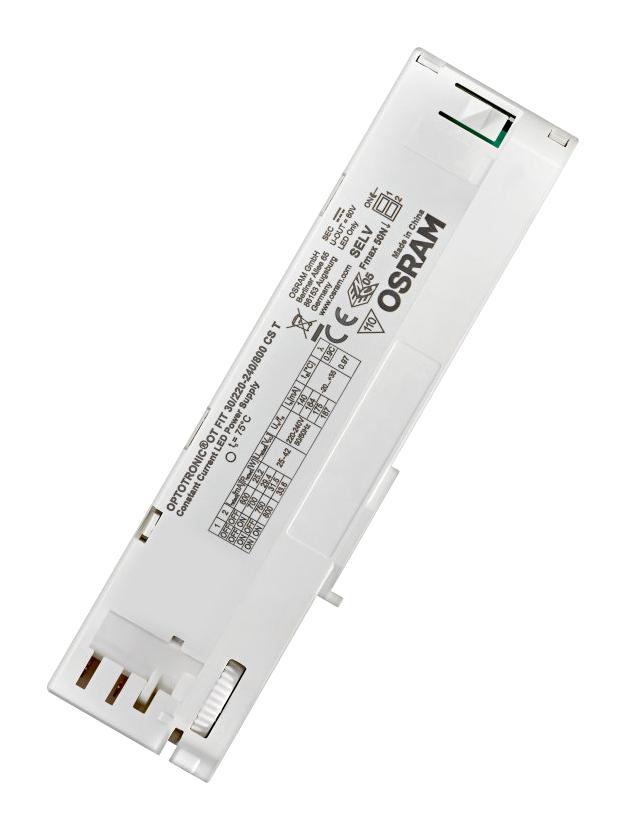

This Compact LED driver has the shortest possible housing at this wattage that allows a lot of flexibility at positioning spot lights on track systems. The wide operating window with 4 currents, that can easily be selected via DIP-Switches, allows flexibility in choosing compatible LED modules.
- Supply voltage range from 220V to 240V
- Line frequency: 50Hz, 60Hz
- Line voltage: 198-264V
- Lifetime: up to 50,000h (temperature at Tc = 75°C, max 10% failure rate)
- High quality of light thanks to low output ripple current
- High flexibility due to four different output currents per type
- Short housing for minimum distance between spotlights
- SELV system
- Suitable for Track lights, Shops and hospitality, retail, hotels, and restaurants
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
33.6W
|
| Output Voltage Max:
42V
|
| Output Current:
800mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC FIT CS Track Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OT-FIT-30/220-240/800-CS-T-W |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
