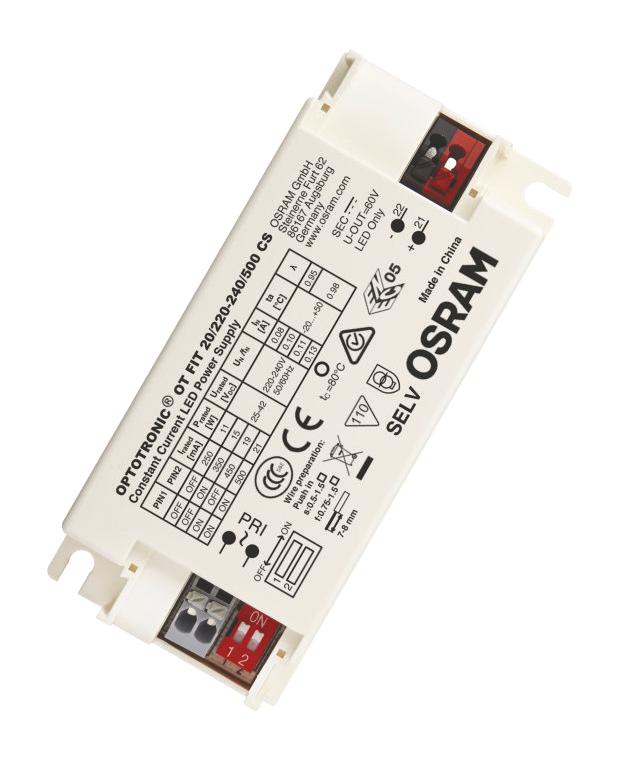

OT-FIT-20/220-240/500-CS is a non dimmable, compact constant current LED driver power supply. It includes reversible overtemperature, overload, short-circuit and open-circuit protection. Areas of application includes extra small design for downlights, spotlights and other indoor luminaries, suitable for luminaires of protection classes I and II, suitable for indoor SELV installations. Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3- 3/Acc. to IEC 61547 approved.
- RI suppression according to CISPR 15, line harmonics according to IEC 61000-3-2
- Immunity according to IEC 61547, small housing for flexible luminaire designs
- Higher quality of light due to < 3% output ripple current
- User flexibility with four different output currents from one driver
- Flexible current selection via DIP switch, high efficiency
- Nominal input voltage range from 220 to 240V, input voltage AC range from 198 to 264V
- Mains frequency is 50/60Hz, 0.95 to 0.98λ power factor range (full load at 230V/50Hz)
- 12 to 21W nominal output power range, 89% efficiency in full-load (at 230V, 50Hz)
- 30 to 42V nominal output voltage range, push terminal type of connection (input side, output side)
- 1/2 protection class, plastic casing material, ambient temperature range from -20 to +50°C
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
21W
|
| Output Voltage Max:
42V
|
| Output Current:
500mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
OPTOTRONIC FIT CS G3 Series
|
Other details
| Brand |
OSRAM |
| Part Number |
OT-FIT-20/220-240/500-CS |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
