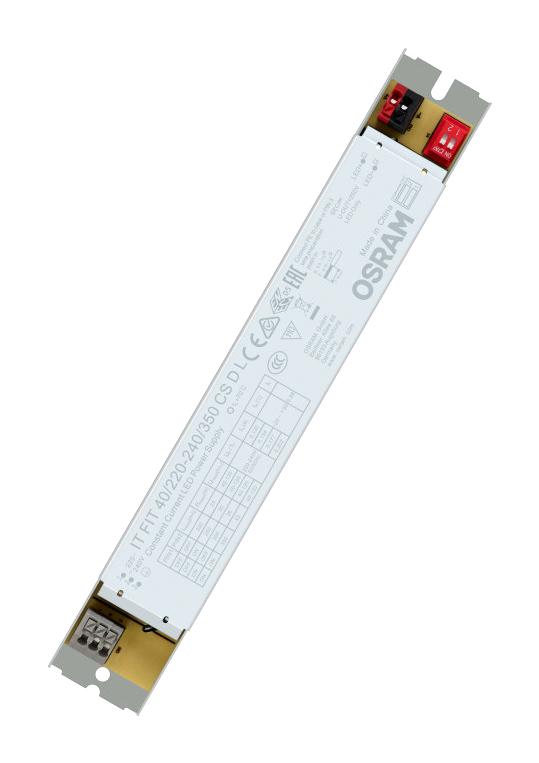

IT-FIT-40/220-240/350-CS-D-L is a non dimmable, non-isolated, linear / area constant current LED power supply. It includes overheating protection, overload protection, short-circuit protection. Area application includes linear and area lighting, office, industrial and shop lighting. Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to IEC 61000-3-2/Acc. to IEC 61547/Acc. to IEC 6100-4-5 approved.
- Low THD <15% at full load, wide output voltage range
- Low LF-ripple < 5%, fixed output (no dimming), flexible with 1 driver offers 4 output currents
- High quality light with very low ripple, very high efficiency
- Enable slim fixture design with flat 21mm height metal housing
- Long lasting and high reliability, non-isolated driver
- Nominal input voltage range from 220 to 240V, input voltage AC range from 198 to 264V
- Mains frequency is 50/60Hz, 0.85C to 0.98λ power factor range (full load at 220 to 240VAC/50Hz)
- 8 to 42W nominal output power range, 92% efficiency in full-load (at 230V, 50Hz)
- 40 to 120V nominal output voltage range (at 200/250mA output current / at 300/350mA output current)
- 5 years guarantee, ambient temperature range from -25 to +50°C
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
42W
|
| Output Voltage Max:
120V
|
| Output Current:
350mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
ICUTRONIC IT FIT D CS L (Non-Isolated) Series
|
Other details
| Brand |
OSRAM |
| Part Number |
IT-FIT-40/220-240/350-CS-D-L |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
