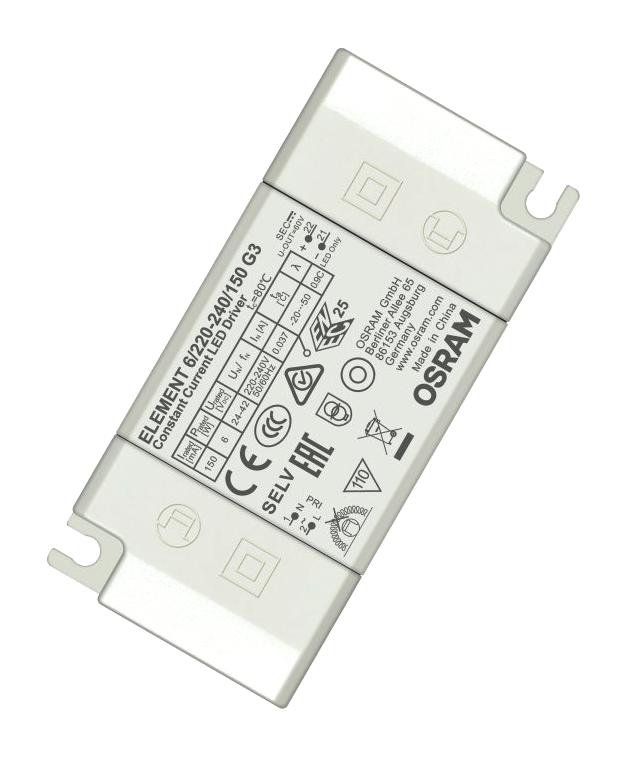

ELEMENT-6/220-240/150-G3 is a non dimmable, constant current LED driver. It includes overload protection, short-circuit protection. Areas of application includes spot light and down light, panels, other Indoor LED luminaries. Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to IEC 61000-3-2/Acc. to IEC 61547/Acc. to IEC 61000-3-3 approved.
- Fixed output (no dimming), suitable for class I/II luminaires
- Up to 30 000h lifetime at tcmax = 80°C, SELV, safety ensured by OSRAM (SELV)
- High quality of light with ripple current < 5%
- Nominal input voltage range from 220 to 240V, input voltage AC range from 198 to 264V
- Mains frequency is 50/60Hz, 0.91 to 0.95λ power factor range, 3.6 to 6.3W nominal output power range
- 81% efficiency in full-load (at 230V, 50Hz), 24 to 42V nominal output voltage range
- Push terminal type of connection (input side, output side)
- I,II protection class, plastic housing casing material
- 3 years guarantee, ambient temperature range from -20 to +50°C
- 90.0mm length, 43.0mm width, 22.0mm height
Product details
| Power Supply Applications:
LED Lighting
|
| Output Power Max:
6.3W
|
| Output Voltage Max:
42V
|
| Output Current:
150mA
|
| LED Driver Mode:
Constant Current
|
| Input Voltage Min:
198V
|
| Input Voltage Max:
264V
|
| Product Range:
ELEMENT G3 Series
|
Other details
| Brand |
OSRAM |
| Part Number |
ELEMENT-6/220-240/150-G3 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
