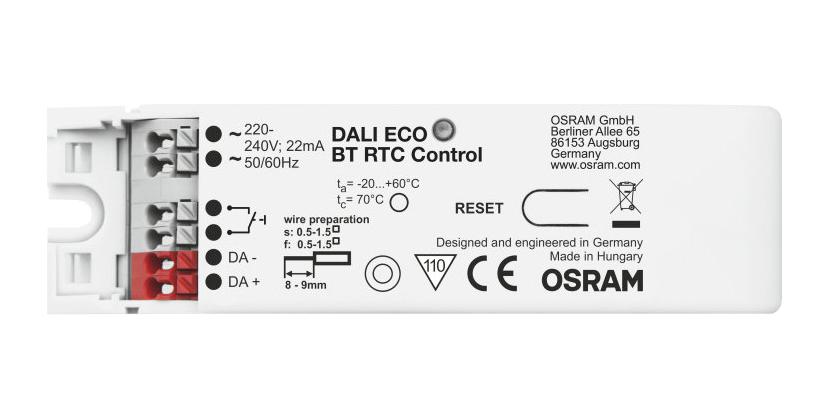

The Osram DALI ECO Bluetooth controller is a compact lighting controller with DALI interface. Smart phone connection via Bluetooth to control and configure. Outputs with electronical reversible overtemperature, short-circuit, overload protection. DALI light control unit with Bluetooth interface for luminaire and ceiling integration for manual control and daylight and presence dependent regulation of artificial light.
- Compact light control with DALI interface
- Smart phone connection via Bluetooth to control and configure
- Integrated clock for time based control of brightness and colour temperature (HCL)
- Adaptable HCL curve with up to 24 points
- One DALI output channel (broadcast or groupcast)
- Up to 32 DALI luminaires connectable
- Supports up to 4 OSRAM DALI sensors and pushbutton couplers
- Daylight-dependent regulation and presence-dependent control of light
- Pushbutton interface to separately control brightness and colour temperature
- Supports DALI DT8 Tunable White driver
Product details
| Input Voltage:
230VAC
|
| Control Input Type:
DALI DT8
|
| Output Channels:
1 Channel
|
| Output Type:
-
|
| Operating Frequency:
60Hz
|
| Control Port Type:
-
|
| Product Range:
-
|
| Output Power (dBm):
-
|
| RX Receiver Sensitivity:
-
|
| Wi-Fi Standard:
-
|
| Bluetooth Version:
-
|
| Wi-Fi Network Security Protocol:
-
|
| IP Rating:
IP20
|
Other details
| Brand |
OSRAM |
| Part Number |
DALIECO-BT-RTC-CONTROL |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
