Description
Osprey 1245 Overview

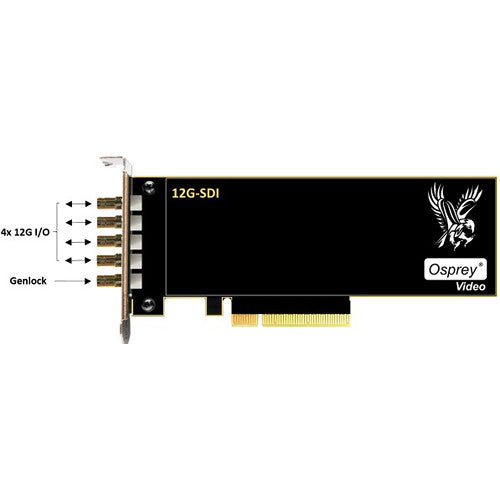

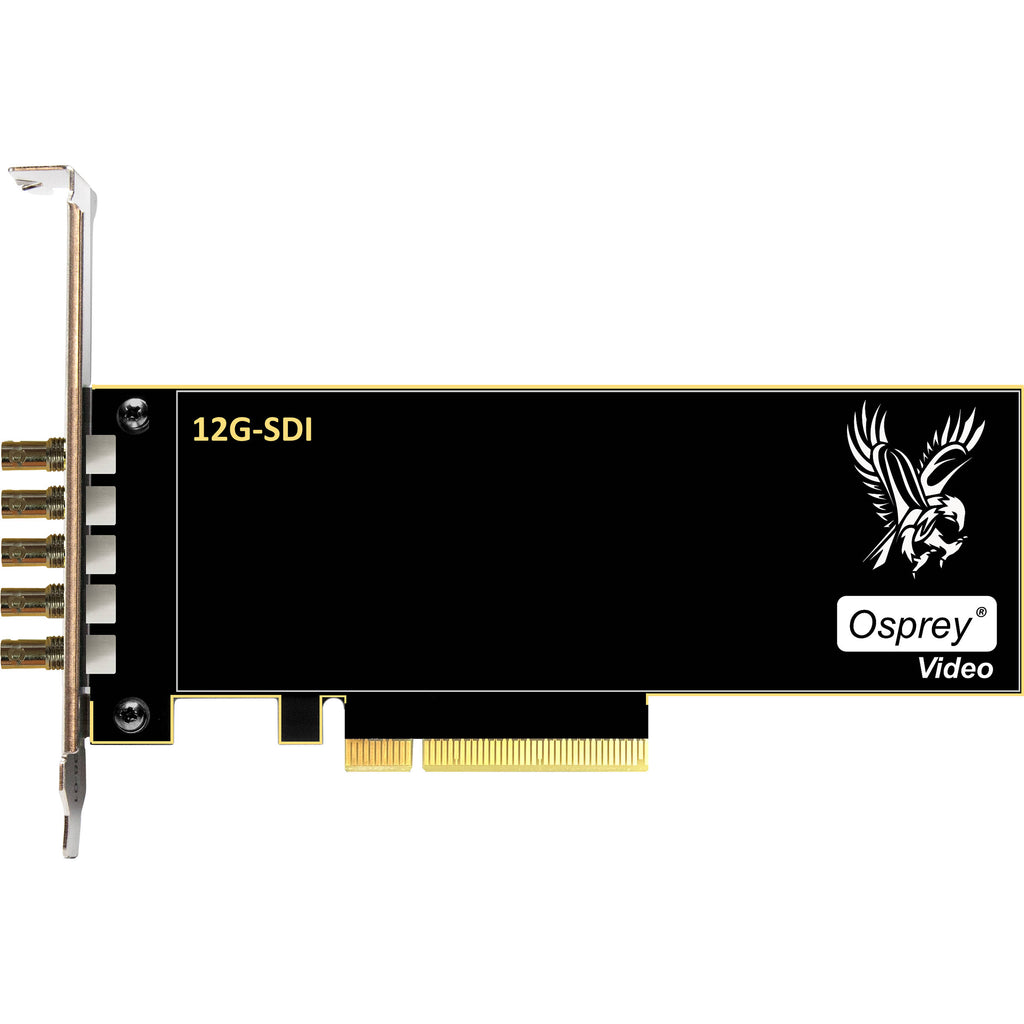

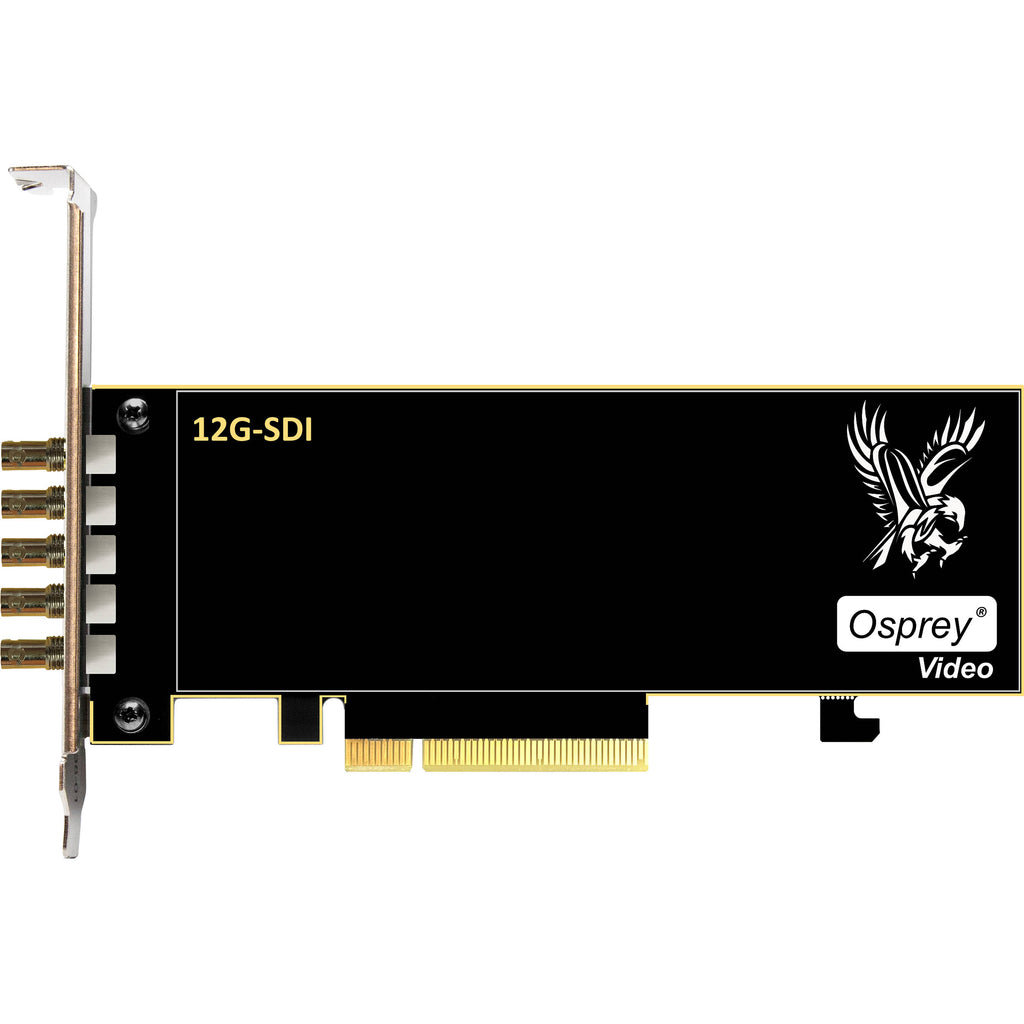

Capture four channels of SDI video at up to 60 fps with the Raptor Series 1245 PCIe Capture Card from Osprey . This capture card offers four SDI connections, all of which are rated at 12 Gb/s. The card's SDI ports work with SD, HD, Ultra HD, and 4K DCI frame sizes and support 16 embedded audio channels (eight stereo channels) each. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.
SimulStream
Seamless adaption to input signal changes
Cropping
Custom loss of signal insertion
Watermarking
MediaLooks SDK support
CC overlay
VBI extraction
CC extraction
Automatic signal detection
Image control (Procamp)
De-interlacing
Scaling
Frame rate conversion
Multiple cards per host computer
Text overlay or system time and date
Dual mono audio
Unified driver for all Raptor cards
Fanless design
UPC: 850189006818
In the Box
- Osprey Raptor Series 1245 PCIe Capture Card with 4 x SDI Channels
- Half-Height Bracket
- Limited 2-Year Warranty
Osprey 1245 Specs
| Computer Interface | PCI Express Gen2 x8 |
| Connections | 4 x 12 Gb/s SD/HD/3G-A/2K/4K (Micro HD BNC) |
| Audio I/O | 16 x Embedded Channels (8 Stereo) per SDI Connection |
| Video Standards | 525i59.94 NTSC, 625i50 PAL 720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i50, 59.94, 60 2K DCI p23.98p, 24, 25, 29.97, 30, 50, 59.94, 60 2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 4K DCI p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
| SDI Compliance | SMPTE 259/292/296/424/425/2081/2082, ITU-R BT.656 and ITU-R BT.601 3G-SDI Level A Only |
| SDI Metadata Support | CEA-608, CEA-708 for Closed Captioning |
| Audio Sampling | Television Standard Sample Rate of 48 kHz at 24-Bit |
| SDI Color Precision | 8, 10, 12-Bit RGB 4:4:4 up to 4K DCI 30p, and 8, 10, 12-Bit YUV 4:4:4 and 4:2:2 in All Modes |
| Multiple Rate Support | Auto-Detect SD/HD/3G/2K/4K |
| Power Consumption | 8.4 W Approx. |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Weight | 4.9 oz / 138 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
