Description
Osprey 95-00535 Overview

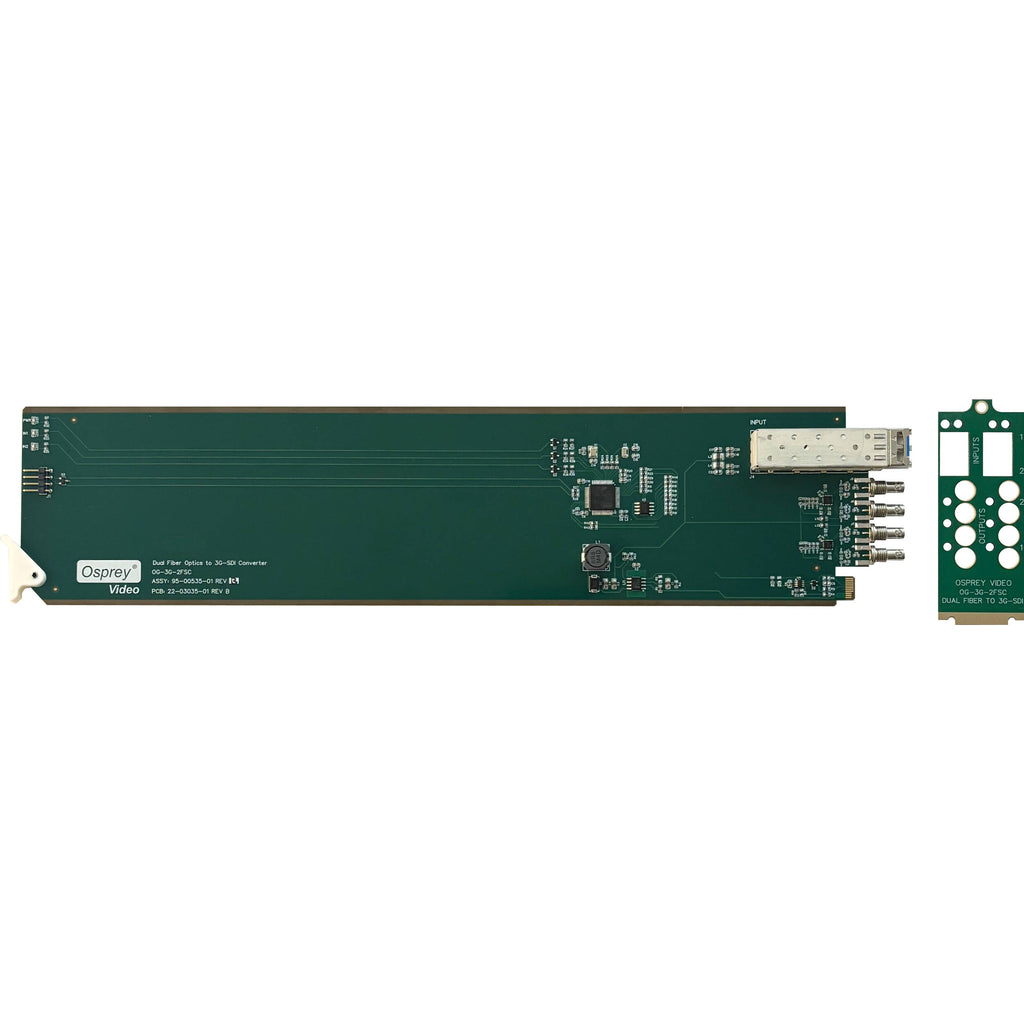

Convert SDI source video via fiber link to 3G-SDI signals with this OG-3G-2FSC Dual Fiber Optic to 3G-SDI Converter Card from Osprey. This video signal converter card is designed to take up one slot in an openGear DFR-8321, OGx, or OG3 frame, and it includes a rear module that takes up two slots to accommodate up to two cards. It can be monitored and configured via the openGear Dashboard control software for Windows, Linux, or macOS.
Connections include dual LC fiber inputs that receive SDI signals for output to dual 3G-SDI per fiber signal. The fiber input supports wavelengths between 1270 through 1610nm. The card supports SMPTE-259/292/424 and DVB-ASI standards, supports HDR video, and it features power and signal lock status LEDs. The card supports BNC cable lengths up to 492'.
Items Included
- Osprey OG-3G-2FSC Dual Fiber Optic to 3G-SDI Converter Card
- Rear Module
- Mounting Hardware
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Osprey 95-00535 Specs
| Video I/O |
Input
2x LC Fiber Output 2x BNC (3G-SDI) |
| Video Resolution |
BNC Input
1920 x 1080p up to 60 fps |
| Wireless |
No
|
| Video I/O |
Input
2x LC Fiber Output 2x BNC (3G-SDI) |
| Expansion Slots |
No
|
| Latency |
No
|
| Video Resolution |
BNC Input
1920 x 1080p up to 60 fps |
| Embedded Audio |
SDI
|
| Reclocking |
Yes
|
| Video Standard Compliance |
SMPTE: 259M/292M/424M
|
| HDR Support |
Yes
|
| Wireless |
No
|
| Power Consumption |
3 W
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 140?F / -40 to 60?C at 10 to 90% Humidity
|
