Description
Osprey 95-00536 Overview

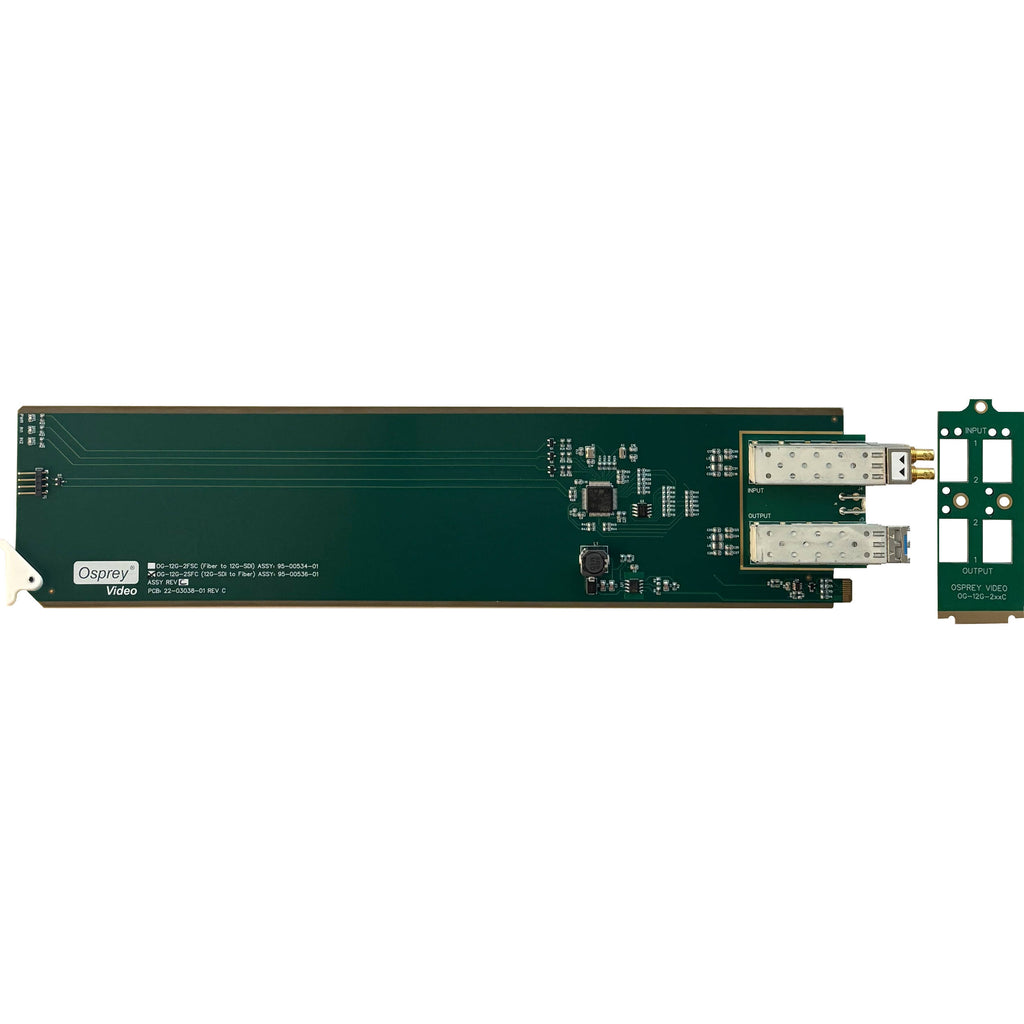

Convert 12G-SDI source video to LC fiber optic output signals with this OG-12G-2SFC Dual-Channel 12G-SDI to Dual Single-Mode LC Fiber Converter Card from Osprey. This signal converter card is designed to take up one slot in an openGear DFR-8321, OGx, or OG3 frame, and it includes a rear module that takes up two slots to accommodate up to two cards. It can be monitored and configured via the openGear Dashboard control software for Windows, Linux, or macOS.
Connections include dual 12G-SDI inputs that convert to dual single-mode LC fiber outputs. The fiber output supports the 1310nm wavelength. The card also supports SMPTE-259/292/424/2081/2082 and DVB-ASI standards, and it features power and signal lock status LEDs.
Items Included
- Osprey OG-12G-2SFC Dual-Channel 12G-SDI to Dual Single-Mode LC Fiber Converter Card
- Rear Module
- Mounting Hardware
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Osprey 95-00536 Specs
| Video I/O |
Input
2x BNC (12G-SDI) Output 2x LC Fiber |
| Video Resolution |
BNC Input
4096 x 2160 up to 60 fps |
| Wireless |
No
|
| Video I/O |
Input
2x BNC (12G-SDI) Output 2x LC Fiber |
| Expansion Slots |
No
|
| Latency |
No
|
| Video Resolution |
BNC Input
4096 x 2160 up to 60 fps |
| Embedded Audio |
SDI
|
| Reclocking |
Yes
|
| Video Standard Compliance |
SMPTE: 259M/292M/424M/ST-2081/ST-2082
|
| HDR Support |
Yes
|
| Wireless |
No
|
| Power Consumption |
3 W
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 140?F / -40 to 60?C at 10 to 90% Humidity
|
