Description
OSEE T7 Overview
- 1Description
- 2
- 3Key Features
- 4Super False Color
- 5Built-In 3D LUTs
- 6User-Uploaded 3D LUTs
- 7Image Tools
The
T7 7" UHD 4K HDMI Ultrabright Field Monitor from

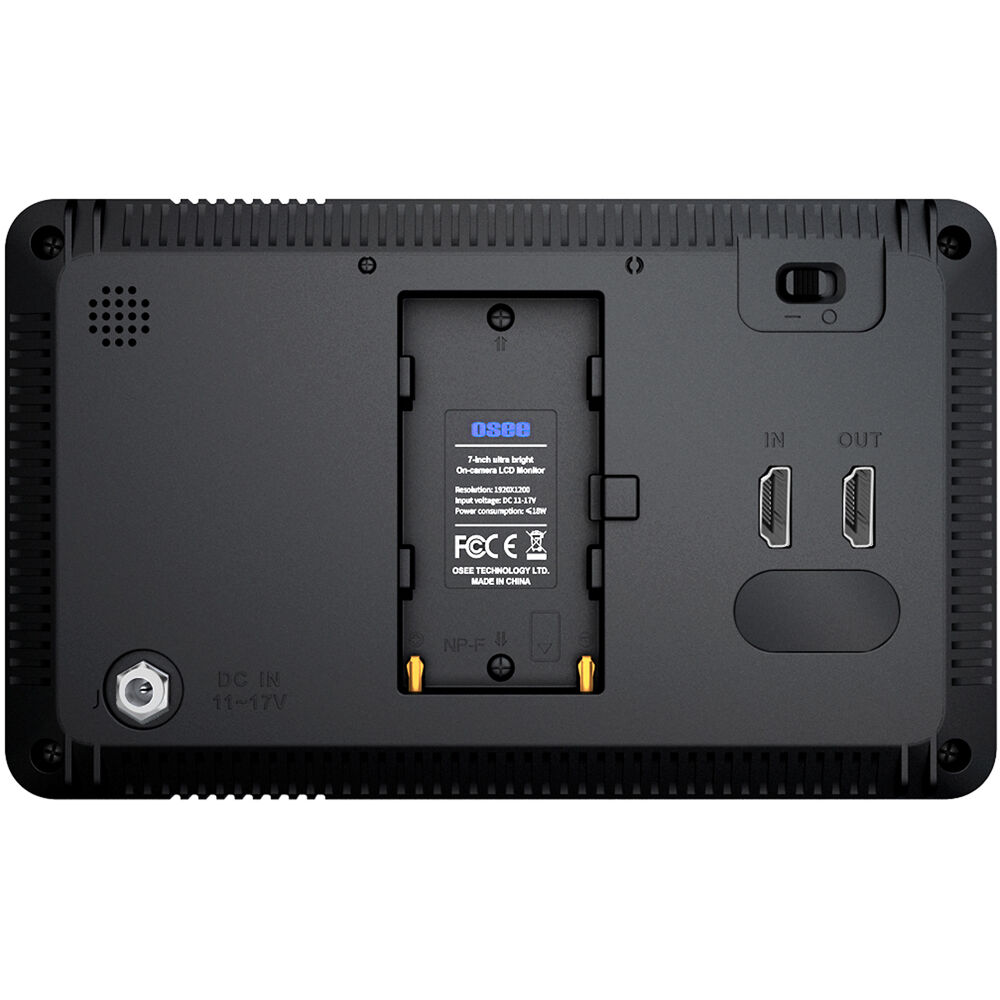

OSEE features a sharp 7" 1920 x 1200 display with HDMI input and output and input resolutions of up to UHD 4K video. It features an integrated L-series battery slot on the back, and it can also be powered using the included power adapter or via a D-Tap capable power source. The IPS LCD panel boasts a 16:10 aspect ratio, 1200:1 contrast ratio, and an ultrabright 3000 cd/m² measured brightness for easy viewing outdoors as well as indoors.
Key Features
- High-resolution 1920 x 1200
- High contrast of 1200:1
- Ultrabright 3000 cd/m²
- 178° wide-view-angle IPS panel
- Joystick control
- HDMI input and output
- HDR emulation
- Custom LUTs
- 8-bit color
- Input up to UHD 4K
- Durable polycarbonate and aluminum construction
- L-series battery slot
- 3.5mm headphone output
- 1/4"-20 mounting threads on top and bottom
Super False Color
Osee T7 monitor supports more powerful Super False Color mode, including underexposure, overexposure, 18° grey, and skin tone indications, to help you get a correct exposure easily. The exposure indications are calculated for different cameras, there are 16 different log curves including Sony S-Log2, SONY S-Log3, Panasonic V709, ARRI Rec. 709, RED Log film, RED RG4, and more for you to choose from.
Built-In 3D LUTs
The T7 monitor provides 33 kinds of built-in 3D LUTs, including S-log 2/3, V-log, C-Log 1/2/3, Log-C, J-Log1, RED Log, BMD, Fujifilm, GoPro, DJI, and more to convert log mode to Rec. 709 for all major cameras. To further enhance color brightness and clarity, the T7 supports High Dynamic Range (HDR) to help make images more detailed and realistic.
User-Uploaded 3D LUTs
Cinematographers can also upload creative 3D LUT cubes or calibration 3D LUT cubes to the T7 monitor via the SD card slot. The T7 supports 17^3, 33^3 and 65^3 cubes. A maximum of 16 user 3D LUTs can be restored.
Image Tools
- Scene switching (up to 8 scenes)
- Histogram
- Super false color mode
- Anamorphic (1x,1.33x,1.5x,1.66x, 2x and 2x mag)
- Crosshatch
- Zebra
- RGB 3-color Focus Assist
- 33 built-in 3D LUTs
- Waveform
- Vectorscope
- Audio level meter
- Image resize
In the Box
- OSEE T7 7" UHD 4K HDMI Ultrabright Field Monitor
- Tilting 1/4"-20 to Shoe Mount
- D-Tap to Locking DC Cable
- AC/DC Power Adapter
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Batteries (Not Included)
Table of Contents
- Description
- Key Features
- Super False Color
- Built-In 3D LUTs
- User-Uploaded 3D LUTs
- Image Tools
OSEE T7 Specs
Key Specs
| Display Size |
7.0" / 17.8 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Compatibility |
Yes
|
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC [16 GB Maximum]
|
| Video Format |
HDMI
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480p: 60 576p: 50 |
| Battery Type |
1x L-Series
|
| Power Consumption |
16.2 W
|
| Mounting |
2x ARRI Anti-Twist 1/4"-20
|
Display
| Display Size |
7.0" / 17.8 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
Horizontal: 160°
Vertical: 160° |
| Touchscreen |
No
|
| Maximum Brightness |
3000 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors)
|
| HDR Compatibility |
Yes
|
| Pixels Per Inch (ppi) |
323 ppi
|
| Color Gamut |
100% Rec. 709
|
| Image Controls |
Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform, Zebra
|
Inputs / Outputs
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| HDCP Support |
Yes
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
1
|
| Power I/O |
1x Barrel Input
|
| Other I/O |
1x 2.5 mm (Camera Control)
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC [16 GB Maximum]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480p: 60 576p: 50 |
| Gamma Curve |
ARRI Log C, Canon Log 2, Canon Log 3, JVC J-Log, Panasonic V-Log, Rec709, REDlogFilm, Sony S-Log 2, Sony S-Log 3
|
Power
| DC Input Power |
11 to 17 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
16.2 W
|
Mounting
| Mounting |
2x ARRI Anti-Twist 1/4"-20
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
General
| Material of Construction |
Aluminum, Polycarbonate
|
| Dimensions |
7.6 x 4.6 x 1" / 192 x 116.3 x 24.7 mm
|
| Weight |
15.5 oz / 438 g
|
Packaging Info
| Package Weight |
2.55 lb
|
| Box Dimensions (LxWxH) |
9.6 x 7 x 3"
|
