Description
OSEE T5 PLUS Overview
- 1Description
- 2
- 3Up to UHD 4K HDMI Input
- 4High-Bright Monitor
- 5HDR Monitoring
- 6LUT Application
- 7Joystick Control
- 8MON OS Interface
- 9Imaging Tools
Easily view your video images even in daylight using the
T5+ 5.5" High-Bright UHD 4K HDMI On-Camera Monitor Kit from
OSEE. This lightweight, HDR-compatible, 5.5" monitor supports up to UHD 4K30 video and features 1000 cd/m² brightness and 1000:1 contrast. Use the five-direction joystick control to access the OSEE MON OS page-style user interface and a variety of imaging tools like focus peaking, histogram, waveform, and vectorscope.
Up to UHD 4K HDMI Input
Supports up to UHD 4K30 input via HDMI.
High-Bright Monitor
The 1000 cd/m2 brightness and 1000:1 contrast make this monitor easy to view even in daylight.
HDR Monitoring
Monitor your HDR or log footage right in the field.
LUT Application
Provides the ability to upload LUTs from an SD card for customized, nuanced monitoring.
Joystick Control
Use the 5-direction joystick control to select features and options.

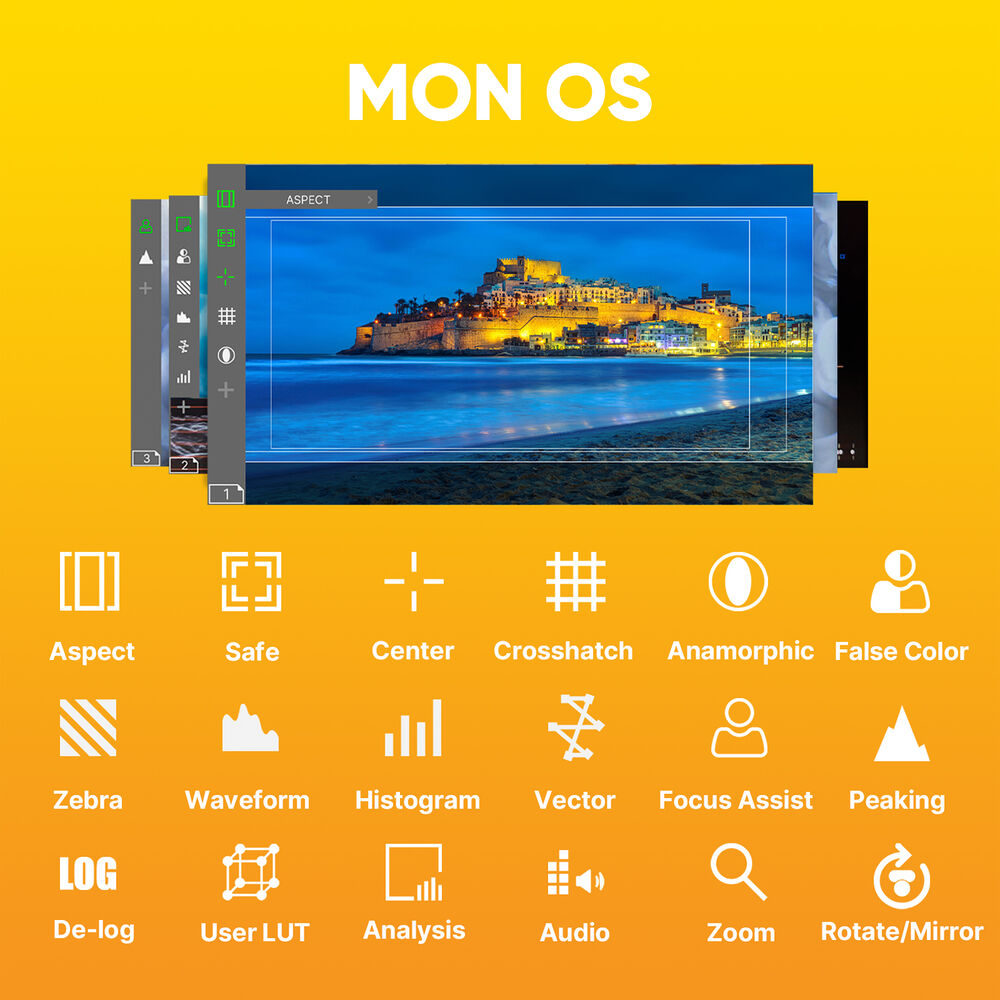

MON OS Interface
- Uses the page-style OSEE MON OS user interface.
- Enables you to add up to eight MySets with eight tools in each set.
- Easily toggle between sets to check parameters.
Imaging Tools
- Anamorphic de-squeeze.
- False color.
- RGB parade.
- Histogram and zebra.
- Focus peaking and 2x and 4x pixel zoom.
- Center, safety, and area markers.
- Image scaling and rotation.
- Audio metering.

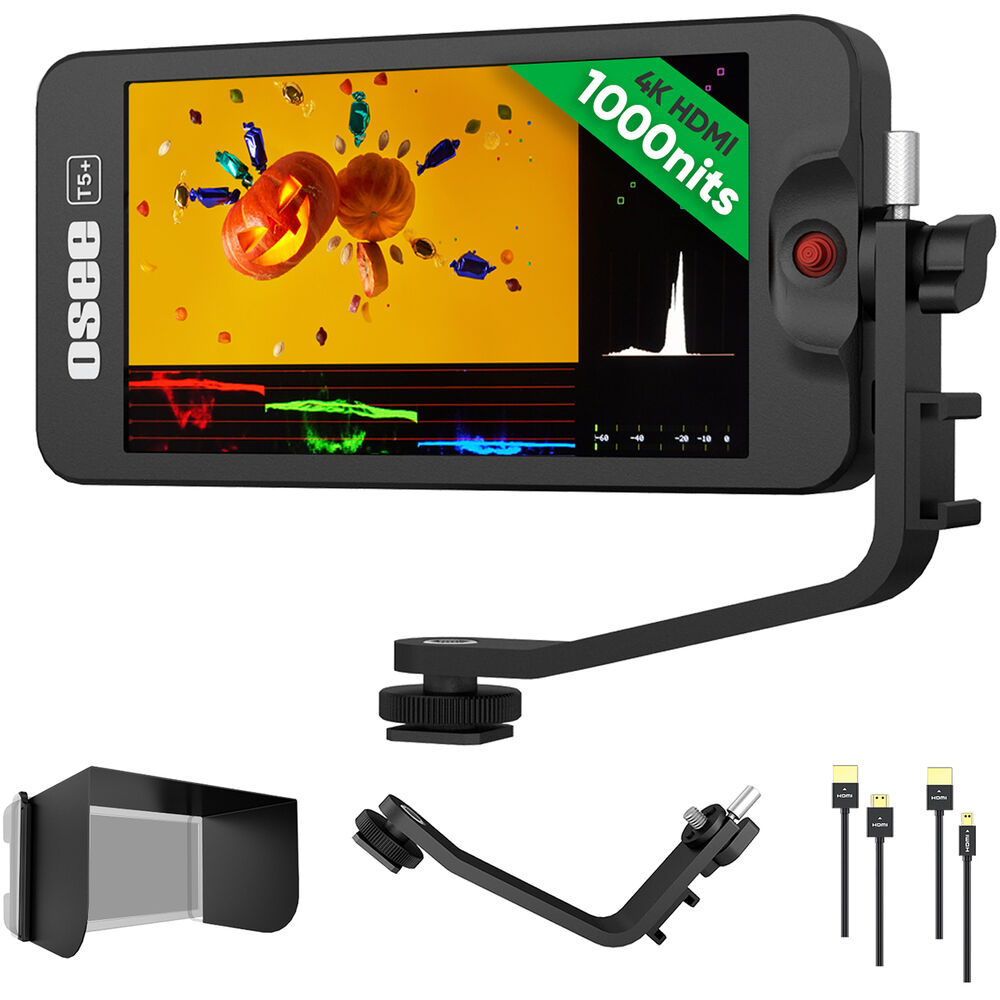

In the Box
- OSEE T5+ 5.5" High-Bright UHD 4K HDMI On-Camera Monitor Kit
- Tilt Arm
- Sunshade
- Micro-HDMI Cable (11.8")
- Mini-HDMI Cable (11.8")
- Limited 1-Month Manufacturer Warranty
Not in the Box
- Essential Batteries & Chargers (Not Included)
Table of Contents
- Description
- Up to UHD 4K HDMI Input
- High-Bright Monitor
- HDR Monitoring
- LUT Application
- Joystick Control
- MON OS Interface
- Imaging Tools
OSEE T5 PLUS Specs
Key Specs
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Compatibility |
HDR10, Hybrid Log Gamma
|
| Video I/O |
1 x HDMI 1.4 Input
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC [16 GB Maximum]
|
| Power Consumption |
5.5 W
|

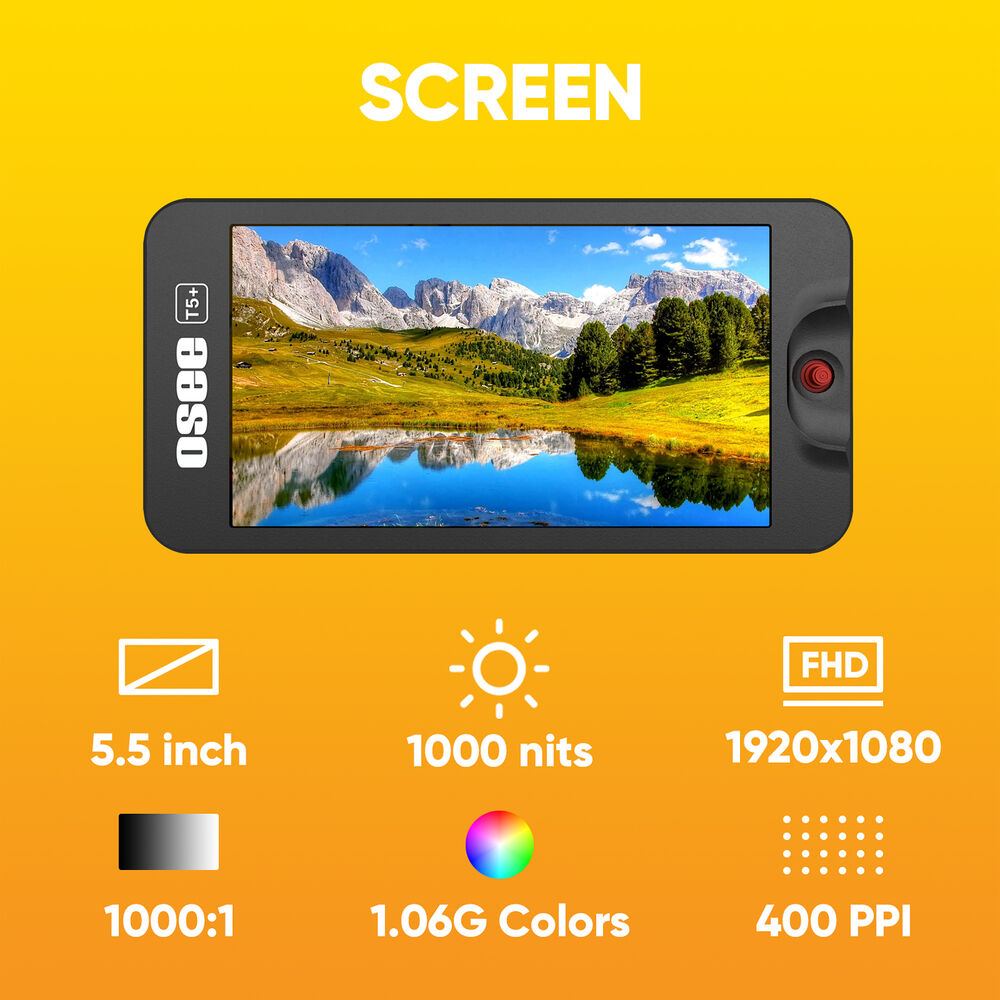

Display
| Panel Type |
LCD
|
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160°
Vertical: 160° |
| Touchscreen |
No
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Bit Depth / Color Support |
8-Bit+FRC (1.07 Billion Colors)
|
| HDR Compatibility |
HDR10, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
400 ppi
|
| Color Gamut |
100% Rec. 709
100% DCI-P3 |
| Real-Time LUT Monitoring |
SDR, HDR
|
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Rotate, Pixel Zoom, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform, Zebra
|

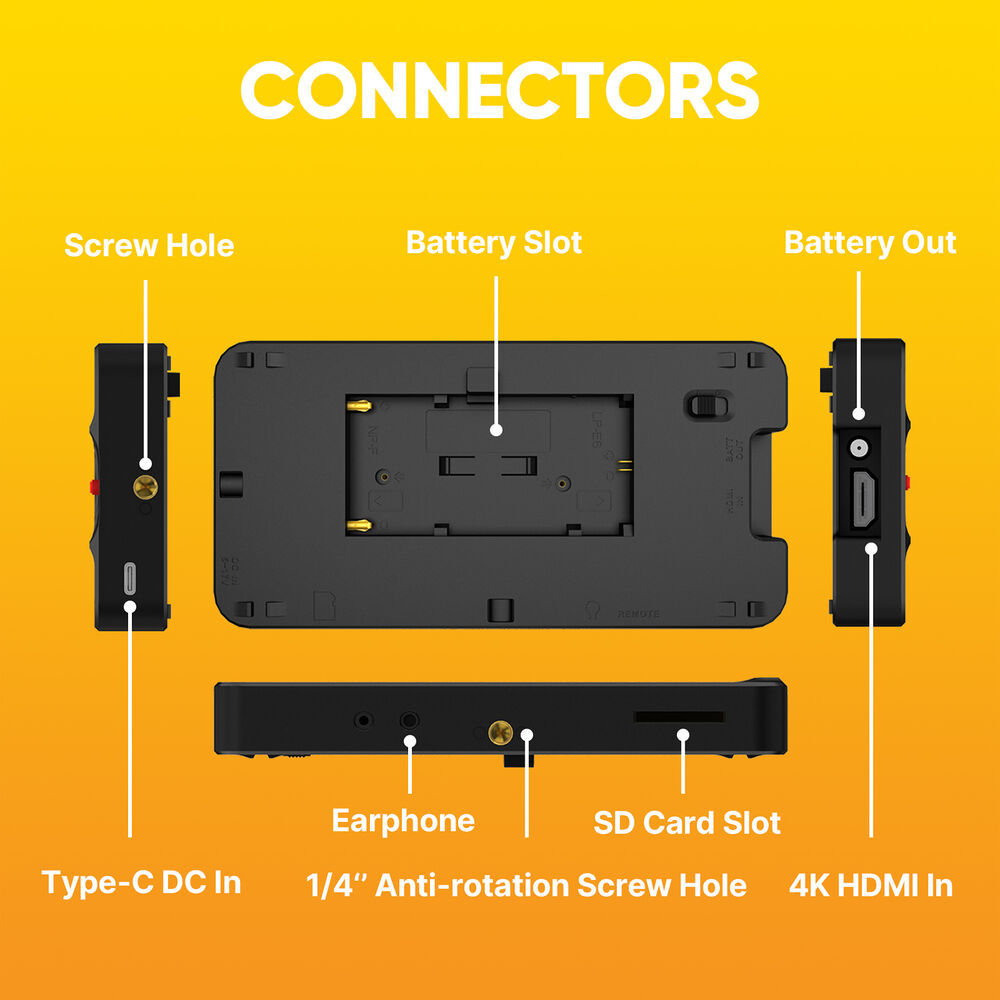

Inputs / Outputs
| Video I/O |
1 x HDMI 1.4 Input
|
| Embedded Audio |
HDMI
|
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1 x USB-C (17 VDC) Input
1 x Barrel (8.4 VDC) Output |
| Other I/O |
1 x 2.5 mm (Camera Control)
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC [16 GB Maximum]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
*As of July, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format |
HDMI
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
| Gamma Curve |
ARRI Log C, Canon Log, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, RED IPP2, Sony S-Log
|
Power
| DC Input Power |
5 to 17 VDC
|
| Battery Type |
1 x LP-E6, L-Series
|
| Power Consumption |
5.5 W
|
Mounting
| Mounting |
2 x ARRI Anti-Twist 1/4"-20
|
Environmental
| Environmental Protection |
No
|
| Certifications |
FCC-Part 15
*as per Manufacturer |
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
General
| Material of Construction |
Aluminum, Polycarbonate
|
| Dimensions |
6.2 x 3.1 x 0.8" / 157.5 x 79 x 20 mm
|
| Weight |
6.2 oz / 175 g
|
Packaging Info
| Package Weight |
0.99 lb
|
| Box Dimensions (LxWxH) |
7.5 x 6.7 x 2.2"
|
