Description
OSEE Megamon 15 Overview
- 1Description
- 2Multiple Video I/O
- 3Exposure Tools
- 4Framing Tools
- 5Focus Tools
- 6Color Management

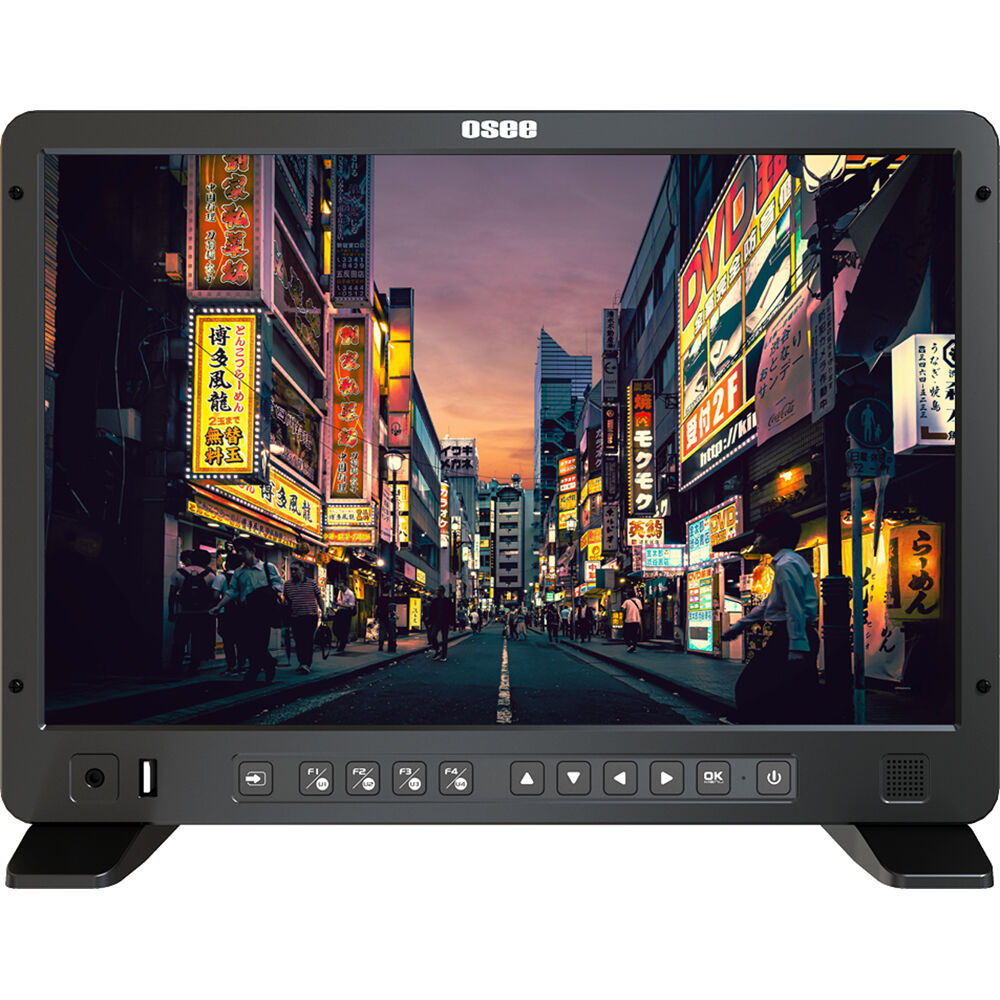

The Osee Megamon 15 HDR Production Monitor with V-Mount Kit is an 800 cd/m² 1920 x 1080 display packed with monitoring tools. Whether you prefer to use histograms, waveforms, false colors, or zebras, the Osee field monitor has the right tool to help you nail the optimal exposure. The monitor also supports anamorphic de-squeeze and custom frame guides for anamorphic shooters. Packaged with a sun hood, C-stand mount, and desktop stand, the Osee production monitor is ready to go in just about any production environment.
- One HDMI input
- Two 3G-SDI inputs
- One 3G-SDI Loop out
- False color
- Zebra
- Histogram
- Vectorscope
- Waveform
- Anamorphic desqueeze
- Custom aspect ratios
- Area marker
- Center marker
- Focus assist (red/green/blue/mono; sensitivity value 0-100 adjustable)
- Peaking (level 1-16 adjustable)
- Gamma (PQ, HLG)
- Color temperature (D55, D61, D65, D93, DCI)
- Color space (ITU709, EBU, SMPTE-C, P3, ITU2020)

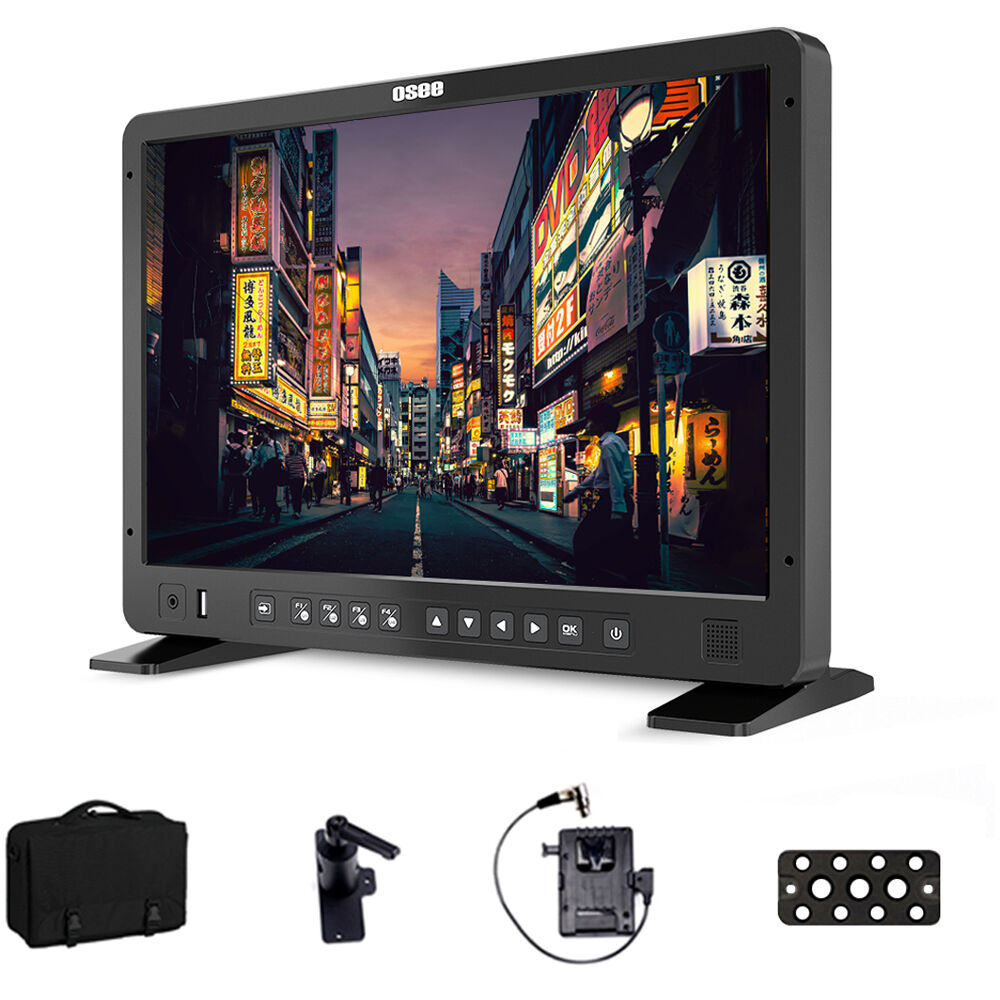

In the Box
- OSEE Megamon 15 HDR Production Monitor with V-Mount Kit
- V-Mount Battery Plate with D-Tap to XLR Cable
- C-Stand Adapter with 3 Screws
- Carrying Bag with Shoulder Strap
- Cheese Plate
- HDMI Cable Lock (2 Parts)
- 2 x Desktop Foot
- Velcro Strip
- Description
- Multiple Video I/O
- Exposure Tools
- Framing Tools
- Focus Tools
- Color Management
OSEE Megamon 15 Specs
| Panel Type | TFT LCD |
| Display Size | 15.4" / 39.1 cm |
| Screen Area | 13.0 x 8.1" / 330 x 206 mm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 800 cd/m2 |
| Contrast Ratio | 1450:1 |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 147 ppi |
| Response Time | 18 ms |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Green Only, Histogram, Red Only, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |

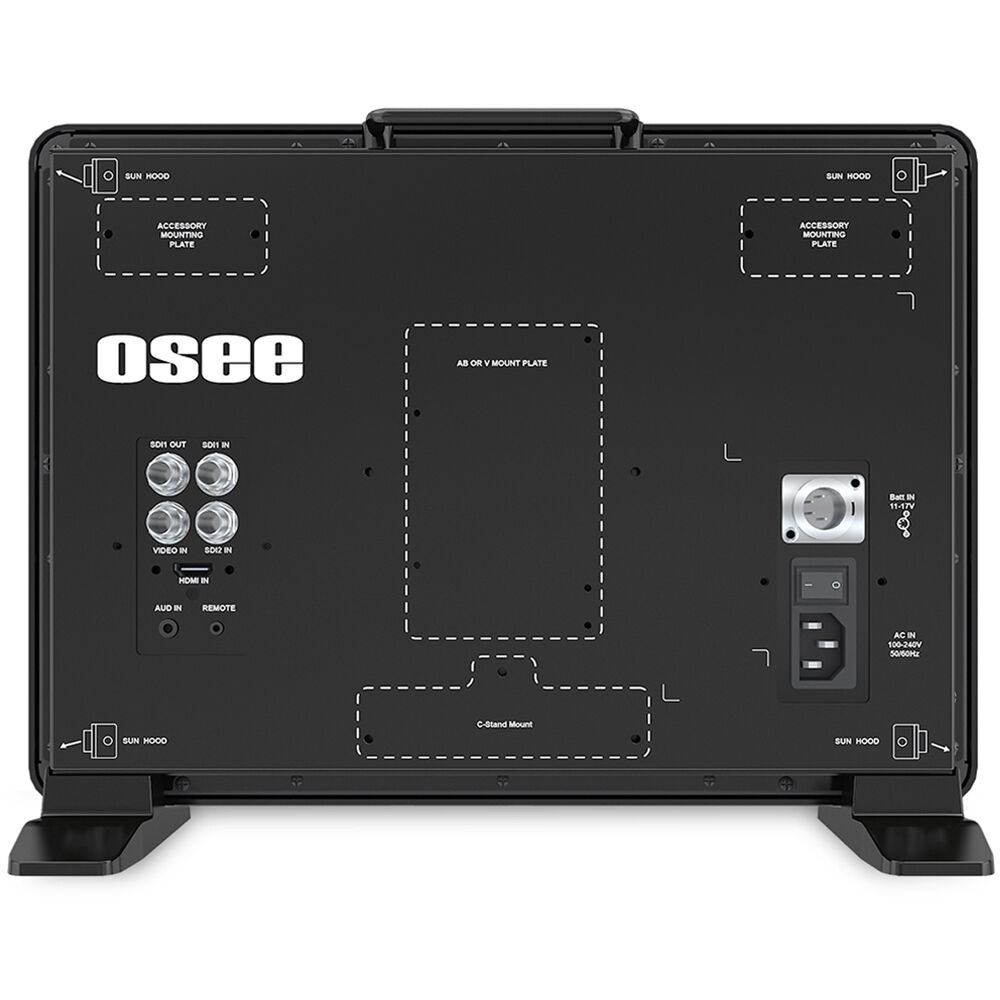

| Video I/O | 2 x BNC (3G-SDI) Input 1 x HDMI Input 1 x BNC (Composite) Input 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | SDI HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Power I/O | 1 x IEC Input 1 x XLR 4-Pin (16.8 VDC) Input |
| Other I/O | 1 x USB-A 2.0 Input 1 x 2.5 mm Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Video Format | SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC) DCI 2K PsF: 30/29.97/25/24/23.98 DCI 2K: 48/47.95/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 60 SDI (10-Bit 4:2:2 YCC) 1035i: 60/59.94 Composite (10-Bit 4:2:2 YCC) 480i: 60 576i: 60 HDMI (10-Bit 4:2:2 YCC) 1080p: 30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Gamma Curve | HDR-HLG, HDR-PQ |
| Video Standard Compliance | SMPTE 259M/292M/297M/424M ITU -R BT.709/BT.2020 |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 11 to 16.8 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 29.3 W |
| Certifications | FCC Part 15 Class B *as per Manufacturer |
| Operating Temperature | 32 to 82°F / 0 to 50°C |
| Dimensions | 14.5 x 10.4 x 2.1" / 368.9 x 264.9 x 54.5 mm |
| Package Weight | 16.585 lb |
| Box Dimensions (LxWxH) | 18.1 x 13.8 x 8.1" |
OSEE Megamon 15 Reviews
Good Value
The USB A port provides juice to power a wireless video receiver. There is a cheeseplate on the back where you can attach a wireless video receiver. V Mount plate to power with battery. The updated clicky buttons are better than the membrane buttons that used to be on this monitor. Has all the focus and exposure tools you need at your fingertips. The handy carrying case easily turns into a sunhood for outdoor use. The baby pin receiver is wobbly by itself but if you keep the monitor in the case there is a ring you insert the baby pin into in addition to the mount that keeps the monitor more stable. The menu system is complex but you can program four presets for quick access and apply a LUT. So so screen quality and brightness but more than adequately viewable with the sunhood. Overall good value.
