Description
OSEE Mega 22S Overview
Bright, Clear Monitoring in the Field
The

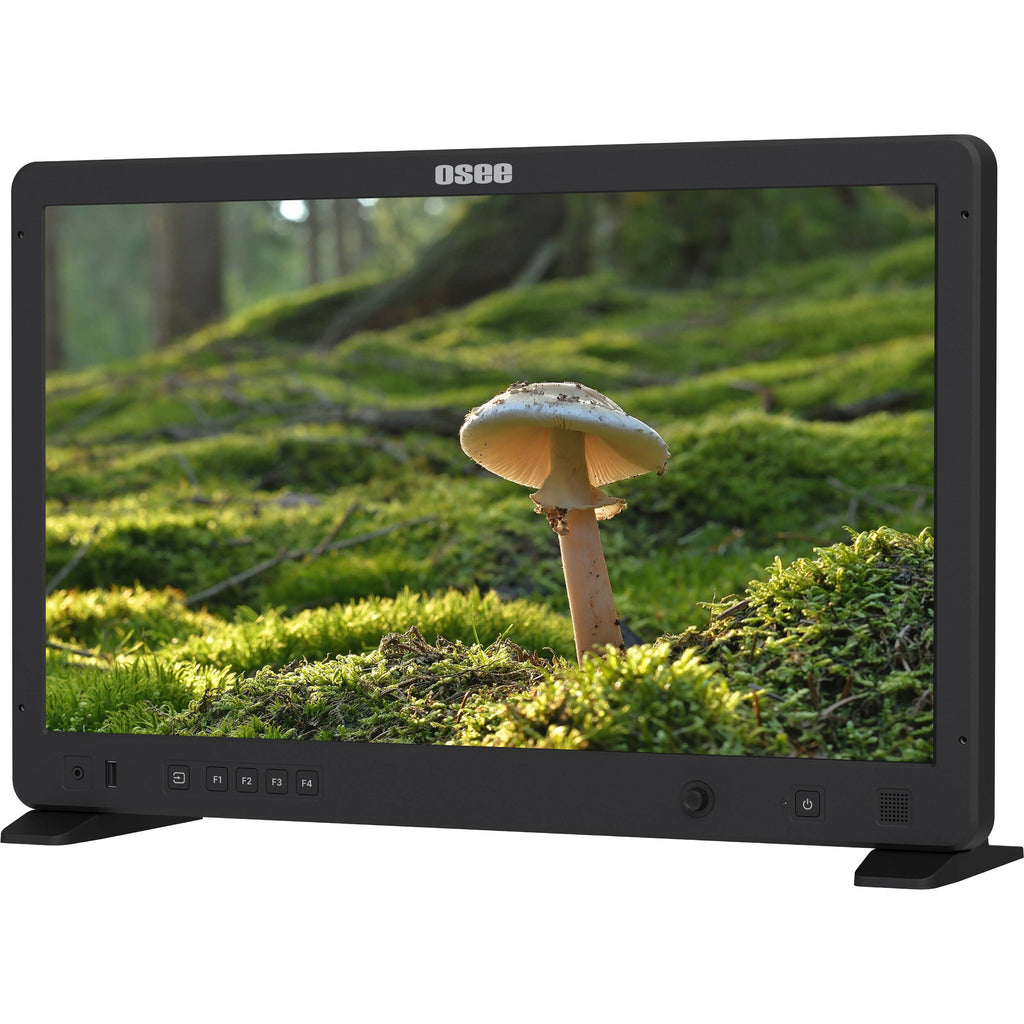

OSEE 21.5" Mega 22S Production Monitor with V-Mount Plate Kit is a bright, 1500 cd/m² monitor featuring an IPS panel with 10-bit color, 3D LUT application, and HLG/PQ HDR for crisp, clear imaging for video resolutions up to DCI 4K30. A slew of monitoring tools includes focus peaking, histogram, waveform, false color, zebra, and aspect ratio options. The Mega 22S also supports anamorphic de-squeeze, plus timecode and audio metering for SDI. The monitor includes a V-mount battery plate, sun hood, C-stand mount, and desktop feet.

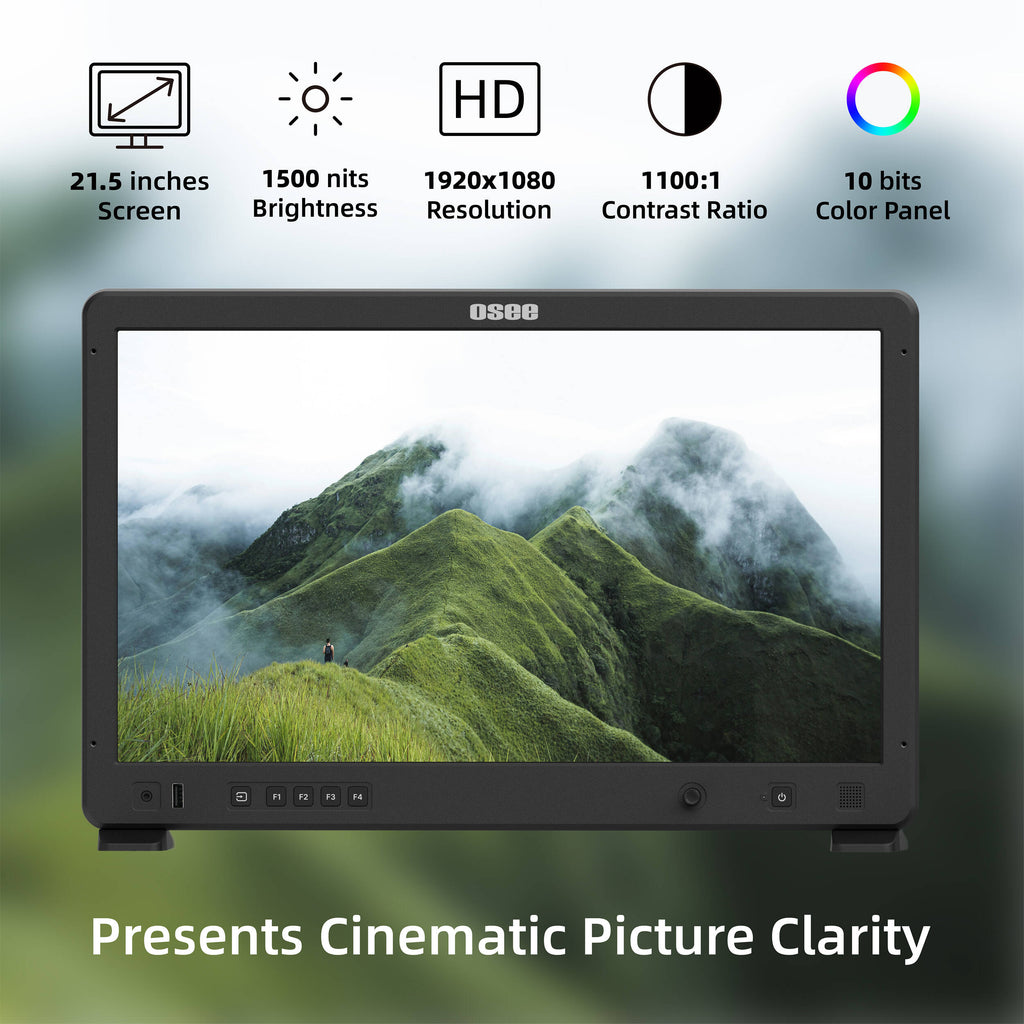

High-Bright Display
With a high 1500 cd/m² brightness level, this OSEE monitor is daylight viewable and includes a sun hood for blocking extraneous light when desired.
IPS LED Panel
The 10-bit color IPS LED panel produces greater depth, enabling you to display your images with precisely the tones you've created.
Multiple Video Inputs/Outputs
- One HDMI input supports up to DCI 4K30.
- Two 3G-SDI inputs and outputs support up to 2K50 and 1080p60.

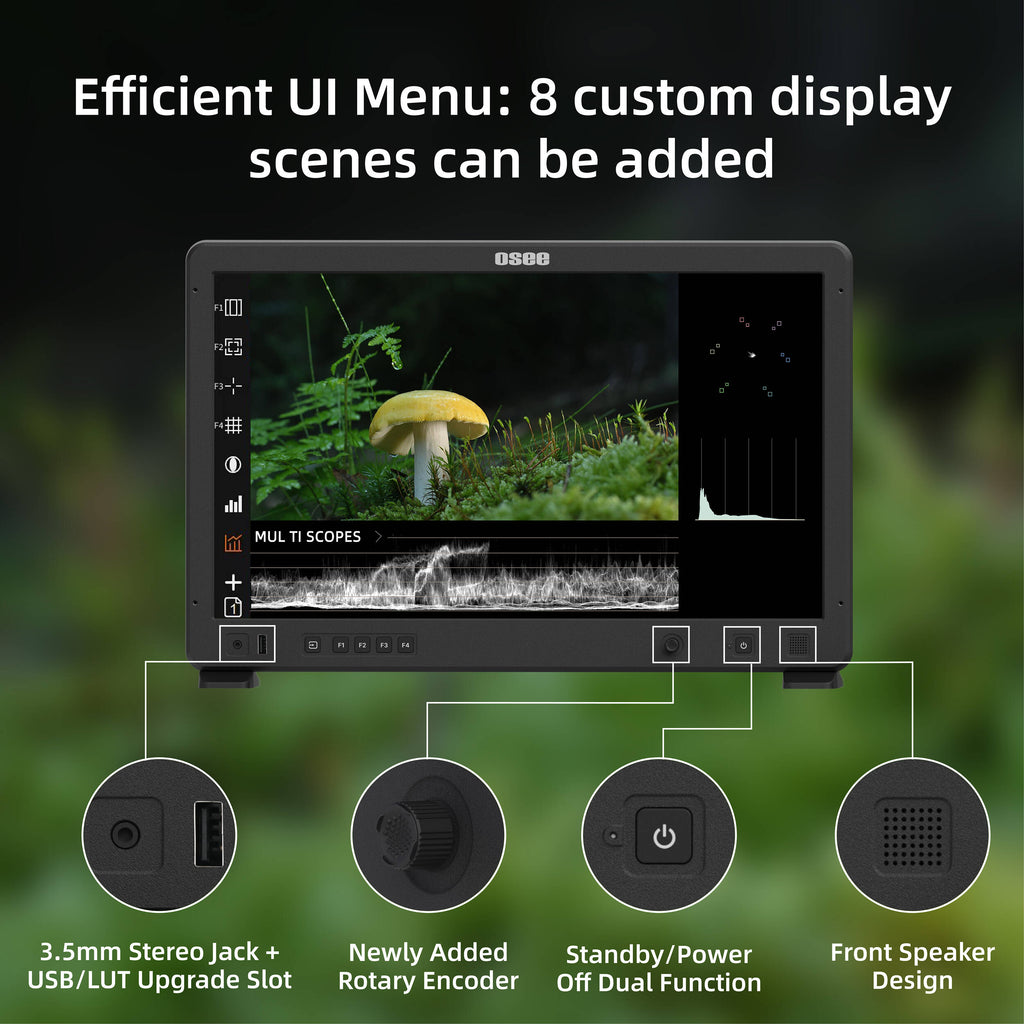

Imaging Tools
- Focus Assist, Focus Peaking
- False Color, Zebra
- Histogram, Vectorscope
- Waveform, Anamorphic De-Squeeze
- Custom Aspect Ratios
- Frame and Center Markers
- Crosshatching
Built-In and Custom 3D LUT Support
The Mega 22S monitor can not only store up to 10 custom LUTs, but it also provides multiple logs, including ones for ARRI, Blackmagic Design, Canon, FUJIFILM, Panasonic, and Sony cameras.
Versatile Power Options
Power this 21.5" monitor using the included plate and a V-mount battery, via the 4-pin XLR power input, or via AC power.
SDI Audio and Timecode
Monitor your embedded audio and use timecode on the SDI video ports.

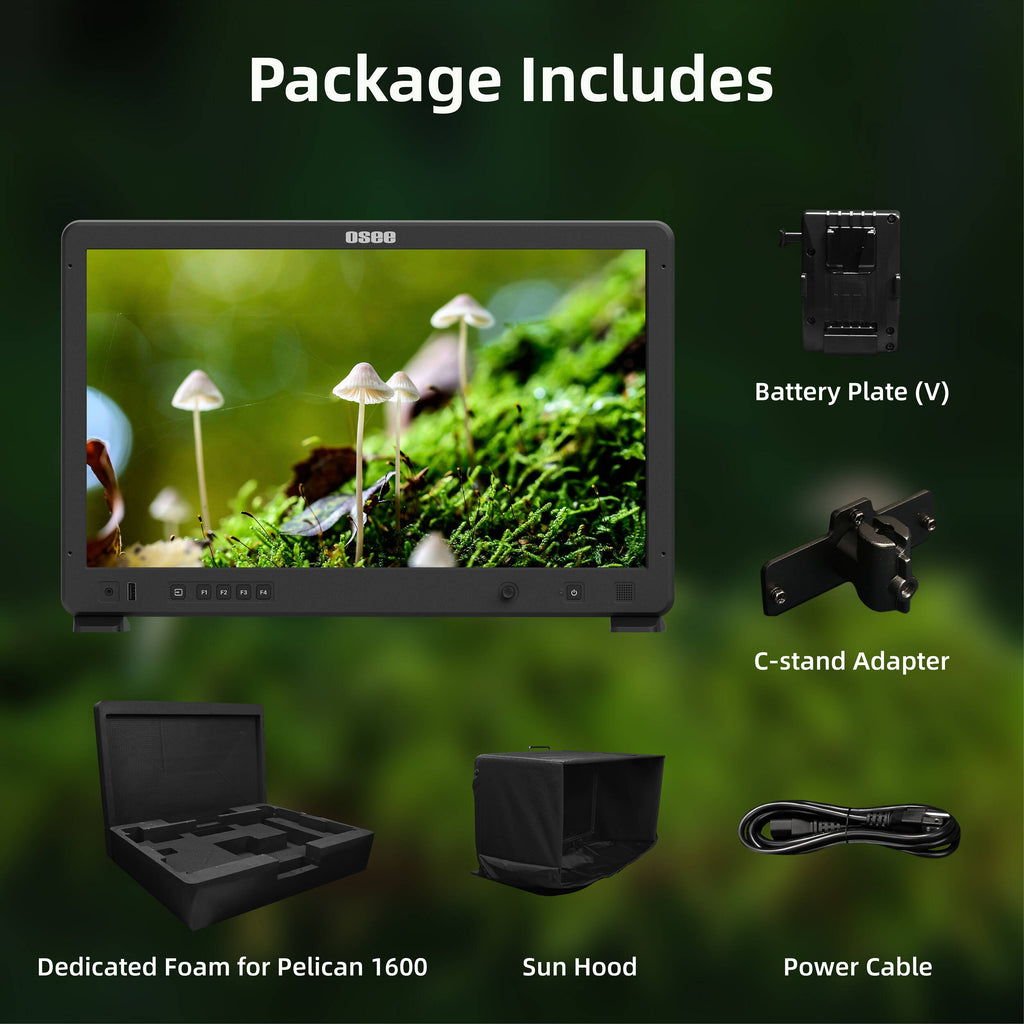

Items Included
- OSEE 22" Mega 22S Production Monitor with V-Mount Kit
- Sun Hood
- V-Mount Battery Plate
- C-Stand Adapter
- Power Cable
- Cheese Plate
- Custom Foam for Pelican 1600 Case
- Limited 1-Year Manufacturer Warranty
Additional Resources
OSEE Mega 22S Specs
Key Specs
| Display Size |
21.5" / 54.6 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Support |
Yes
|
| Video I/O |
2x BNC (3G-SDI) Input
2x BNC (3G-SDI) Output 1x HDMI 1.4 Input |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 50/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 SDI DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50 |
| Battery Type |
1x V-Mount (Interchangeable Mount)
|
| Power Consumption |
45.4 W (Typical)
50.7 W (Maximum) |
| Mounting |
24x Anti-Twist 1/4"-20 Female (Bottom)
4x Anti-Twist 3/8"-16 Female (Bottom) 12x Anti-Twist 1/4"-20 Female (Right) 2x Anti-Twist 3/8"-16 Female (Right) 12x Anti-Twist 1/4"-20 Female (Left) 2x Anti-Twist 3/8"-16 Female (Left) 1x 5/8" Receiver (Back) |
Display
| Panel Type |
LCD
|
| Display Size |
21.5" / 54.6 cm
|
| Screen Area |
18.74 x 10.54" / 476.06 x 267.78 mm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
No
|
| Maximum Brightness |
1500 nits / cd/m2
|
| Contrast Ratio |
1100:1
|
| Color Support |
1.07 Billion Colors
|
| HDR Support |
Yes
|
| Pixels Per Inch (ppi) |
102 ppi
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform
|
Inputs/Outputs
| Video I/O |
2x BNC (3G-SDI) Input
2x BNC (3G-SDI) Output 1x HDMI 1.4 Input |
| Embedded Audio |
SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
1x 1/8" / 3.5 mm Line Input |
| Built-In Speaker |
Mono
|
| Power I/O |
1x XLR 4-Pin (17 VDC) Input
1x IEC Input |
| Other I/O |
1x USB-C
1x USB-A (Firmware/LUT Upload) |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 50/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 SDI DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50 |
| Gamma Curve |
Canon Log, Canon Log 2, Canon Log 3, DCI-P3, FUJIFILM F-Log, HDR-HLG, Nikon N-Log, Panasonic V-Log, Rec 2100 HLG, Rec 2100 PQ, Rec709, REDlogFilm, REDWideGamutRGB, Sony S-Log, Sony S-Log 2, Sony S-Log 3
|
| Video Standard Compliance |
ITU -R BT.709/BT.2020
|
Power
| Input Power |
11 to 17 VDC at 3 A
100 to 240 VAC, 50 / 60 Hz |
| Battery Type |
1x V-Mount (Interchangeable Mount)
|
| Power Consumption |
45.4 W (Typical)
50.7 W (Maximum) |

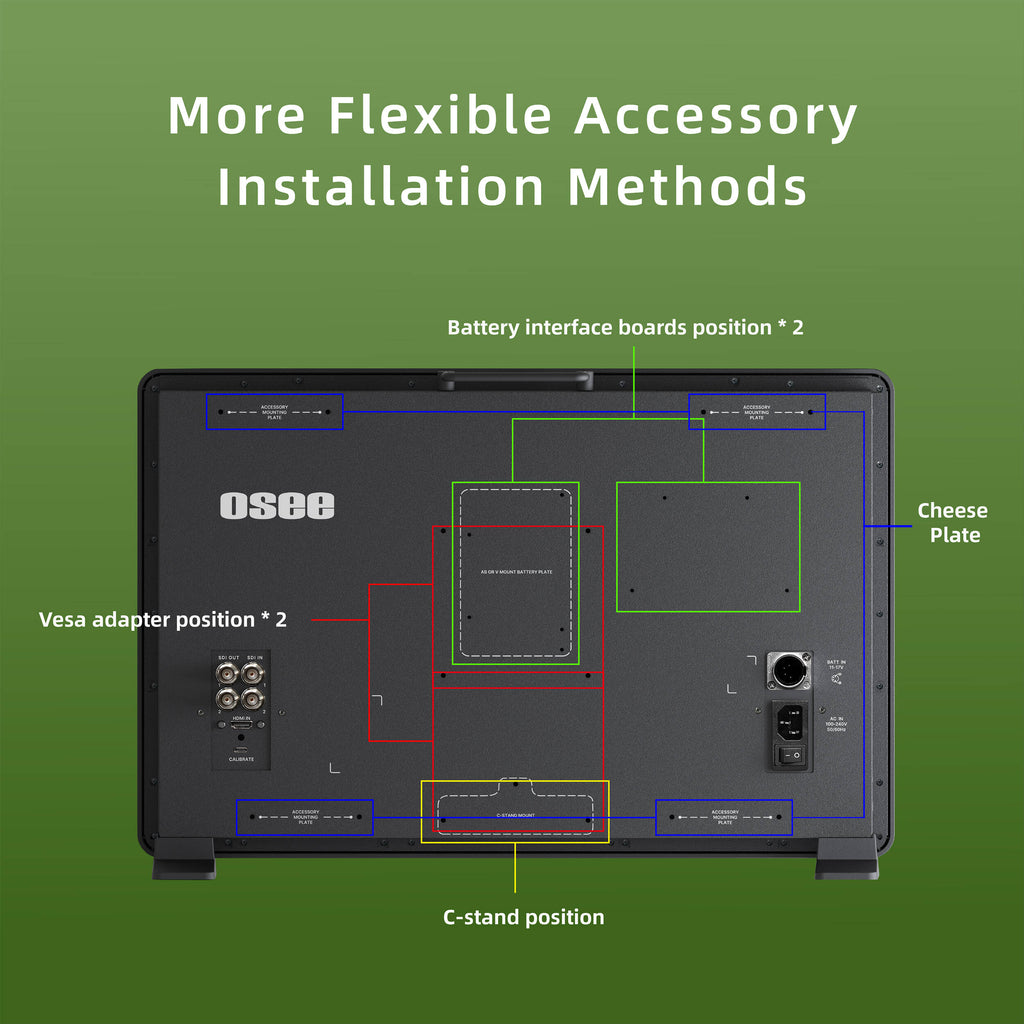

Mounting
| Mounting-Hole Pattern |
100 x 100 mm
|
| Mounting |
24x Anti-Twist 1/4"-20 Female (Bottom)
4x Anti-Twist 3/8"-16 Female (Bottom) 12x Anti-Twist 1/4"-20 Female (Right) 2x Anti-Twist 3/8"-16 Female (Right) 12x Anti-Twist 1/4"-20 Female (Left) 2x Anti-Twist 3/8"-16 Female (Left) 1x 5/8" Receiver (Back) |
General
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Dimensions |
20.4 x 12.6 x 2.9" / 517 x 319 x 74.3 mm
|
| Weight |
14.1 lb / 6.4 kg
|
Packaging Info
| Package Weight |
25 lb
|
| Box Dimensions (LxWxH) |
22.5 x 17.5 x 7.2"
|
