Description
OSEE LCM215-HDR Overview
- 1Description
- 2High-Brightness Display
- 3Multiple Video I/O
- 4Versatile Power Options
- 5Exposure Tools
- 6Framing Tools
- 7Focus Tools
- 8Built-In and Custom 3D LUT Support
- 9Color Management
- 10Audio Tools
The OSEE 21.5" LCM215-HDR+ Field Monitor with V-Mount Battery Plate is a 1500 cd/m² full HD monitor packed with monitoring tools. Whether you prefer to use histograms, waveforms, false colors, or zebras, this field monitor has the right tool to help you nail the optimal exposure. The monitor also supports anamorphic de-squeeze and custom frame guides for anamorphic shooters. Packaged with a V-mount battery plate, sun hood, C-stand mount, and desktop stand, this OSEE field monitor is ready to go in just about any production environment.
High-Brightness Display
At 1500 cd/m², this OSEE monitor is daylight viewable and, in some situations, capable of maintaining its 1000:1 contrast under direct sunlight without a sun hood.
Multiple Video I/O
- One HDMI input
- One analog BNC input
- Two 3G-SDI inputs
- One 3G-SDI output
Versatile Power Options
Power the 21.5" monitor using the included plate and a V-mount battery, via the 4-pin XLR power input, or using AC power
Exposure Tools
- False Color
- Zebra
- Histogram
- Vectorscope
- Waveform
Framing Tools
- Anamorphic De-squeeze: 1.33x,1.5x, 1.66x, 1.8x, 2x, 2x Mag
- Custom Aspect Ratios
- Area Marker
- Center Marker
Focus Tools
- Focus Assist (red/green/blue/mono; sensitivity value 0-100 adjustable)
- Peaking (level 1-16 adjustable)
Built-In and Custom 3D LUT Support
Can not only store up to 16 custom LUTs, but also has built-in SDR and HDR LUTs for ARRI, RED, Sony, Panasonic, Canon, Blackmagic Design, Fujifilm, DJI, GoPro, and JVC.
Color Management
Features several settings to adjust the color parameters to meet your production's needs, including:
- Gamma (PQ, HLG)
- Color Temperature (D55, D61, D93, DCI)
- Color Space (ITU709, EBU, SMPTE-C, P3, ITU2020)
Audio Tools
Monitor your audio with support for up to 16 channels of embedded audio on SDI and two channels of embedded audio on HDMI.
UPC: 650971522317

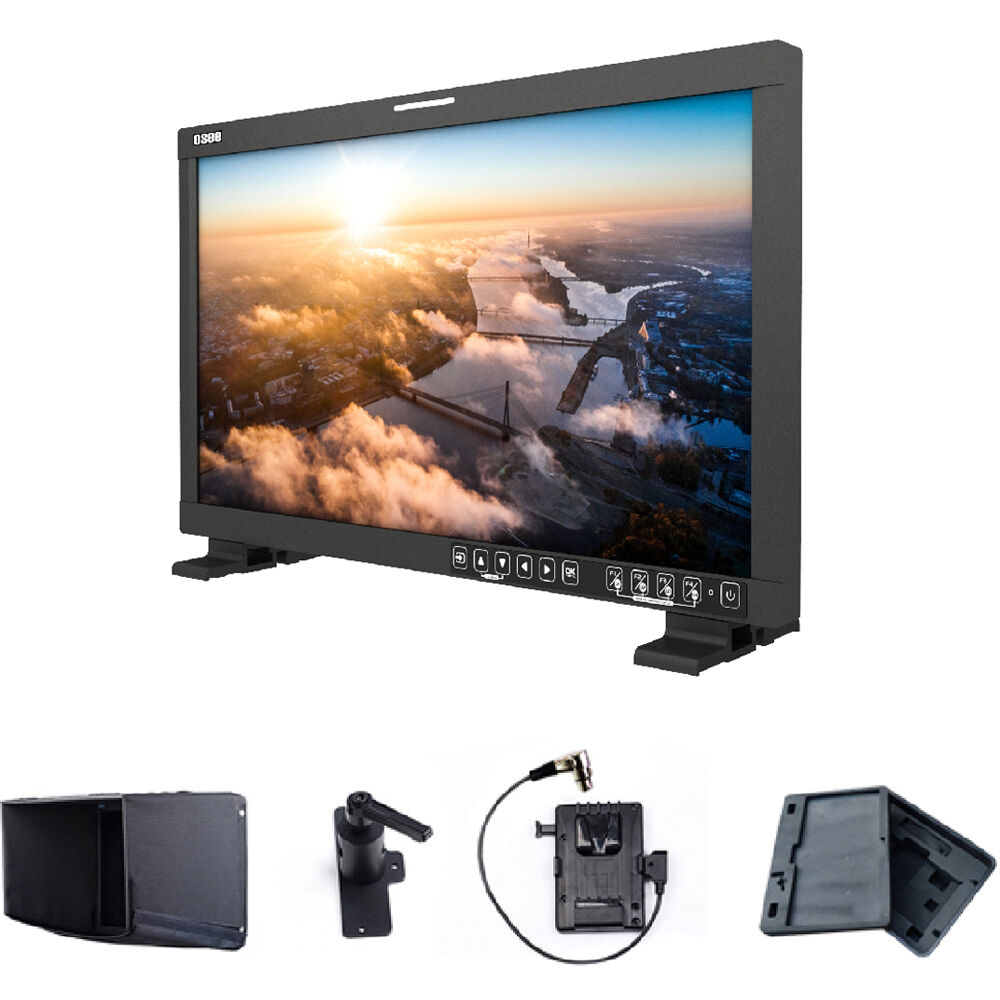

In the Box
- OSEE 21.5" LCM215-HDR+ Field Monitor with V-Mount Battery Plate
- Sun Hood
- V-Mount Battery Plate
- C-Stand Adapter
- Desktop Stand Feet
- Custom Foam Mold
Table of Contents
- Description
- High-Brightness Display
- Multiple Video I/O
- Versatile Power Options
- Exposure Tools
- Framing Tools
- Focus Tools
- Built-In and Custom 3D LUT Support
- Color Management
- Audio Tools
OSEE LCM215-HDR Specs
Display
| Panel Type | Mini-LED LCD |
| Display Size | 21.5" / 54.6 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 1500 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 102 ppi |
| Response Time | 25 ms |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Green Only, Histogram, RGB Parade, Red Only, Screen Markers, Vectorscope, Waveform, Zebra |
Inputs / Outputs
| Video I/O | 1 x HDMI Input 2 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output 1 x BNC (Composite) Input |
| Embedded Audio | HDMI: 2-Channel SDI: 16-Channel |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Power I/O | 1 x XLR 4-Pin (3 A / 17 VDC) Input 1 x IEC Input |
| Other I/O | 1 x USB-A 2.0 Input 2 x RJ45 (RS-485) Input/Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Video Format | HDMI 1080p: 29.97/25/23.98 1080PsF: 30/29.97/25/23.98 1080i: 59.94/50 720p: 59.94/50 SDI DCI 2K: 59.94/50/29.97/25/23.98 1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 720p: 59.94/50/29.97/25/23.98 480i: 60 576i: 50 |
| Gamma Curve | Canon Log 2, Canon Log 3, Panasonic V-Log, REDlogFilm, Sony S-Log 2, Sony S-Log 3 |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 11 to 17 VDC at 3 A |
| Battery Type | 1 x V-Mount (Interchangeable Mount) |
| Power Consumption | 48 W |
Environmental
| Operating Temperature | 32 to 122°F / 0 to 50°C |
General
| Dimensions | 20.4 x 12.6 x 2.9" / 517 x 319 x 74.3 mm |
Packaging Info
| Package Weight | 21 lb |
| Box Dimensions (LxWxH) | 22.6 x 17.7 x 7.7" |
