| ₹ 280.0 includes GST and import duties. | |
| B2B customers can avail ₹ 42.7 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

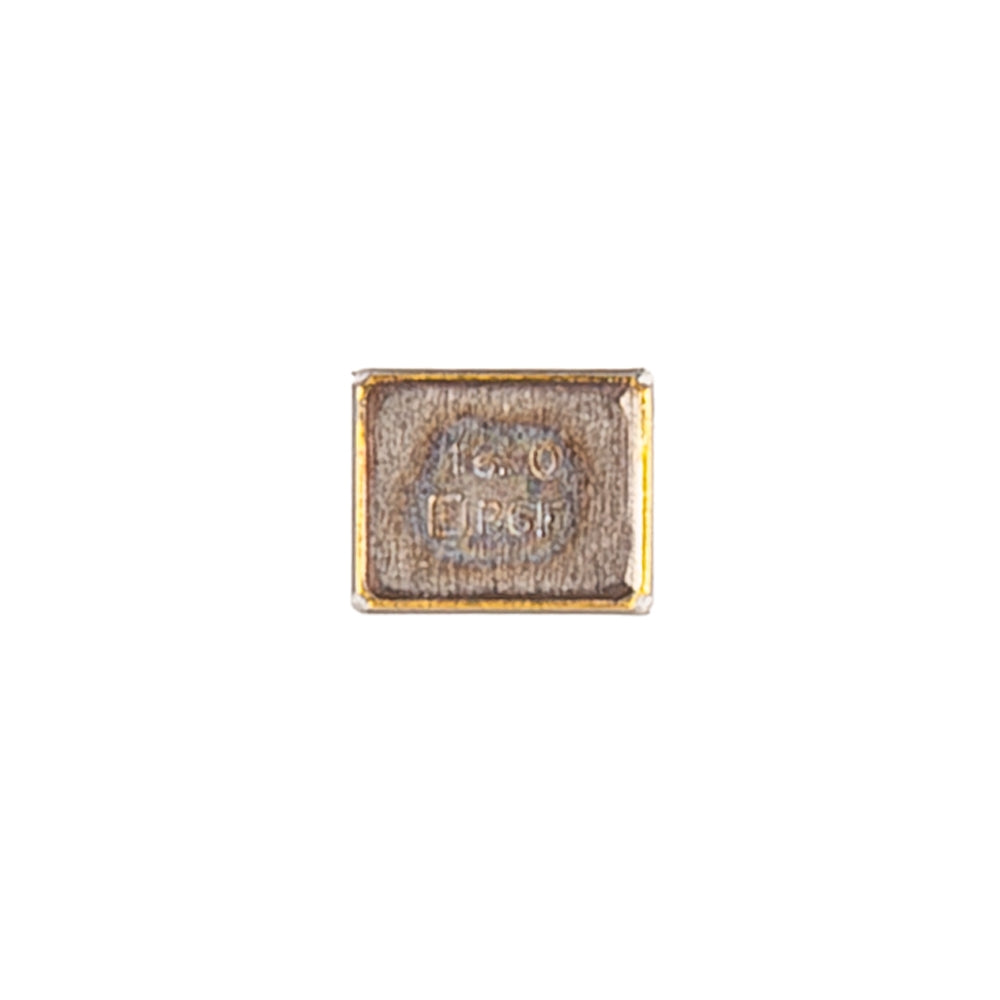

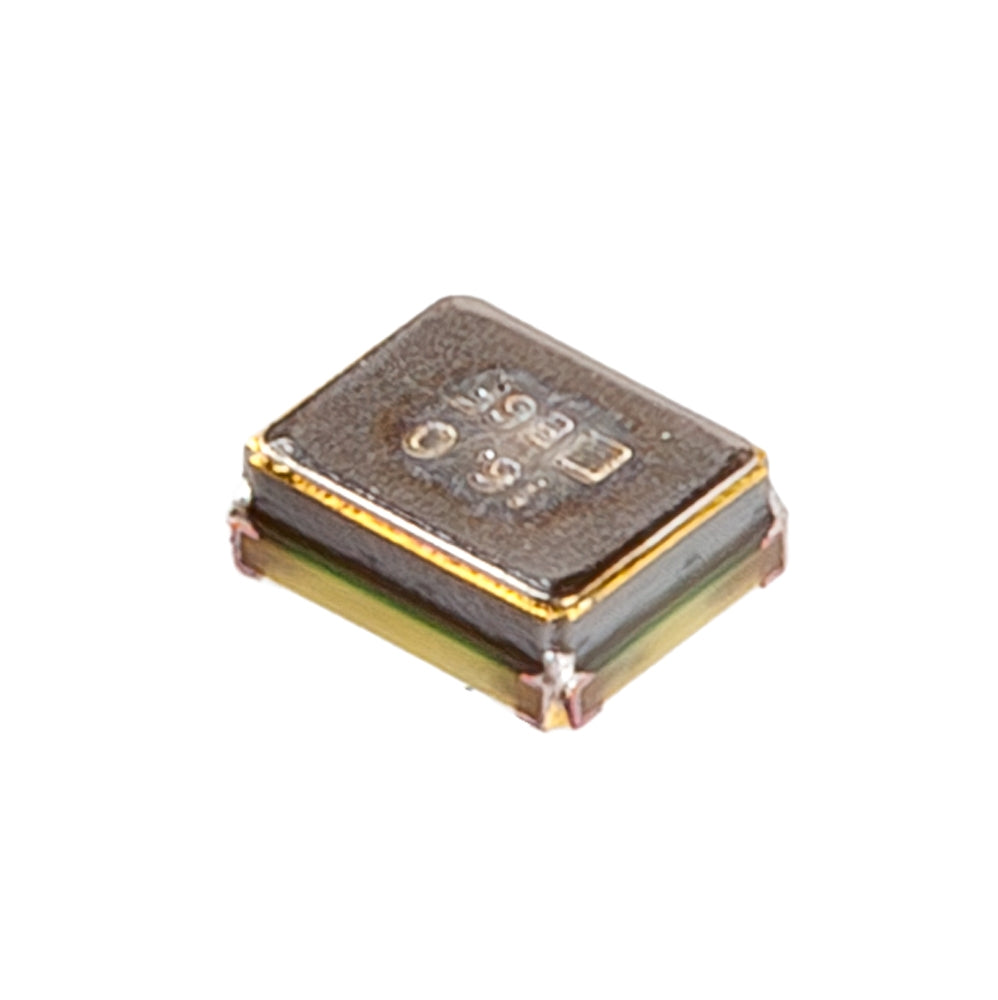

This is a standard SMD Crystal Oscillator that features a 1.6V supply voltage and 50ppm.
Features & Specs
- Base Resonator: Crystal
- Type: XO (Standard)
- Frequency: 16MHz
- Function: Standby (Power Down)
- Output: CMOS
- Voltage - Supply: 1.6V ~ 3.63V
- Frequency Stability: ±50ppm
- Operating Temperature: -40°C ~ 85°C
- Current - Supply (Max): 6mA
- Mounting Type: Surface Mount

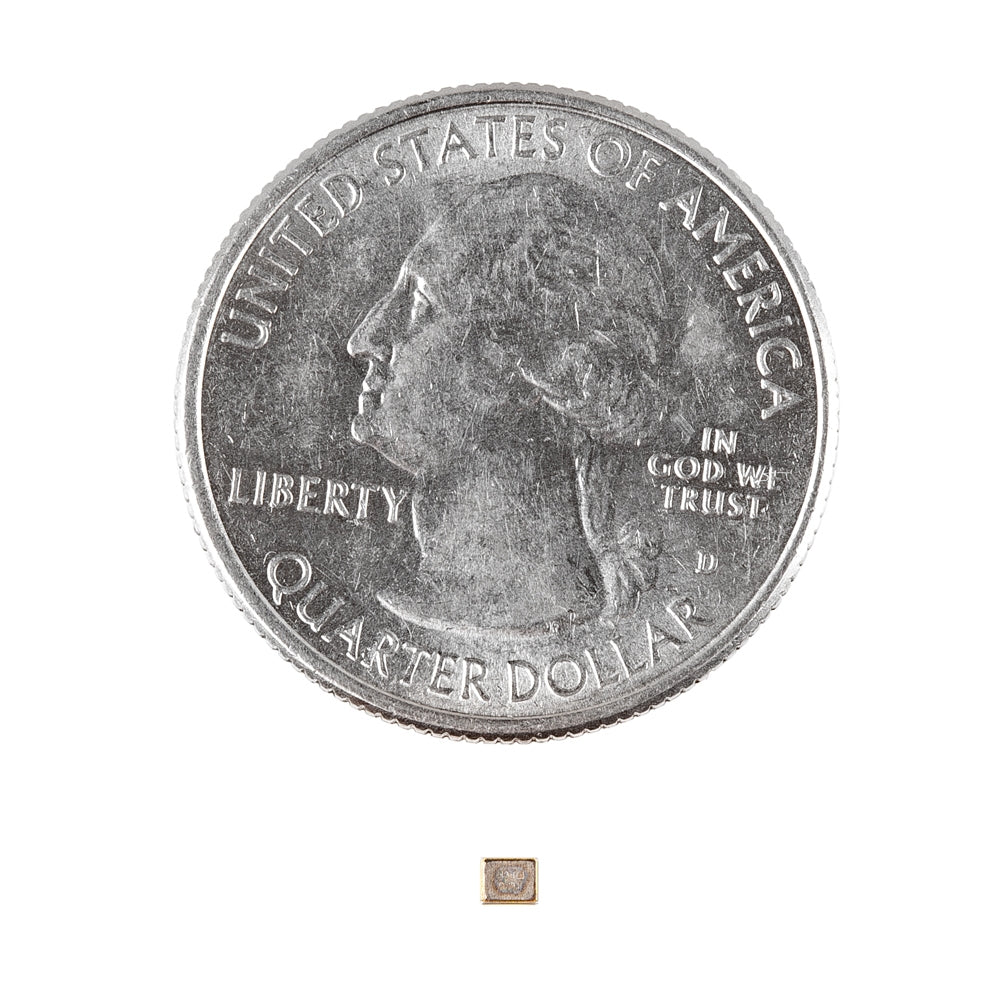

- Dimensions: 0.079" L x 0.063" W (2mm x 1.6mm)
- Height - Seated (Max): 0.031" (0.80mm)
- Current - Supply (Disable) (Max): 5µA
- Mfg #: KC2016K16.0000C1GE00
Features & Specs
- Base Resonator: Crystal
- Type: XO (Standard)
- Frequency: 16MHz
- Function: Standby (Power Down)
- Output: CMOS
- Voltage - Supply: 1.6V ~ 3.63V
- Frequency Stability: ±50ppm
- Operating Temperature: -40°C ~ 85°C
- Current - Supply (Max): 6mA
- Mounting Type: Surface Mount
- Dimensions: 0.079" L x 0.063" W (2mm x 1.6mm)
- Height - Seated (Max): 0.031" (0.80mm)
- Current - Supply (Disable) (Max): 5µA
- Mfg #: KC2016K16.0000C1GE00
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 274.4 |
| 3-5 | ₹ 271.6 |
| 5-10 | ₹ 266.0 |
| 10+ | ₹ 260.4 |
Bulk discount will be automatically applied during checkout based on quantity.
