Ortofon Replacement Scratch Stylus (Red)

Spherical Stylus

Increased Tracking

Reinforced Rubber Suspension

The red Ortofon Replacement Scratch Stylus is spherical by design, provides increased tracking ability, and features reinforced rubber suspension. This ensures remarkable sound quality and lengthens the stylus' life when working with higher tracking forces. With solid bass reproduction and extended highs, the Scratch stylus can be used for any music style.

• Universal mount fitting a wide range of S-shaped tonearms
• Correct Baerwald alignment with the major part of tonearms with universal mount
• Spherical stylus minimizes scratching
• Increased tracking ability
• Reinforced rubber suspension

Output Voltage	7 mV at 1 kHz, 5 cm Per Second
Channel Balance	1.5 dB at 1 kHz
Channel Separation	25 dB at 1 kHz 15 dB at 15 kHz
Frequency Range	20 Hz to 20 kHz, at -3 dB
Frequency Response	20 Hz to 15 kHz, at  +3 dB to -2 dB
Tracking Ability	Recommended Tracking Force: 80 ?m at 315 Hz
Compliance	Dynamic Lateral: 6 ?m/mN
Stylus Type	Spherical
Stylus Radius	Tip: R 18 ?m
Tracking Force	Range: 3 to 5 g, 30 to 50 mN Recommended: 4 g, 40 mN
Tracking Angle	20°
Internal Impedance	DC Resistance: 750 Ohms
Internal Inductance	450 mH
Load Resistance	Recommended: 47 Kilohms
Load Capacitance	Recommended: 200 to 600 pF

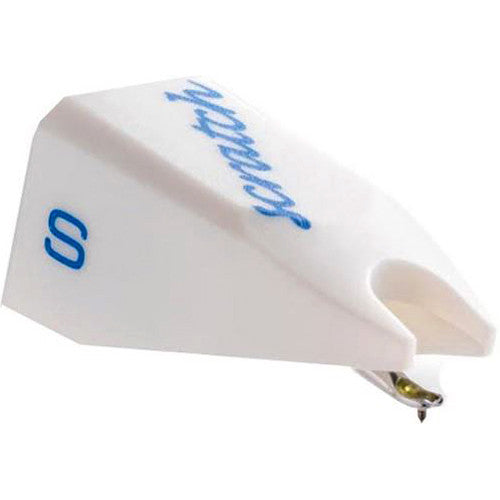

Replacement Stylus	Scratch White
Cartridge Weight	0.2 oz / 5 g
