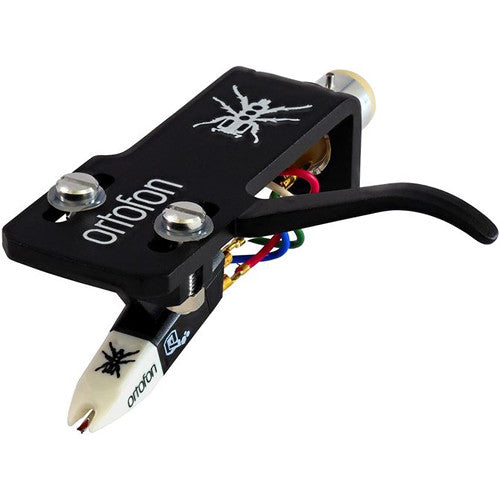

Ortofon OM Q.Bert SH-4 Pre-Mounted Cartridge with Spherical Stylus (Black)

Includes Spherical Cartridge and Stylus

Pre-Mounted to Headshell

QBert Signature Cartridge

Black SH-4 Headshell

The ready-to-install Ortofon OM Q.Bert SH-4 Pre-Mounted Cartridge comes compete and with the OM Q.Bert cartridge and spherical stylus pre-mounted to a black SH-4 headshell. Co-designed by world renowned DJ / turntablist QBert, the cartridge and stylus are engineered to handle tough turntablist techniques, as well as basic scratching and back cueing while delivering superb sound quality and minimal vinyl wear.

• Pre-mounted on Headshell
• Spherical stylus
• Co-designed by QBert

Output Voltage	11 mV, 5 cm/s at 1 kHz
Channel Balance	1.5 dB at 1 kHz
Channel Separation	22 dB at 1 kHz
Frequency Range	20 Hz to 18 kHz, -3 dB
Frequency Response	20 Hz to 18 kHz, +/-2 dB
Tracking Ability	Recommended Tracking Force: 980 ?m at 315 Hz
Compliance	12 ?m/mN, dynamic, lateral
Stylus	Type: Spherical Tip Radius: 18 ?m
Tracking Force	2 to 4 g Recommended: 3.0 g, 30 mN
Angle	Tracking: 20°
Impedance	Internal: 1.68 Kilohms, DC Resistance
Inductance	Internal: 920 mH
Recommended Load Impedance	47 Kilohms
Recommended Load Capacitance	200 to 400 pF
Weight	0.2 oz / 5 g
