Description

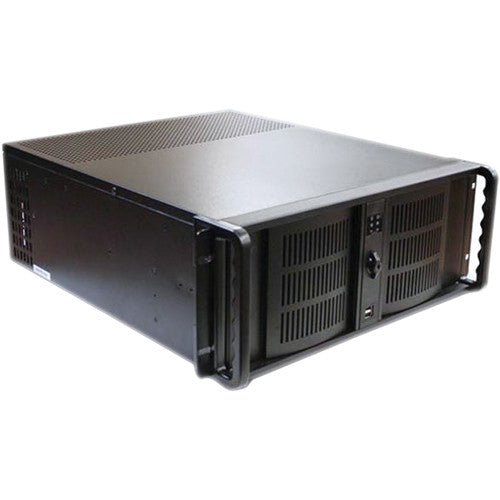

Orion Images OIC HD Multiviewer System Overview
The 4-in / 4-out OIC-MP404 HD Multiviewer System from Orion Images is a multiviewer video wall system which provides you with a user-friendly controller software for configuring your screen layout. This unit features 4 inputs and 4 outputs for video, and supports audio through the HDMI port (only).
The OIC-MP404 enables you to share multiple sources in a collaborative environment for video capture for streaming, recording, or presentation applications. The video capture card provides a high-performance, high-density video capture solution for mission-critical applications that require high capture bandwidth. The video wall could be used in a command center, traffic management, financial institutions, power and utilities, security, entertainment, and more. The OIC-MP404 includes an optical mouse, DisplayPort to DVI adapters, and a keyboard.
Video Wall Controller
Video Wall Controller Software
In the Box
- Orion Images OIC-MP404 HD Multiviewer System (4-In / 4-Out)
- Optical Mouse
- DisplayPort to DVI Adapters
- Keyboard
- Limited 3-Year Warranty
Orion Images OIC HD Multiviewer System Specs
| Frame | Black, 4RU |
| Operating System | Windows 7 Professional |
| Motherboard | Intel chipset |
| Processor | Intel Core i7 |
| System Bus | 1333 MHz |
| RAM | 8 GB DDR3 |
| DMA Data Transfer Bandwidth | Per Card: 800 MB/sec per capture processor, 3.2 GB/sec total |
| Frame Buffer | 4 x 256 MB |
| CD/DVD Drive | DVD-RW ROM drive Speed: 18x |
| Network Card | 1 x Integrated Intel PRO 10 / 100 / 1000 |
| Video Card | Onboard video (VGA output) |
| Audio Support | HDMI input only |
| Number of PCI Slots | 6 x PCIe |
| Input | 1 x 4-channel HD capture card (4 input channels), DVI |
| Output | 1 x 4-Channel output card (4 output channels) 4 x DisplayPort 1.1a video ports providing up to 359 Mpx/sec at 24-bit |
| HDD | 500 GB Hard drive |
| Cooling Fans | 1 x Processor fan 2 x 4.7" (120.0 mm) fans |
| Power Supply | 500 W redundant power supply |
| Power | 115 VAC, 12 A |
| Dimensions | 19 x 7 x 21" (48.3 x 17.8 x 53.3 cm) |
| Weight | 45.0 lb (20.4 kg) |
Orion Images OIC HD Multiviewer System Reviews
