| ₹ 64805.0 includes GST and import duties. | |
| B2B customers can avail ₹ 9882.76 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Orion Images 24RPE Overview

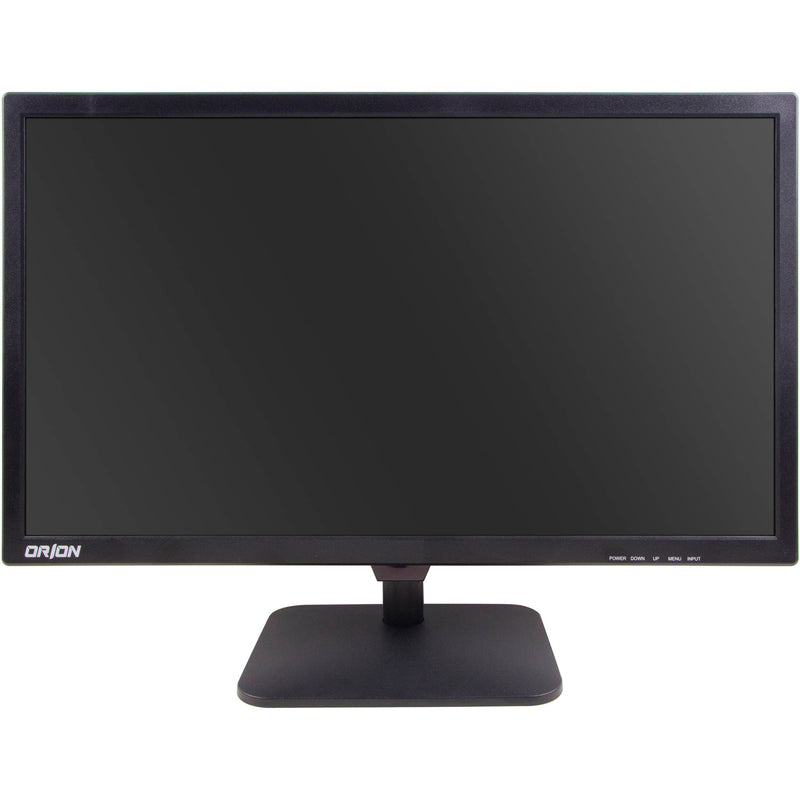

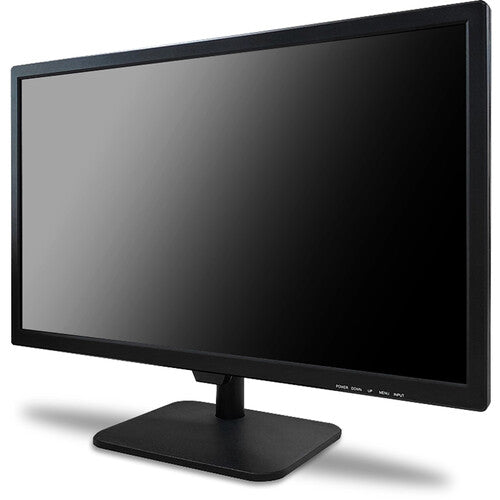

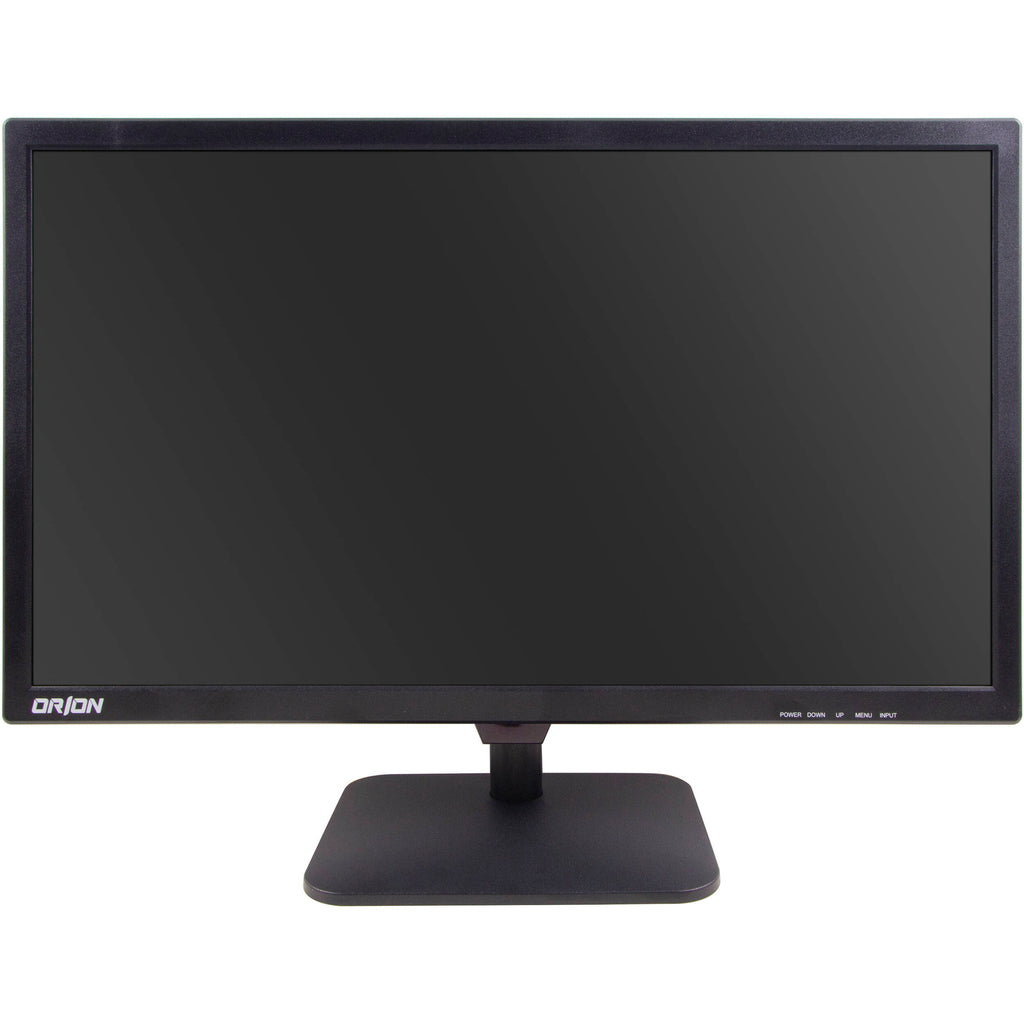

Get reliable 24/7 operation with the Orion Images 24RPE 24" PoE Monitor Plus Additional Lan Out. Designed for CCTV monitoring, the 24RPE is a 250 nits bright, Full HD display, with PoE/network function over a single Ethernet cable and available RJ45 PoE output. Connect video sources via HDMI digital input or BNC and VGA analog inputs, with a BNC output available as well. A desk stand is included, or it can be mounted with compatible wall, rack, and ceiling mounts sold separately.
Power over Ethernet (PoE)

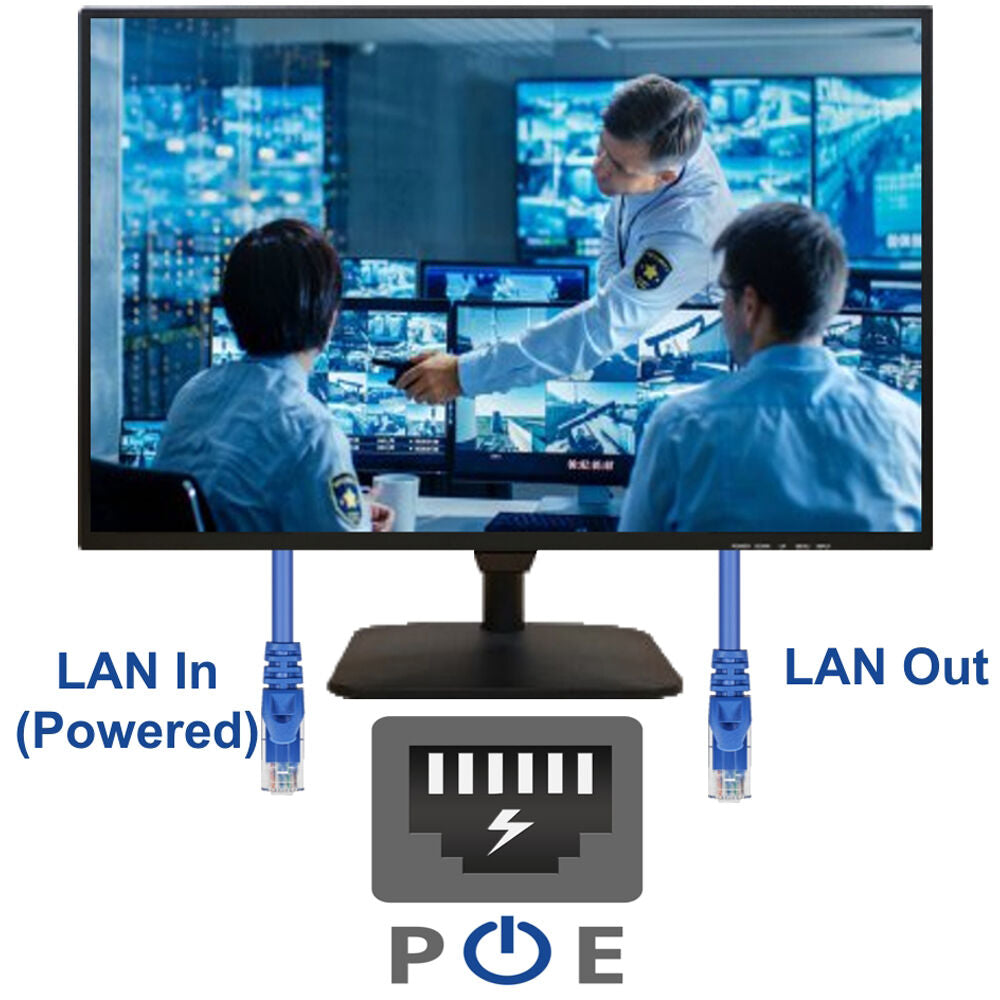

The ORION Images PoE is a technology that lets network cables supply electrical power. Delivery is intelligent and designed to protect network equipment from overload or underpowering. A PoE output is also available to help simplify multi-monitor setups.
On-Screen Display (OSD) Control
The 24RPE comes equipped with on-screen display controls to adjust brightness, contrast, horizontal/vertical position, clock, phase, color, and language.
UPC: 836228003710
In the Box
- Orion Images 24RPE 24" Full HD PoE Monitor Plus Additional Lan Out
- Power Cable
- Power Adapter
- Remote Control
- Limited 3-Year Manufacturer Warranty
Additional Resources
Orion Images 24RPESpecs
Key Specs
| Display Size |
23.8"
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
250 nits / cd/m2
|

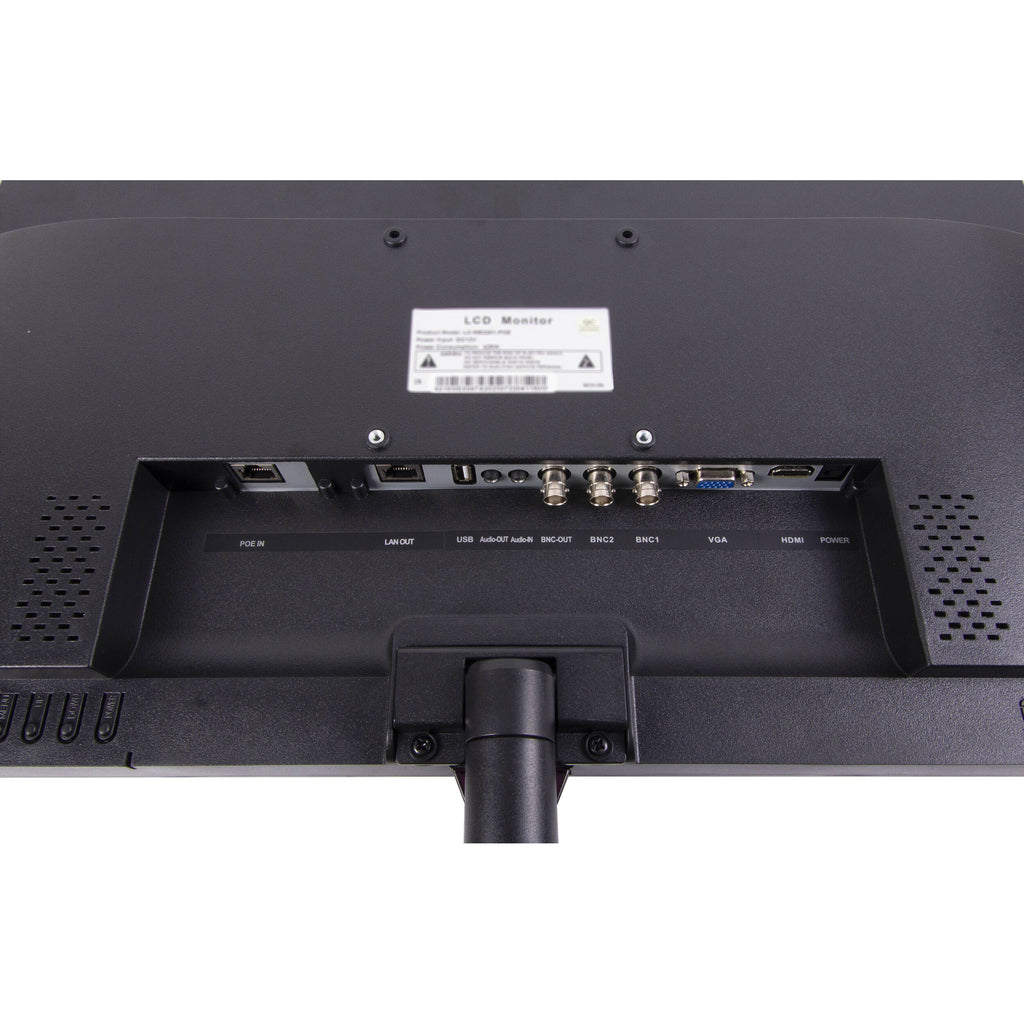

| Inputs |
2x BNC (CVBS)
1x HDMI 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
1x BNC (CVBS)
1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Service)
|
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| Other I/O |
1x RJ45 Power Input
|
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
23.8"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
250 nits / cd/m2
|
| Lighting System |
Backlit LED
|
| HDR Support |
No
|
| Contrast Ratio |
1000:1
|
| Response Time |
5 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| Viewing Angle (H x V) |
170 x 160°
|
| Screen Area |
18.77 x 10.56" / 476.64 x 268.11 mm
|
| Pixels Per Inch (ppi) |
93 ppi
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
2x BNC (CVBS)
1x HDMI 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
1x BNC (CVBS)
1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Service)
|
| Ethernet I/O |
1x RJ45 Gigabit Ethernet
|
| Other I/O |
1x RJ45 Power Input
|
| Built-In Speakers |
No
|
Hardware
| Mobile App Compatible |
No
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Maximum: < 35.0 W
|
| Input Power |
12 VDC at 3 A
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
External
|
General
| Operating Conditions |
-4 to 140°F / -20 to 60°C
|
| Mounting-Hole Pattern |
100 x 100 mm
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
21.8 x 15.7 x 7.1" / 553.7 x 399 x 180 mm (with Stand)
21.8 x 13 x 1.9" / 553.7 x 331 x 48.4 mm (without Stand) |
