Description
Orion Images 19RTCSR Overview

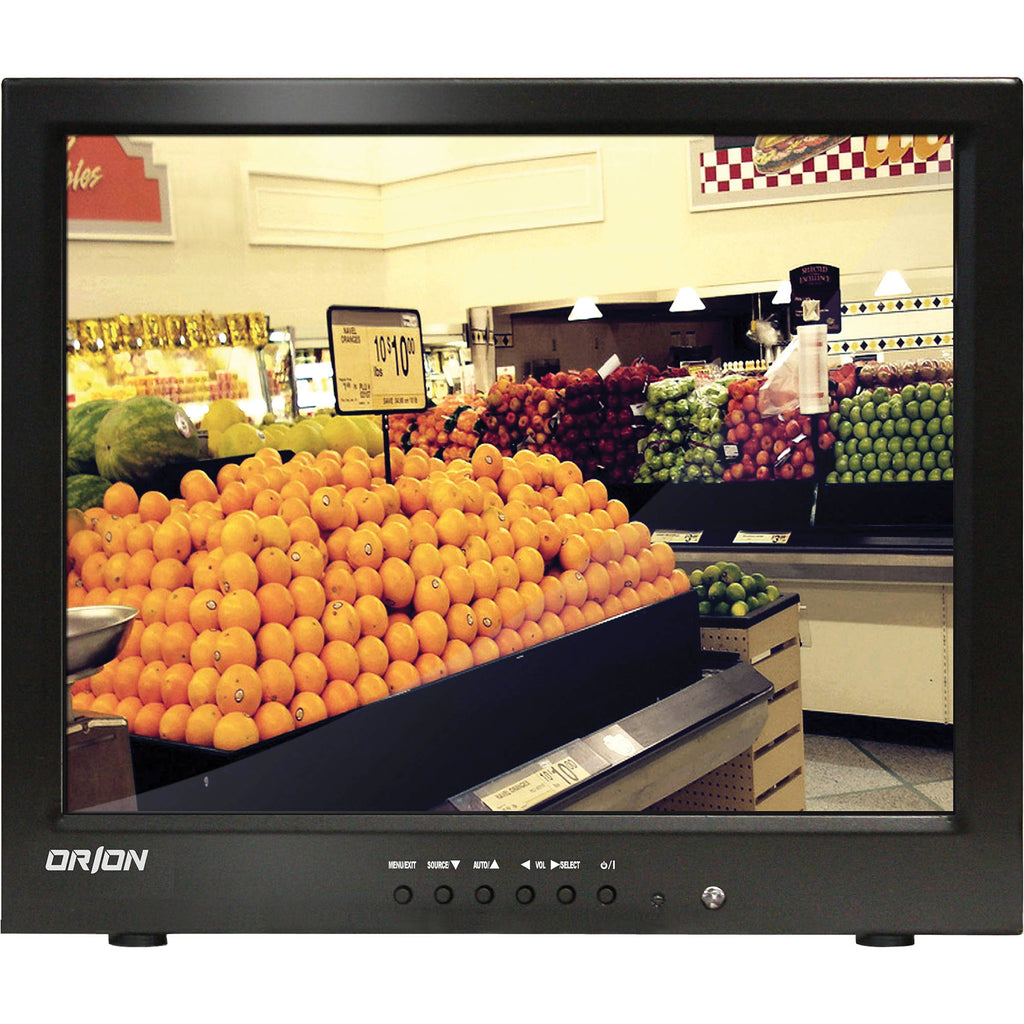

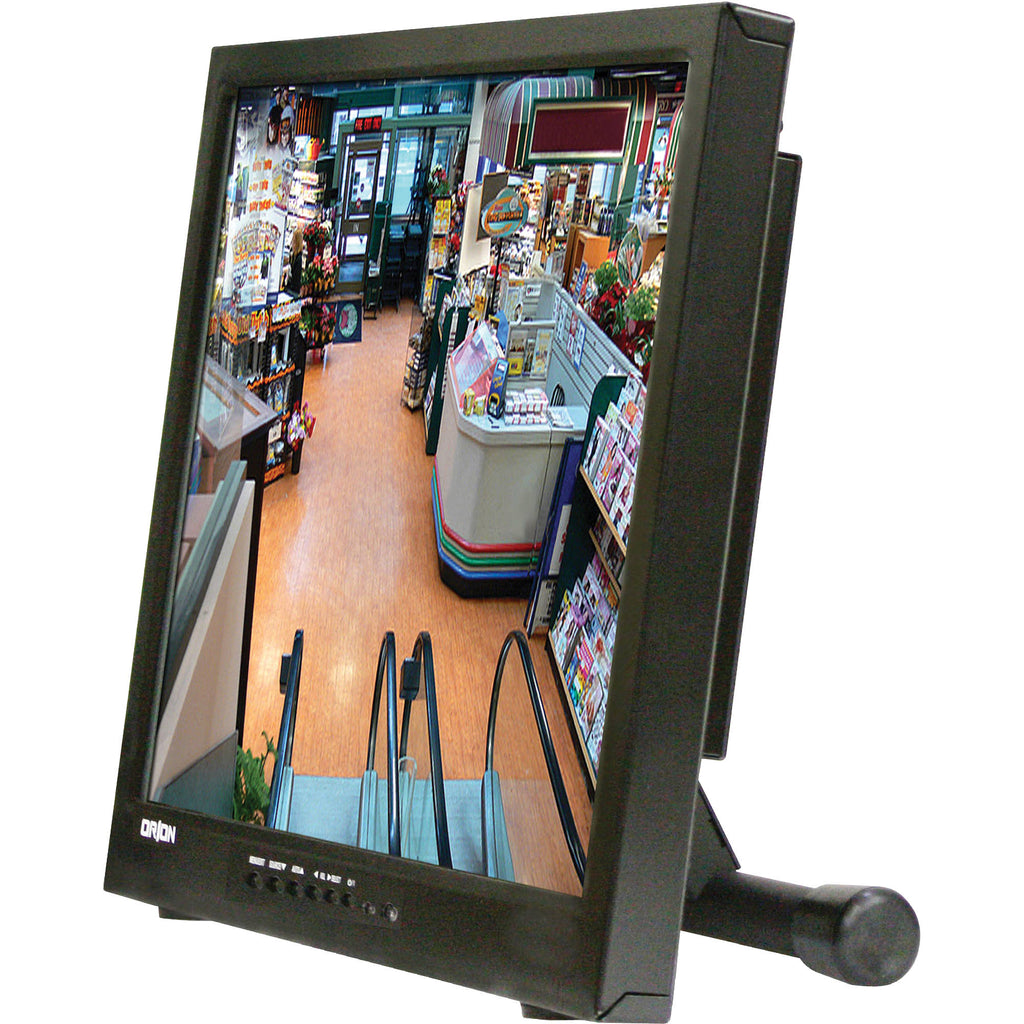

The Orion Images 19RTCSR LCD CCTV Monitor (Transreflective Screen) features a 19" (48.26 cm) screen and is designed for round-the-clock operation. Along with support for up to 16.7 million colors, the monitor offers a maximum resolution of 1280 x 1024 pixels at 60 Hz. The LCD offers 300Nits brightness, 1000:1 contrast and has a response time of less than 5ms.
Featured 3D Comb filter reduces dot crawl to ensure sharp pictures with less noise and a de-interlace filter converts interlaced video into a non-interlaced form for enhanced performance. Picture-in-Picture (PIP) feature allows a video footage to be displayed on the entire TV screen while 1 or more other videos can be displayed in inset windows. The CCTV monitor features a trigger sensor and auto source sequencing. Transreflective technology provides enhanced viewability under varied lighting conditions including direct sunlight.

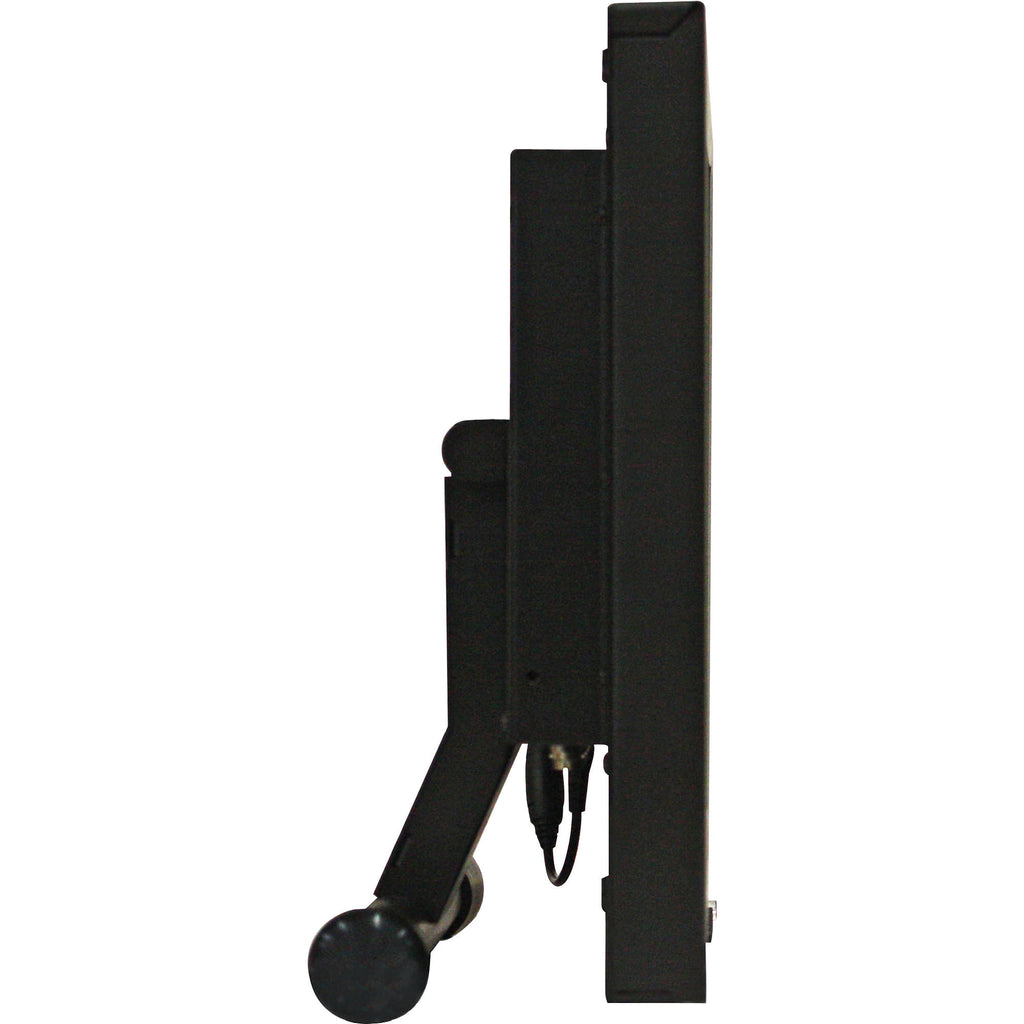

A protection glass protects the LCD screen from scratches and accidental impacts. The 19RTCSR has a metal chassis, a tilt back stand, 2 built-in speakers and comes with remote control. Offering multiple mounting options, the 19RTCSR LCD CCTV Monitor can be fixed on walls, ceilings or racks. The LCD provides multi-language support to ensure user-friendliness.
In the Box
- Orion Images 19RTCSR LCD CCTV Monitor (Transreflective Screen)
- Built-in Speakers (2W x 2)
- 1-year Warranty on Parts and Labor
Orion Images 19RTCSR Specs
| Screen Size | 19" (48.26 cm) |
| Viewing Area | 14.8 x 11.85" (376 x 301 mm) |
| Pixel Type | Active Matrix TFT |
| Max Resolution | 1024 x 768 at 75Hz |
| Pixel Pitch | 0.011 x 0.011" (0.297 x 0.297mm) |
| Brightness | 300cd/m² |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 5 : 4 |
| Viewing Angle | 160° / 160° |
| Display Colors | 16.7 Million |
| Response Time | < 5ms |
| Video System | NTSC / PAL |
| Frequency | Horizontal: 31-64 KHz(H) Vertical: 55-75 KHz(V) |
| Video I/O | BNC- 2/2 S-video - 1/1 |

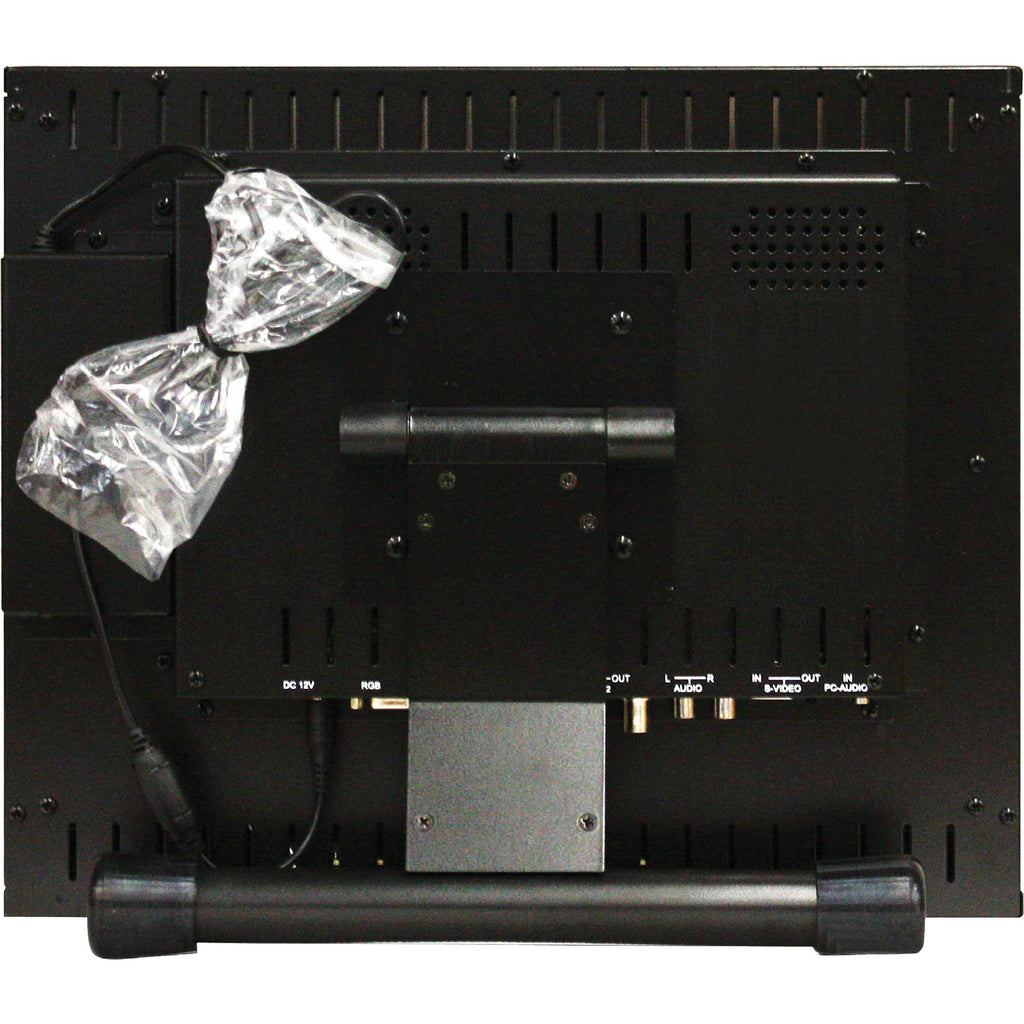

| Inputs | RGB In(15Pin D-Sub) - 1 Component - 1 DVI In/ HDMI In - 1/1 Audio In/ Out(RCA Type) - 2/1 PC Stereo In - 1 |
| Remote Control | Yes |
| Speakers | Built-in (2W x 2) |
| Filter | 3D Comb Filter / Deinterlace |
| LCD Protection Glass | Yes |
| VESA DDC Compatible | Yes |
| Supported Languages | English, Spanish, French, German, Italian, Portuguese, Nederland |
| Color | Black |
| Material | Steel |
| Tilt/Swivel Stand | Yes |
| MTBF | 30,000 Hours (Approx.) |
| Regulations | TUV-NRTL(=UL), CB, FCC(A), CE-Emc(LVD) |
| Power | Consumption: - < 45W Electrical Ratings AC100 - 240V(50/60Hz), DC 12V / 3.5A |
| Operating Temperature | 50 - 104°F (10 - 40°C) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Mounts | VESA Mounts Size 3.93 x 3.93"/100 x 100 mm (BS M4 x 0.39"/10 mm Screw) |
| Weight | Net - 15.8lbs (7.17Kg) Gross - 19.8lbs (9Kg) |
| Dimensions (WxHxD) | Outline Dimension - 16.87 x 14.96 x 3.26" (428.5 x 380.2 x 83 mm)Packaging Dimension - 21.25 x 19.09 x 7.08" (540 x 485 x 180 mm) |
| Package Weight | 15.27 lb |
| Box Dimensions (LxWxH) | 19.7 x 18.7 x 9.7" |
