Description

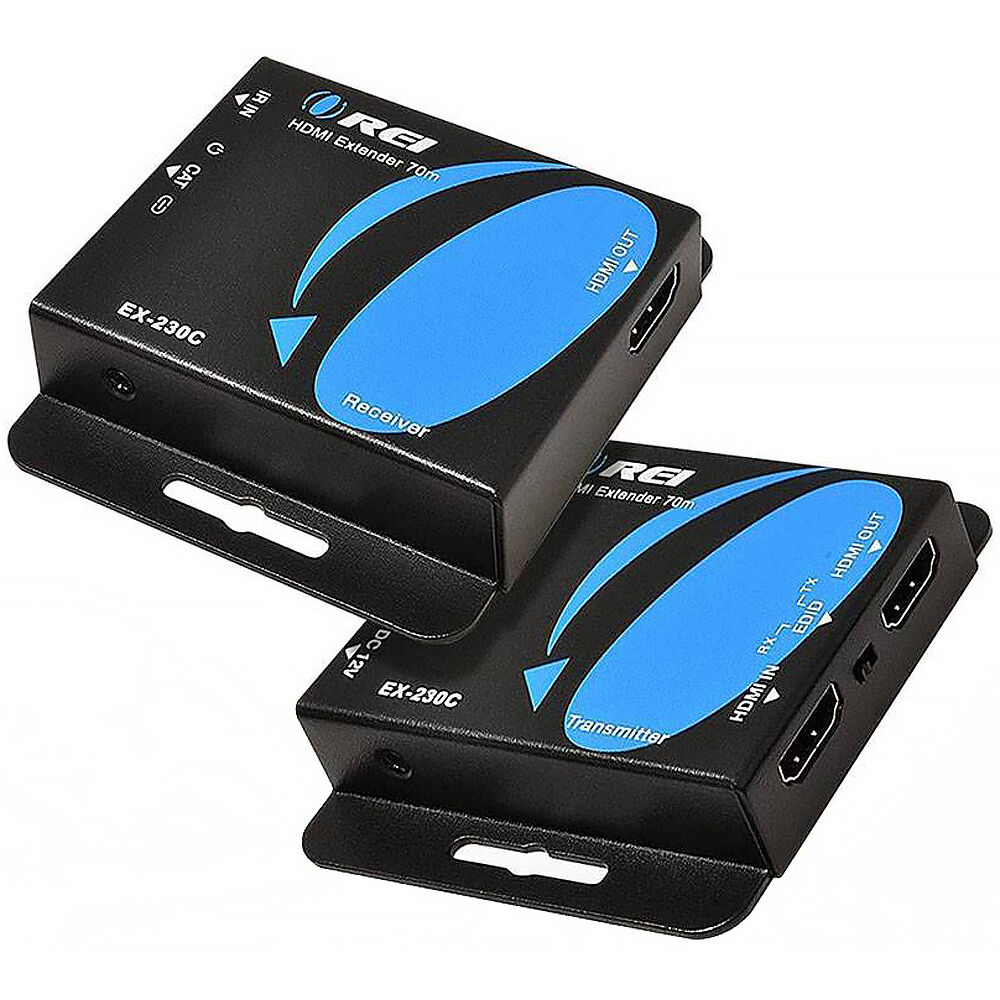

OREI EX-230C Overview

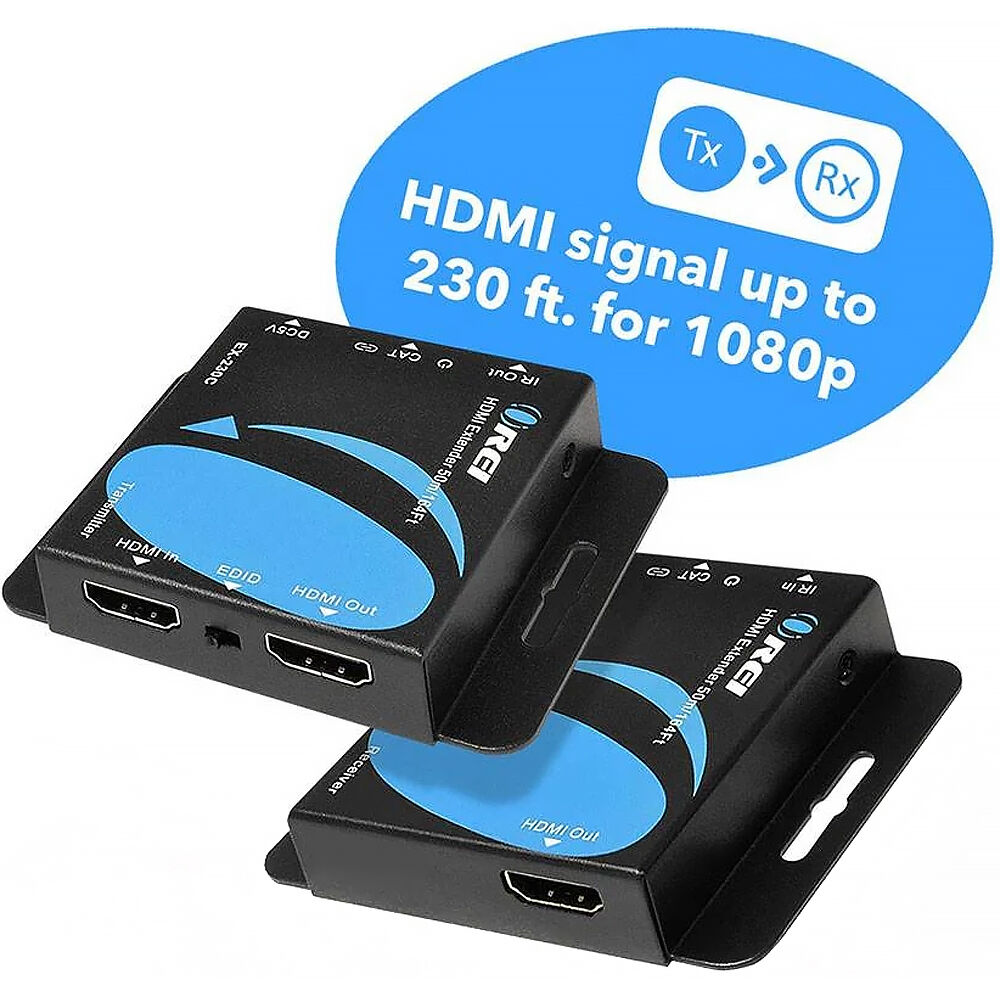

The EX-230C 4K HDMI Extender Set with HDMI Loop Output from OREI is designed to transport high-quality HDMI video and audio signals from an HDMI video source to another location over a Cat cable over long distances. The transmitter and receiver can transport up to 4K30 video up to 131' and up to 1080p video up to 230' over Cat 6 cable.
Maximum transmission distances measured:
- Cat 6: 230' for 1080p, 131' for 4K30
- Cat 5e: 197' for 1080p, 115' for 4K30
Supporting professional audio formats like PCM 7.1, Dolby TrueHD, and DTS-HD, this extender set delivers both stunning visuals and immersive sound.
- OREI EX-230C 4K HDMI Extender Set with HDMI Loop Output (230')
- HDMI Transmitter
- HDMI Receiver
- IR Blaster Cable
- IR Receiver Cable
- 12 VAC Power Adapter
- Limited 1-Year Manufacturer Warranty
No additional resources available
OREI EX-230C Specs
| Transmission I/O |
Transmitter:
1x HDMI Female (1.4) Input 1x HDMI Female (1.4) Loop-Out 1x RJ45 Female Output 1x 1/8" / 3.5 mm TS Female (IR) Output Receiver: 1x HDMI Female (1.4) Output 1x RJ45 Female Input 1x 1/8" / 3.5 mm TS Female (IR) Input |
| Embedded Audio |
HDMI
|
| Power I/O |
Transmitter:
1x Barrel (12 VDC at 1 A) Input Receiver: 1x Barrel (12 VDC at 1 A) Input |
| HDCP Support |
Yes: Version 1.4
|
| EDID Support |
Yes (Unspecified Control Method)
|
| Max Transmission Distance |
1080p at 60 Hz:
230' / 70.1 m (via Cat 6) 1080p at 60 Hz: 197' / 60 m (via Cat 5e) UHD 4K at 30 Hz: 131' / 39.9 m (via Cat 6) UHD 4K at 30 Hz: 115' / 35.1 m (via Cat 5e) |
| Video Format |
HDMI (4:4:4):
4096 x 2160p: 30 fps 3840 x 2160p: 30 fps 1920 x 1080p: 60 fps |
| Supported Audio System |
DTS/Dolby TrueHD
|
| Supported Cable Types |
Cat 5e/6/7
|
| Latency |
No
|
| Video Bandwidth |
10.2 Gb/s
|
| Power Consumption |
Transmitter:
1.86 W Receiver: 0.87 W |

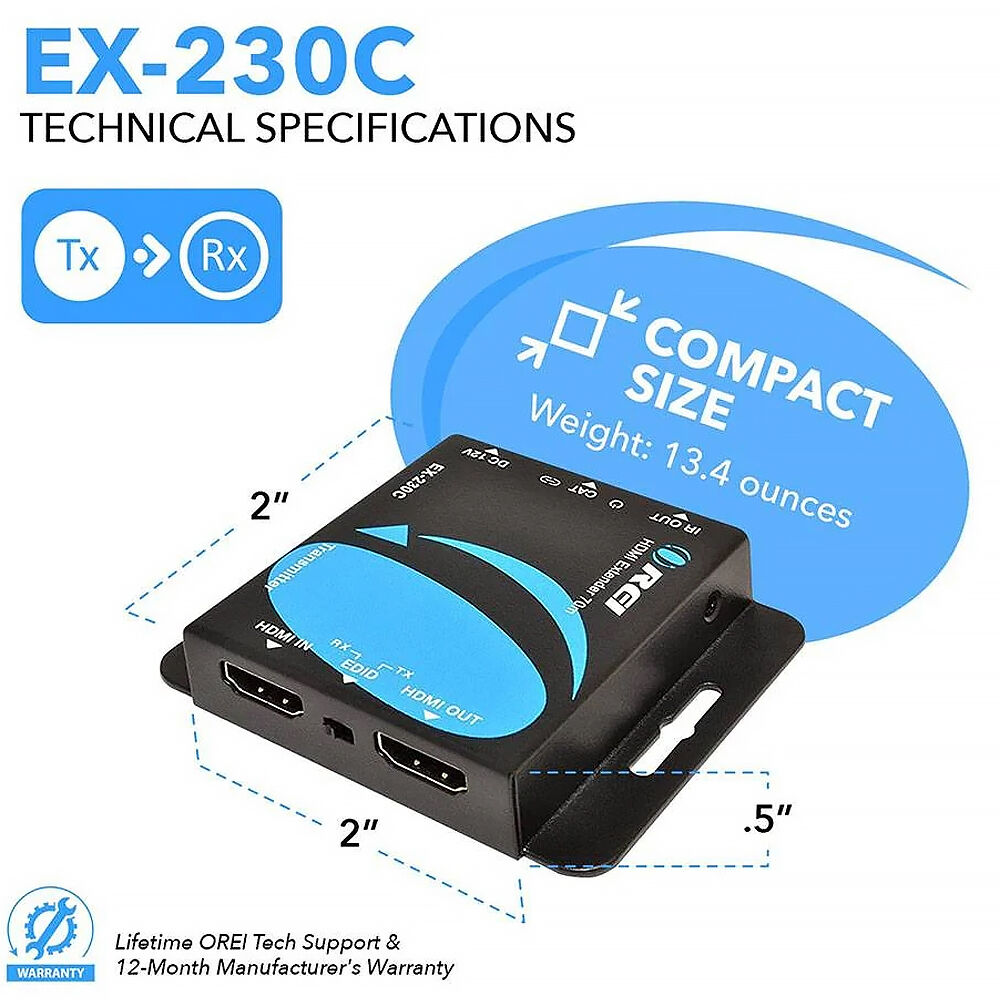

| Dimensions |
2.7 x 0.6 x 3.1" / 69 x 16.5 x 79.6 mm |
| Weight |
Transmitter:
4.7 oz / 132 g Receiver: 4.6 oz / 130 g |
| Package Weight |
1.03 lb
|
| Box Dimensions (LxWxH) |
6.8 x 6.3 x 2.1"
|
