Description
OREI UHD-EX165H Overview
The 4K HDMI 2.0 Extender Set with IR Control from OREI enables you to transmit and receive HDMI 2.0 video signals with 12-bit color and HDR support and embedded audio up to UHD 4K over distances up to 165' over Cat 6/7 cable. The system is suitable for office, house of worship, and home theater setups where the HDMI source device is located at a remote distance from the display.
Uncompressed UHD 4K Transmission
Supporting 18 Gb/s bandwidth, HDCP 2.2 compliance, 12-bit color, and HDR passthrough, this extender set preserves sharp detail and contrast from source to display.

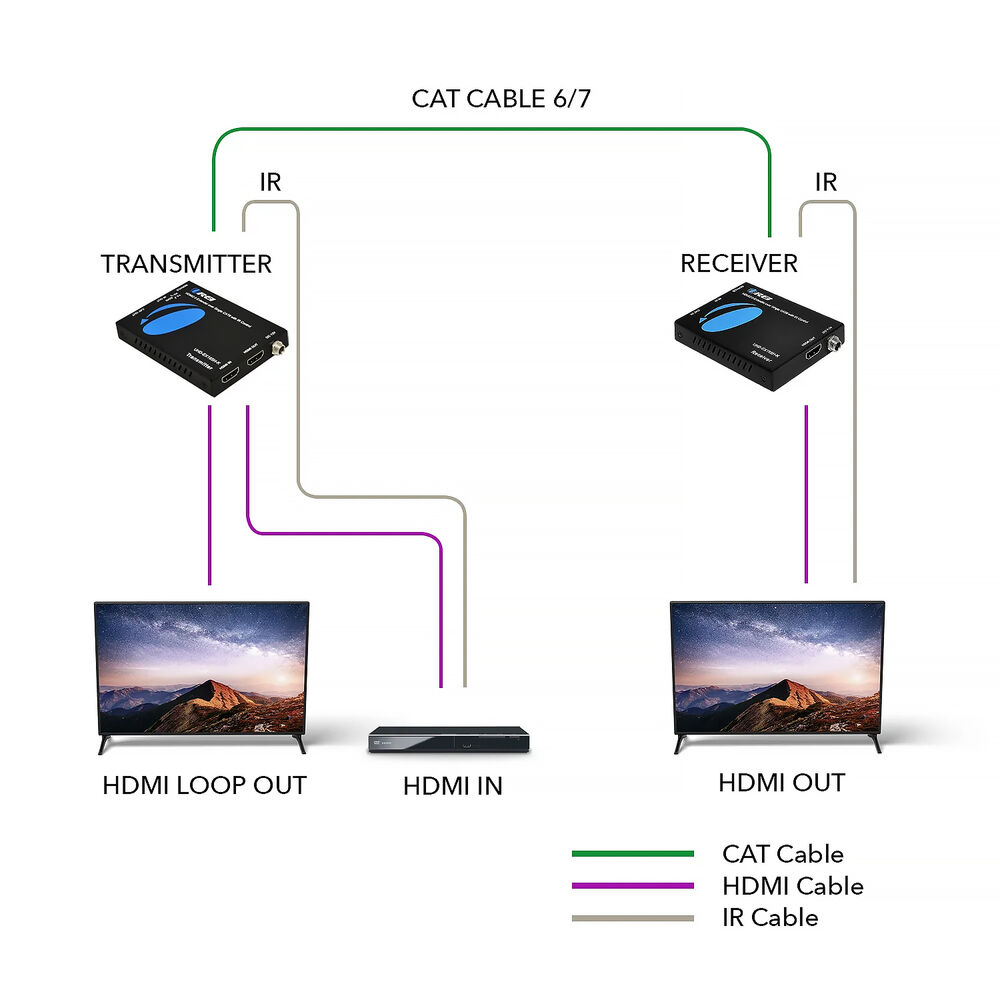

Local HDMI Loop Output
Easily monitor your source content locally with the HDMI loop output on the transmitter. This feature is great for installations where both source-side and remote displays are needed to simplify content distribution without requiring additional splitters or hardware.

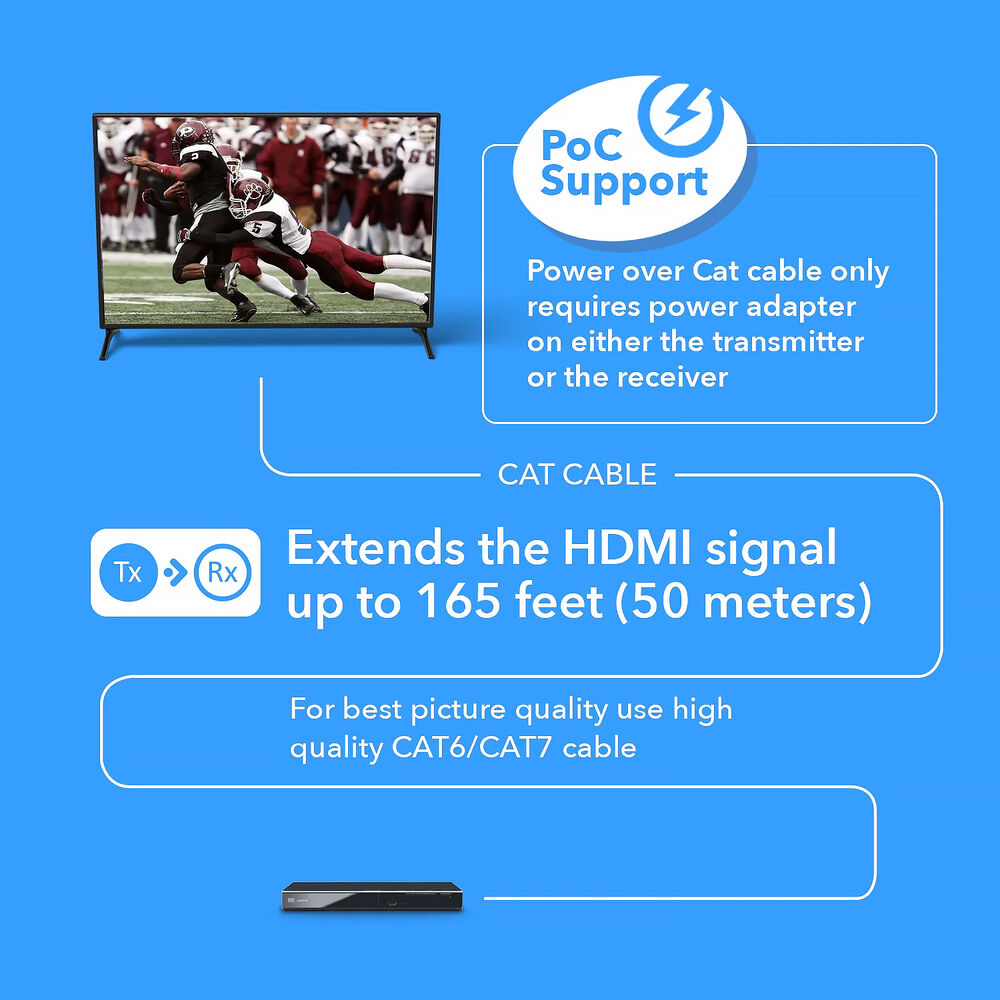

Power over Cable
One-way Power over Cable (PoC) allows the system to operate with just one power adapter at the transmitter, reducing cable clutter.

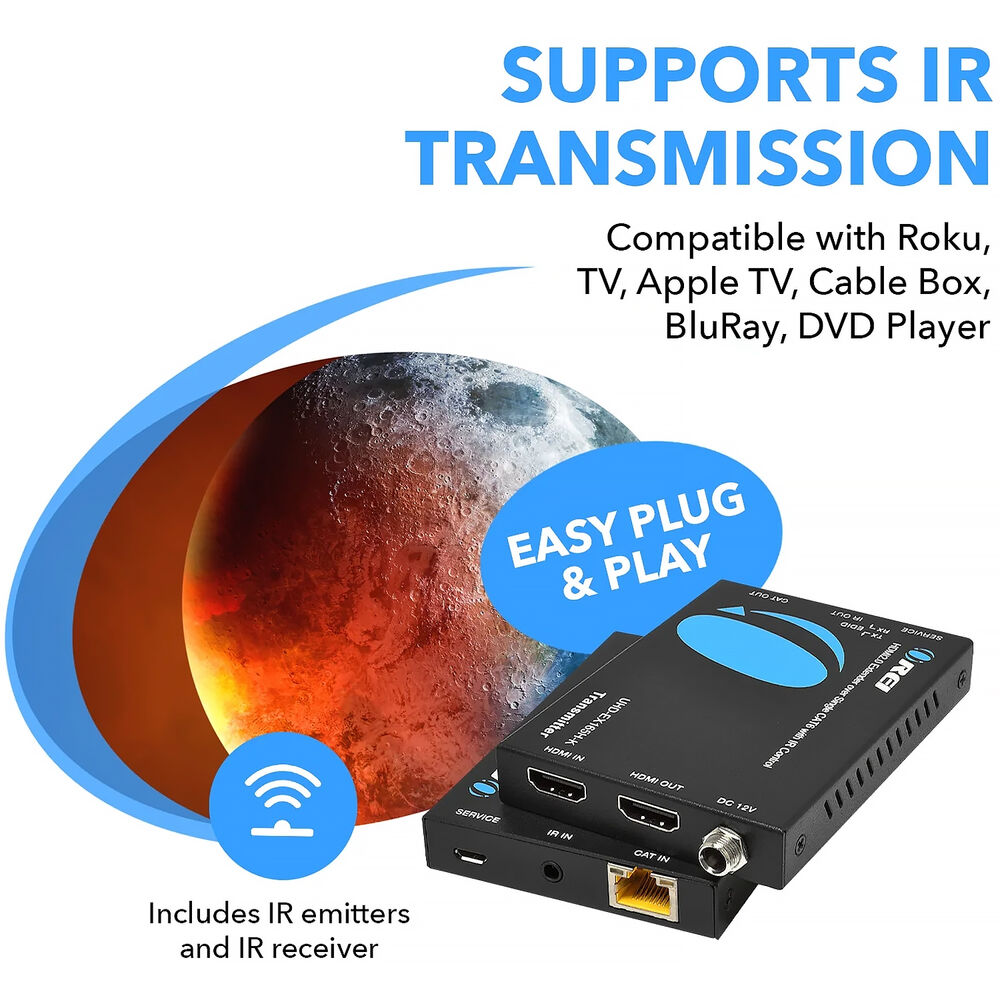

IR Control

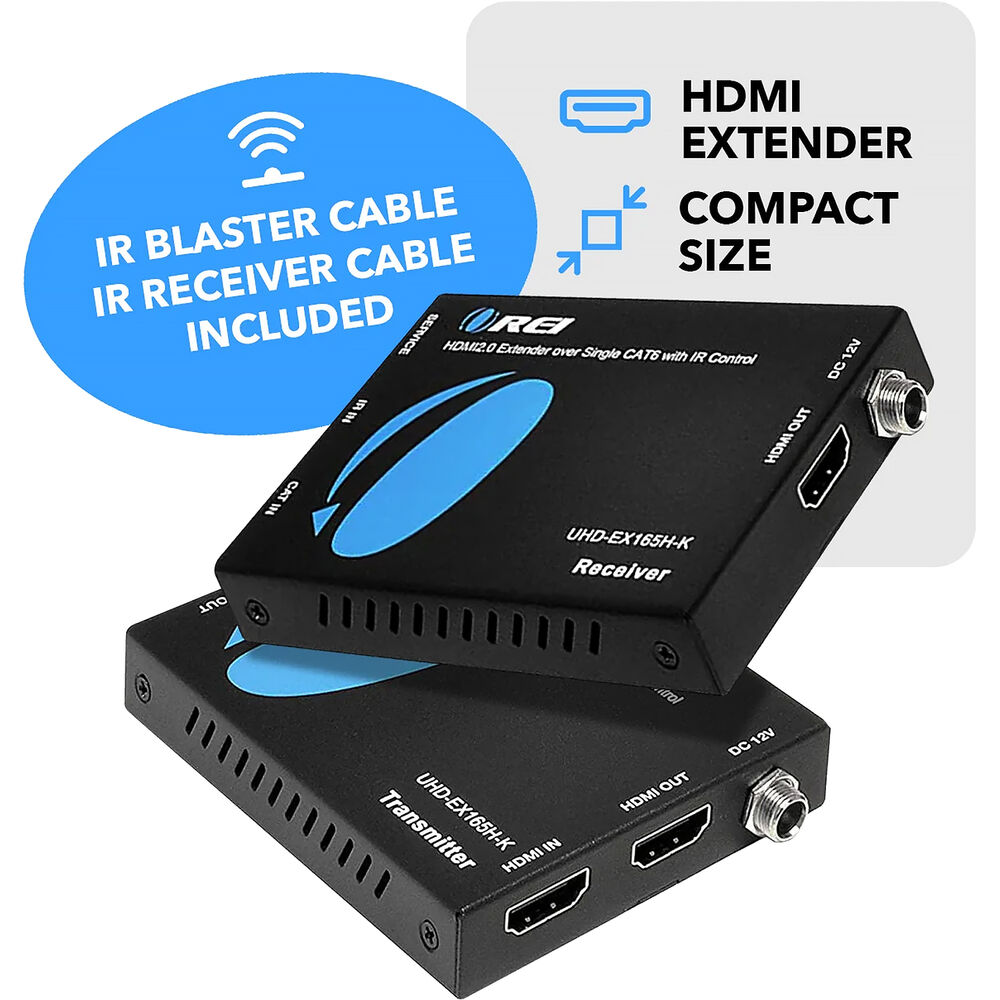

One-way IR control lets you manage your source device from the receiver location using the included IR blaster and receiver cables.
Compact Design
This compact transmitter and receiver set fits neatly into tight AV spaces, making it ideal for both residential and commercial environments.
UPC: 854339007885

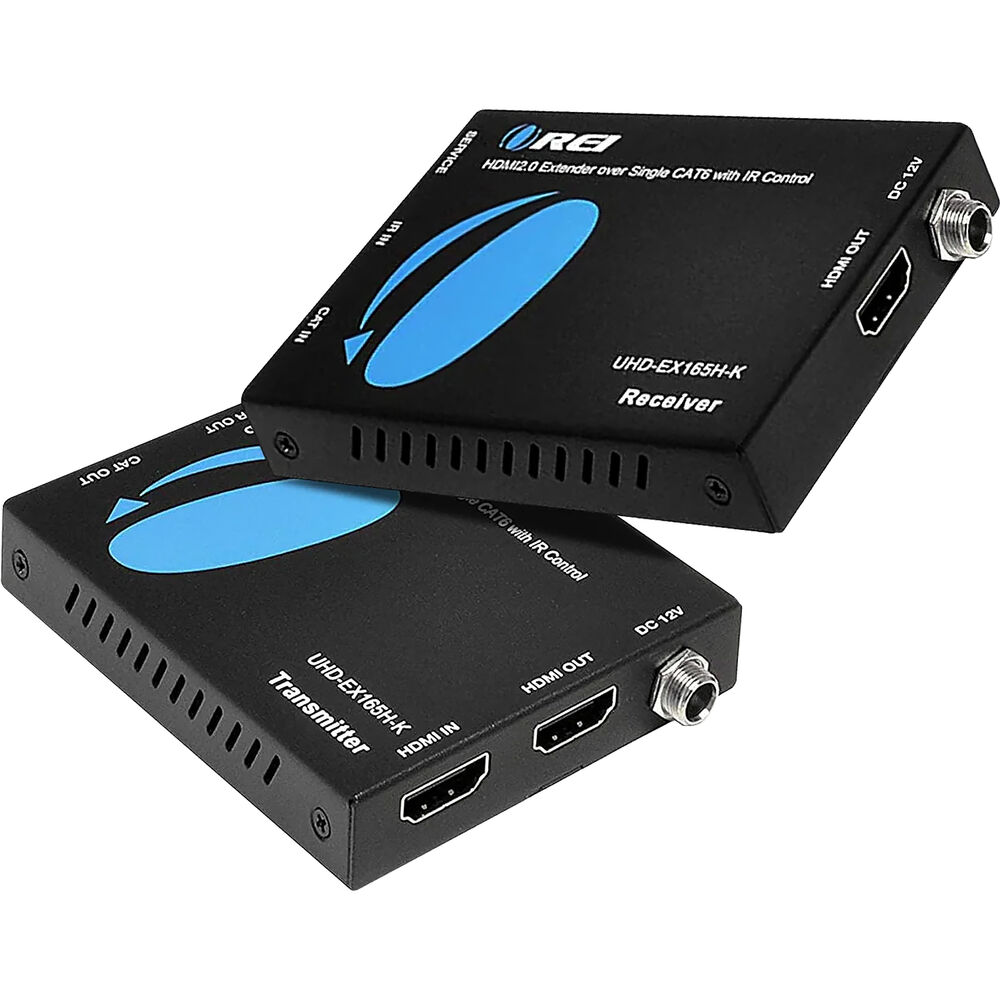

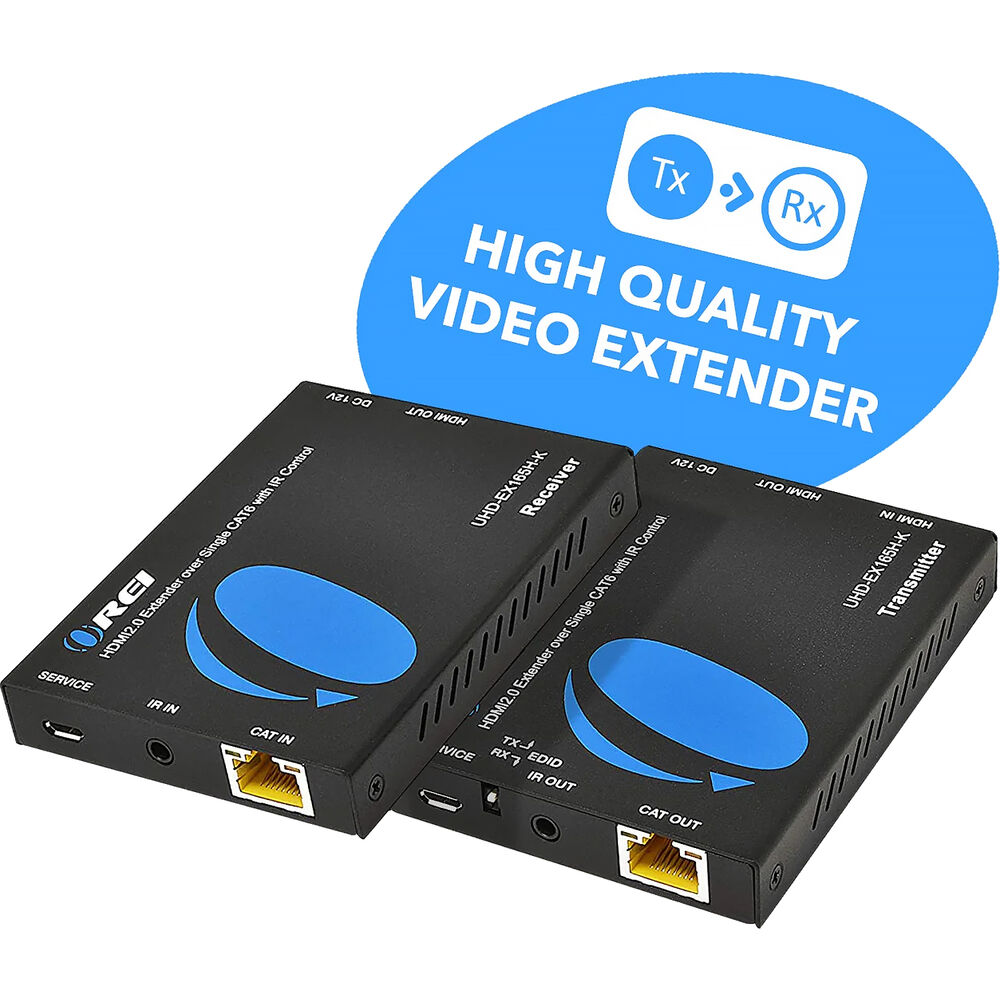

- OREI 4K HDMI 2.0 Extender Set with IR Control (165')
- Transmitter
- Receiver
- Wideband IR Blaster Cable
- Wideband IR Receiver Cable
- 12V Power Adapter
- Limited 1-Year Manufacturer Warranty
No additional resources available
OREI UHD-EX165H Specs
Interfaces
| Transmission I/O |
Transmitter:
1x HDMI Female (2.0) Input 1x HDMI Female (2.0) Output 1x RJ45 Female Output 1x 1/8" / 3.5 mm TS Female (IR) Output 1x Micro-USB Female (Firmware) Input/Output Receiver: 1x RJ45 Female Input 1x HDMI Female (2.0) Output 1x 1/8" / 3.5 mm TS Female (IR) Input 1x Micro-USB Female (Firmware) Input |
| Embedded Audio |
HDMI
|
| Power I/O |
Transmitter:
1x Barrel (12 VDC at 1 A) Input Receiver: 1x Barrel (12 VDC at 1 A) Input |
Standards
| HDR Support |
Yes
|
| HDCP Support |
Yes: Version 2.2
|
| EDID Support |
No
|
Transmission
| Max Transmission Distance |
UHD 4K at 60 Hz:
165' / 50.3 m (via Cat 6/7) |
| Video Format |
HDMI/RJ45 (4:4:4):
3940 x 2160p: 60 fps |
| Supported Audio System |
DTS/DTS 96/24/DTS Express/DTS-HD High Resolution/DTS-HD Master Audio/Dolby Digital/Dolby Digital EX/Dolby Digital Plus/Dolby TrueHD
|
| Supported Cable Types |
Cat 6/7
|
| Video Bandwidth |
18 Gb/s
|
Power
| Power Consumption |
6.36 W
|
General

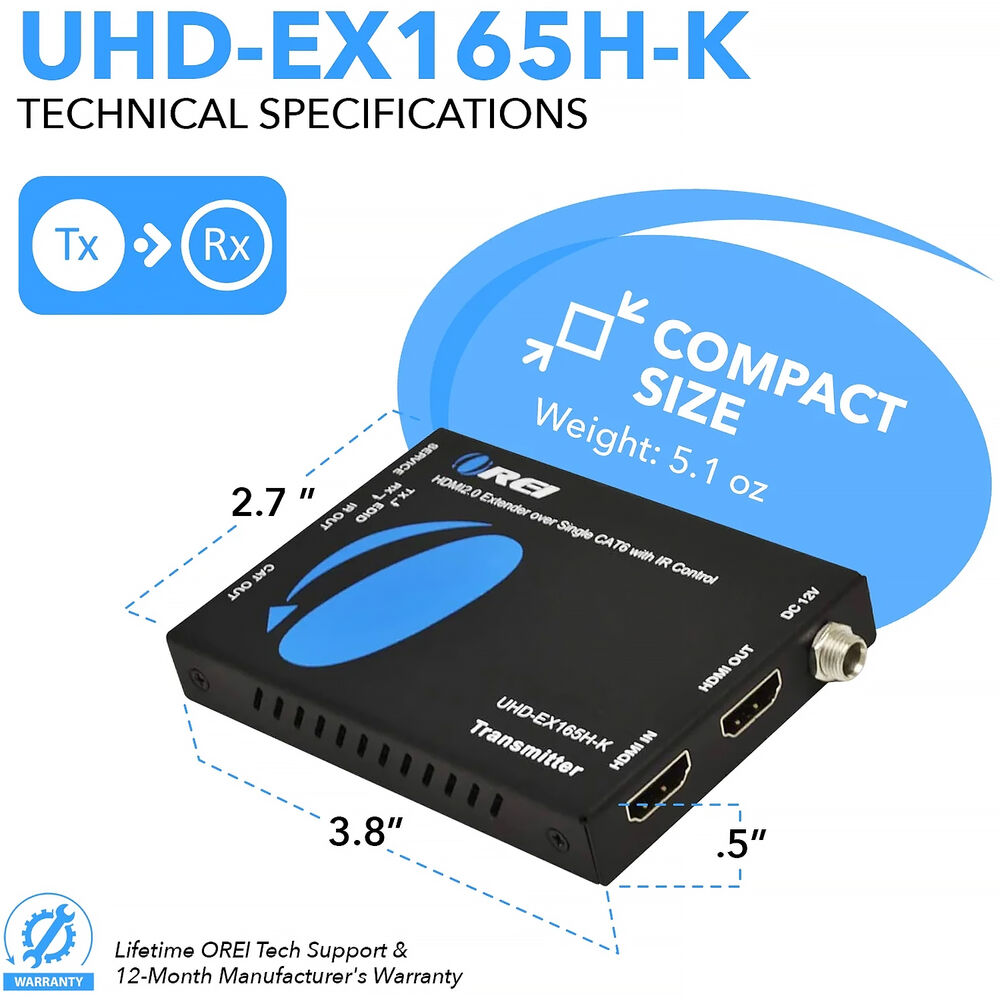

| Dimensions |
2.7 x 0.5 x 4" / 69.3 x 13.3 x 101.5 mm |
| Weight |
Transmitter:
5.3 oz / 150 g Receiver: 5.1 oz / 144 g |
Packaging Info
| Package Weight |
1.2 lb
|
| Box Dimensions (LxWxH) |
6.4 x 5 x 2.6"
|
