Description

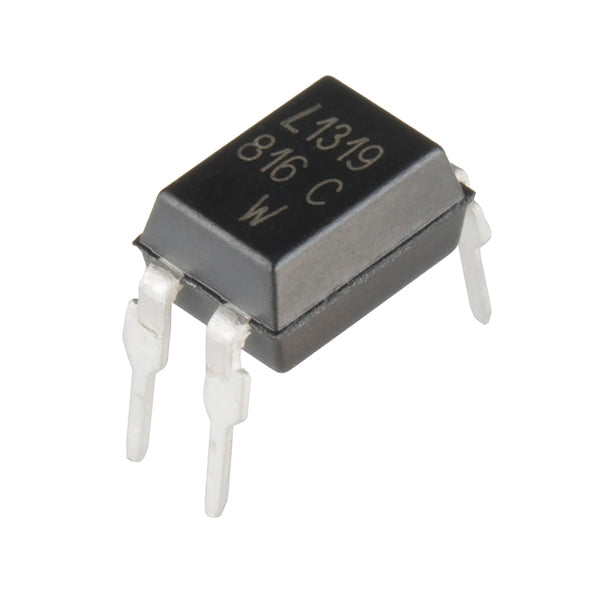

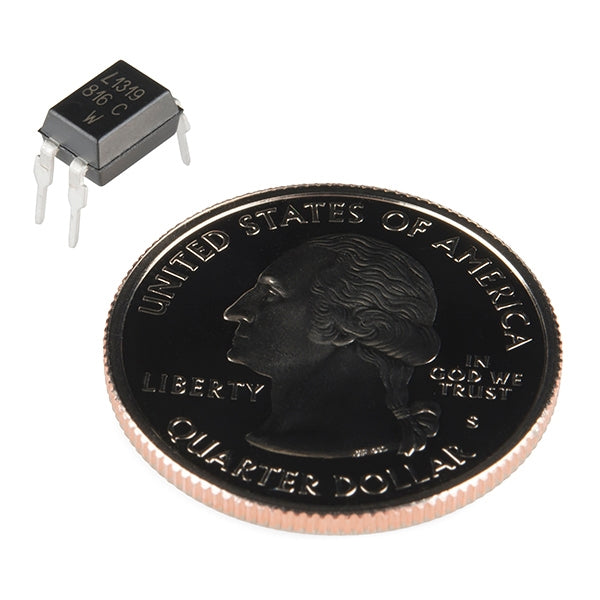

This is an opto-isolator for controlling large loads of current on a single channel.
Features & Specs
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @5mA
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -30°C ~ 110°C
- Mounting Type: Through Hole
Features & Specs
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @5mA
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -30°C ~ 110°C
- Mounting Type: Through Hole
Documentation
