Description

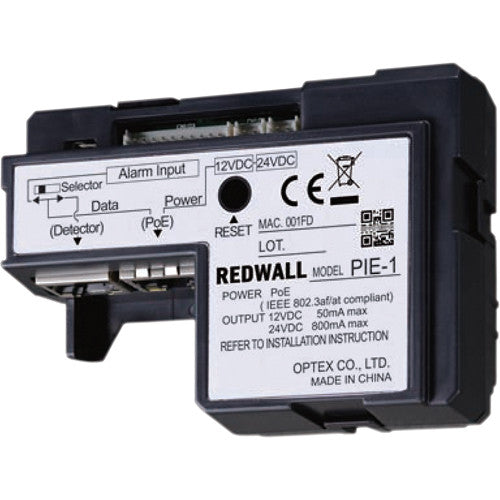

Optex PIE-1 Overview
The PIE-1 POE IP Outdoor Encoder from Optex is an encoder that converts analog relay outputs to original ASCII code (Redwall Event Code) for Redwall SIP, Redscan, and Redbeam detectors. You can connect to all leading VMS platforms to control IP cameras. PIE-1 is compatible with Power over Ethernet (PoE) IEEE802.3 af/at, thereby making it possible to supply power using a PoE hub or switch. Only one LAN cable is needed to connect PIE-1 to a PoE hub or switch, thereby reducing installation time and cost.
Change analog relay output signals (N.C.) to original ASCII code
Supply power to detectors using a PoE hub or switch
Integrated with leading VMS platforms
UPC: 788924088839
In the Box
- Optex PIE-1 POE IP Outdoor Encoder
- 2 x Power Output Cable
- 3 x Alarm Input Cable
- Mounting Plate for a Double Gang Box
- Gasket Sheet for Gang Box
- 6 x Mounting Screw
- Limited 5-Year Manufacturer Warranty (Part and Labor)
Optex PIE-1 Specs
| Signal Input | 5-input for dry contacts (N.C. only) |
| Alarm Output | Redwall Event Code (UDP / TCP) |
| Switch | Ethernet converter / LAN through |
| Settings | Function: Use web browser |
| Protocols Supported | IPv4, ARP, UDP, TCP, ICMP, HTTP |
| LED Indicators | Normal: Green light is ON when the power is supplied by PoE When Communicating: Yellow light blinks during communication |
| Power Supply | PoE (IEEE802.3af/at compliant) |
| Power Output | 24 VDC 800 mA maximum, 12 VDC 50 mA maximum |
| Installation | Outdoor (Inside of the waterproof case) |
| Operating Temperature | -40 to 140?F (-40 to 60?C) |
| Operating Humidity | 95% RH. maximum |
| Dimensions | 3.66 x 3.73 x 1.30" (92.96 x 94.74 x 33.02 mm) |
| Weight | Main Unit: 3.2 oz (90.7 g) |
Packaging Info
| Package Weight | 0.71 lb |
| Box Dimensions (LxWxH) | 5.8 x 4.9 x 2.2" |
