Description

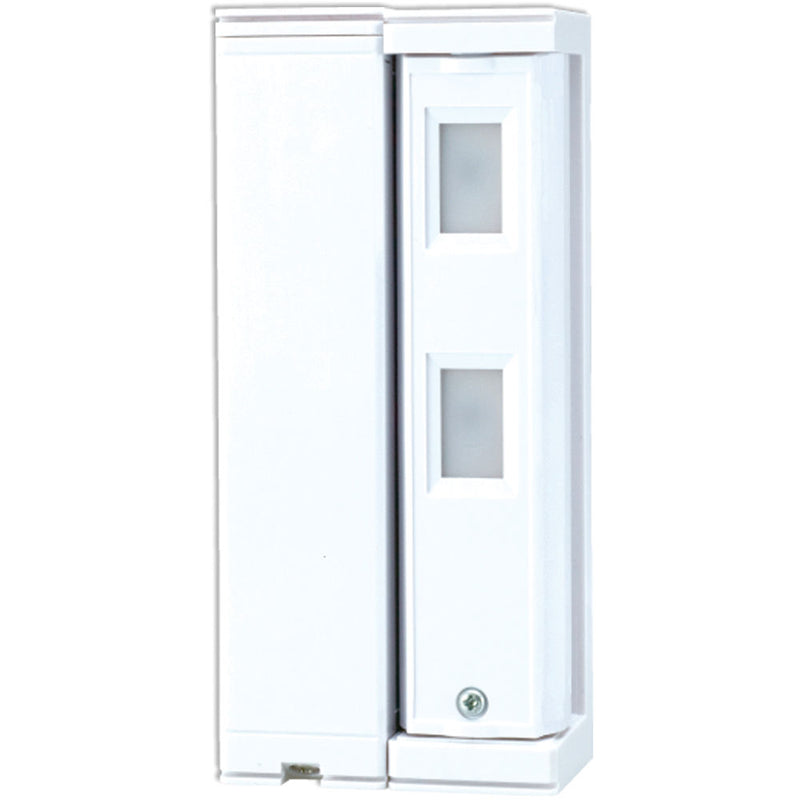

The fit Series FTN-RAM Wireless Compact Outdoor Detector with 2 PIRs & Anti-Masking from Optex offers a solution for outdoor areas where false alarms caused by environmental disturbances and small animals are an issue. This battery-powered detector allows installers to save valuable installation time and labor costs as no trenching, installing conduit, or pulling wire is required. The detector includes the anti-masking feature, a wireless-ready backbox to hold a third party's battery, and wireless transmitter. It comes with a built-in bracket that enables horizontal rotation of 190°. The compact size and flexible detection area allow the sensor to fit into a variety of both residential and commercial applications.
- Digital anti-masking
- Selectable 16.4' (5m) and 6.6' (2m) narrow detection ranges
- 190° horizontal rotation with an in-built mounting bracket
- Dual PIR detectors for enhanced pet tolerance
- Super Multi Dimension Analysis Logic analyzes every motion before signaling an alarm to reduce false and missed detections
- Double conductive shielding
- Intelligent AND logic
- Flexible detection area suitable for use in balconies, windows, poolsides, and more
- 5m/2m switchable lens
- Long battery life
- Easy wiring by a connector
- Multi fixing transmitter box
| Technology | Passive infrared |
| Installation | Commercial, residential |
| Detection Range | Up to 6.6' (2.0 m) or 16.4' (5.0 m) |
| Speed | Detectable: 1.0 to 4.9'/second (0.3 to 1.5 m/second) |
| Coverage | 16.4 x 3.2' (5.0 x 1.0 m) |
| Mounting | Wall (outdoor, indoor) Height: 31.0 to 47.0' (0.7 to 1.2 m) |
| Sensitivity | 3.6°F at 2'/second, (2.0°C at 0.6 m/second) |
| LED Indicator | Enable: During DIP switch 1 (walk test mode) or DIP switch 4 (LED)On Disable: During normal operation Light/Blink: Warm-up, alarm, masking detection |
| Alarm | Period: 2.0 ±1.0 second Output: N.C/N.O selectable solid state switch, 10 VDC, 0.01 A (maximum) |
| Trouble Output | N.C/N.O selectable solid state switch, 10 VDC, 0.01 A (maximum) |
| Warm-Up Period | Approximately 120 seconds (LED blinks) |
| Power Input | 3 to 9 VDC (Lithium or Alkaline battery) |
| Current Draw | 10 µA (at stand-by) / 3 mA (maximum) at 3 VDC |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity | 95% maximum |
| Weatherproof | IP55 |
| Weight | 6.7 oz (190.0 g) |
| Package Weight | 0.55 lb |
| Box Dimensions (LxWxH) | 7.0 x 3.3 x 2.3" |
