Description
Optex LX-402 Overview
- 1Description
- 2Selectable Detection Patterns (Multi or Pet Alley)
- 3Area Masking Strips
- 4Selectable Pulse Count (Test or 2)
- 5Day & Night Mode
- 6Easy Wiring
- 7Applications

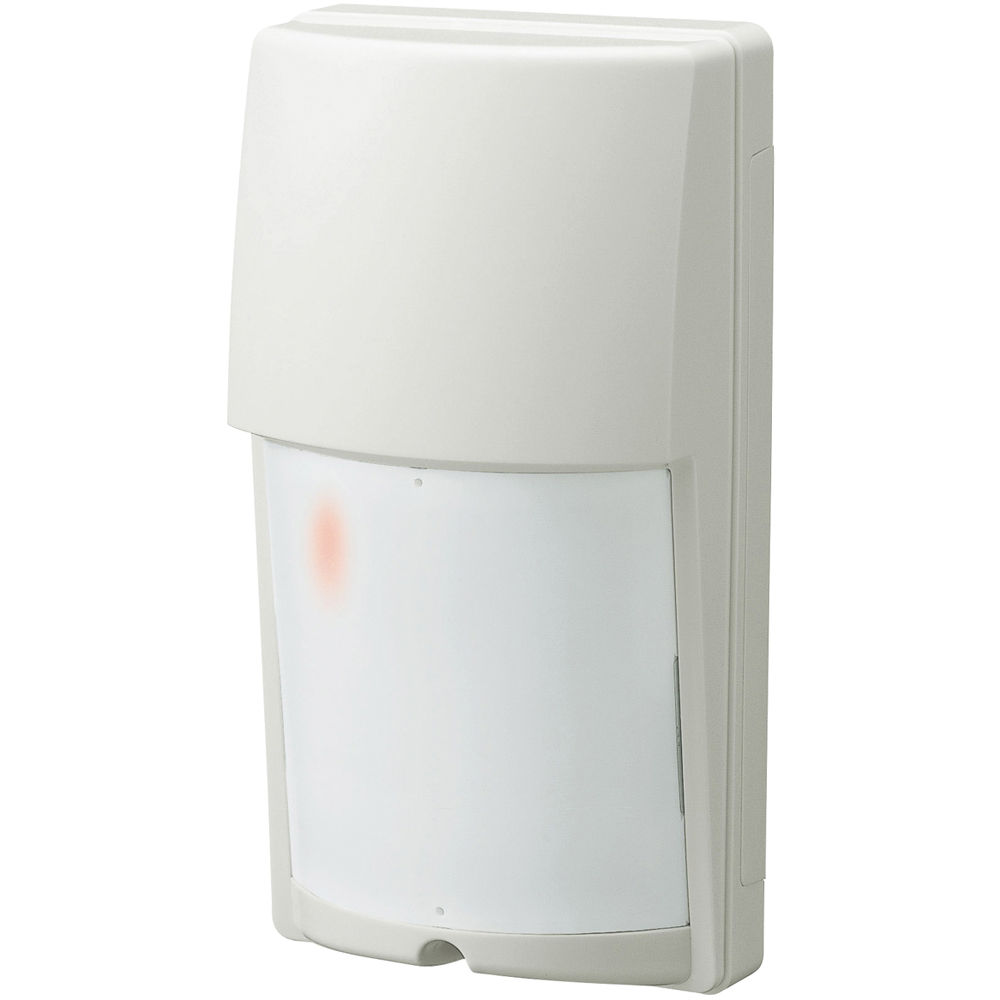

The 120° Wide Outdoor Passive Infrared Detector from Optex is robust, IP54-rated weatherproof, and specifically designed for short-range outdoor applications, such as triggering lighting or cameras. With advanced features such as sensitivity and range adjustment, as well as a built-in light sensor for providing day and night modes, the detector is highly versatile. Furthermore, using double conductive shielding, the detector is resistant to interference from up to 50,000 lux of foreign light, such as sunlight or car headlights, eliminating false alarms.
The detector features a 120° field of view for detecting a wide coverage area, and it is protected against water and insects for outdoor use. The interior design of the detector has simple wiring and a tight sealing for keeping the interior components safe, and the exterior offers a compact, unobtrusive look for blending into residential decor. An LED indicator will alert you to abnormalities such as lack of power, wrong polarity, incorrect detection areas, or drastic temperature changes. It can be wall mounted and included hardware for an easy installation.
In the Box
- Optex 120° Wide Outdoor Passive Infrared Detector
- 11 x Area-Masking Strips
- Mounting Screw
- Sponge
- Limited 1-Year Warranty
- Description
- Selectable Detection Patterns (Multi or Pet Alley)
- Area Masking Strips
- Selectable Pulse Count (Test or 2)
- Day & Night Mode
- Easy Wiring
- Applications
Optex LX-402 Specs
| Detection Method |
Passive infrared
|
| Coverage |
Multi-Level Area: 40 zones
Pet Alley Area: 18 zones |
| Detection Area |
PIR: 40 x 50' (12 x 15 m)
|
| Mounting Height |
Multi-Level Area: 8.3' (2.5 m)
Pet Alley Area: 4 to 5' (1.2 to 1.5 m) |
| Sensitivity Adjustment |
Selectable 3 position (H, M, L)
|
| Speed |
1 to 3.3'/sec (0.3 to 1.0 m/sec)
|
| Alarm Period |
2 ± 1 sec
|
| Alarm Output |
NC. NO. 28 VDC, 0.2 A maximum
|
| Count Period |
2 (20 ± 5 sec) or TEST (1 pulse)
|
| Warm-Up Period |
Approximately 60 sec (LED blinks)
|
| Switch |
Tamper: Opens when cover removed
|
| Day/Night Mode |
Approximately 10 to 100,000 lux
|
| Mounting |
Wall (Indoor / outdoor)
|
| Power Input |
10.8 to 13.2 VDC
|
| Current Draw |
25 mA (maximum)
|
| LED Indicator |
LED lights during detection
|
| Installation |
Commercial and industrial
|
| IP Rating |
IP54
|
| Operating Temperature |
-4 to 122°F (-20 to 50°C)
|
| Humidity |
95% maximum
|
| RF Interference |
No alarm 20 V/m
|
| Mounting |
Wall (outdoor, indoor)
|
| Wiring |
Wired
|
| Weight |
6 oz (170 g)
|
| Package Weight |
0.5 lb
|
| Box Dimensions (LxWxH) |
5.8 x 3.2 x 3.1"
|
