Description

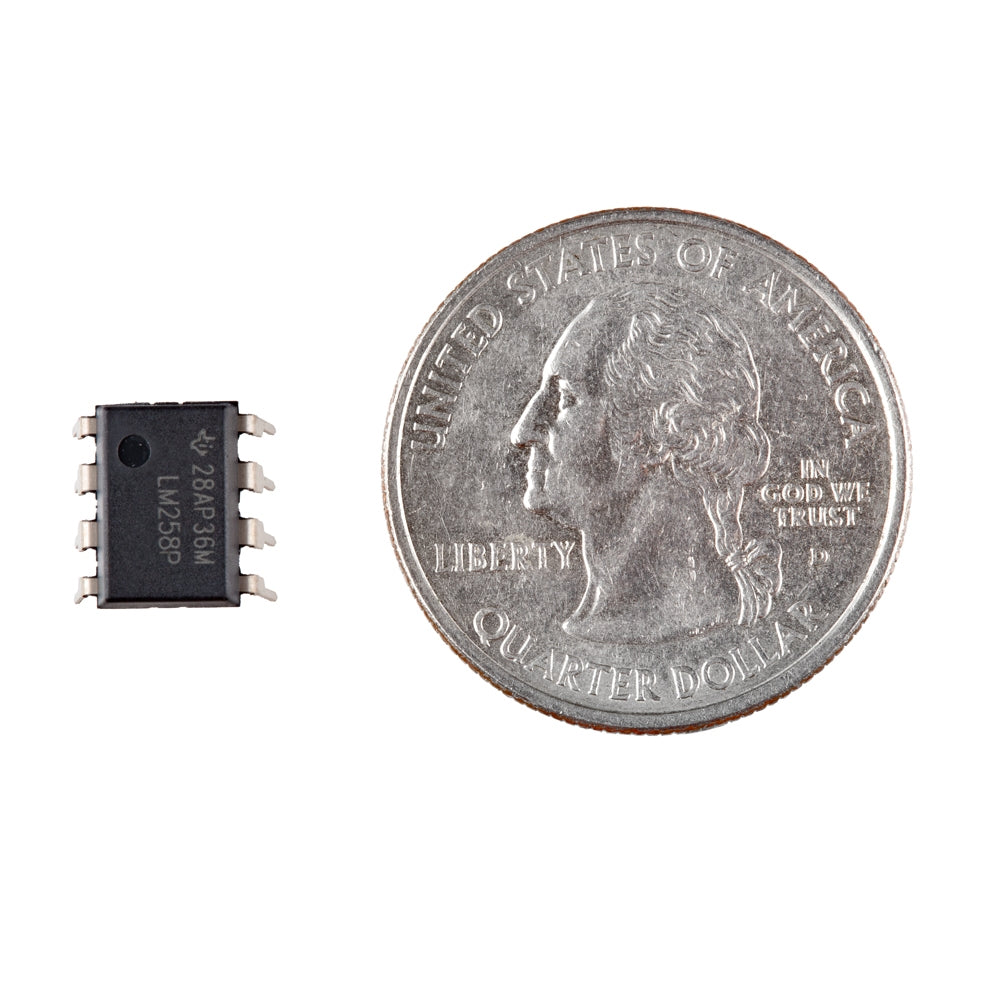

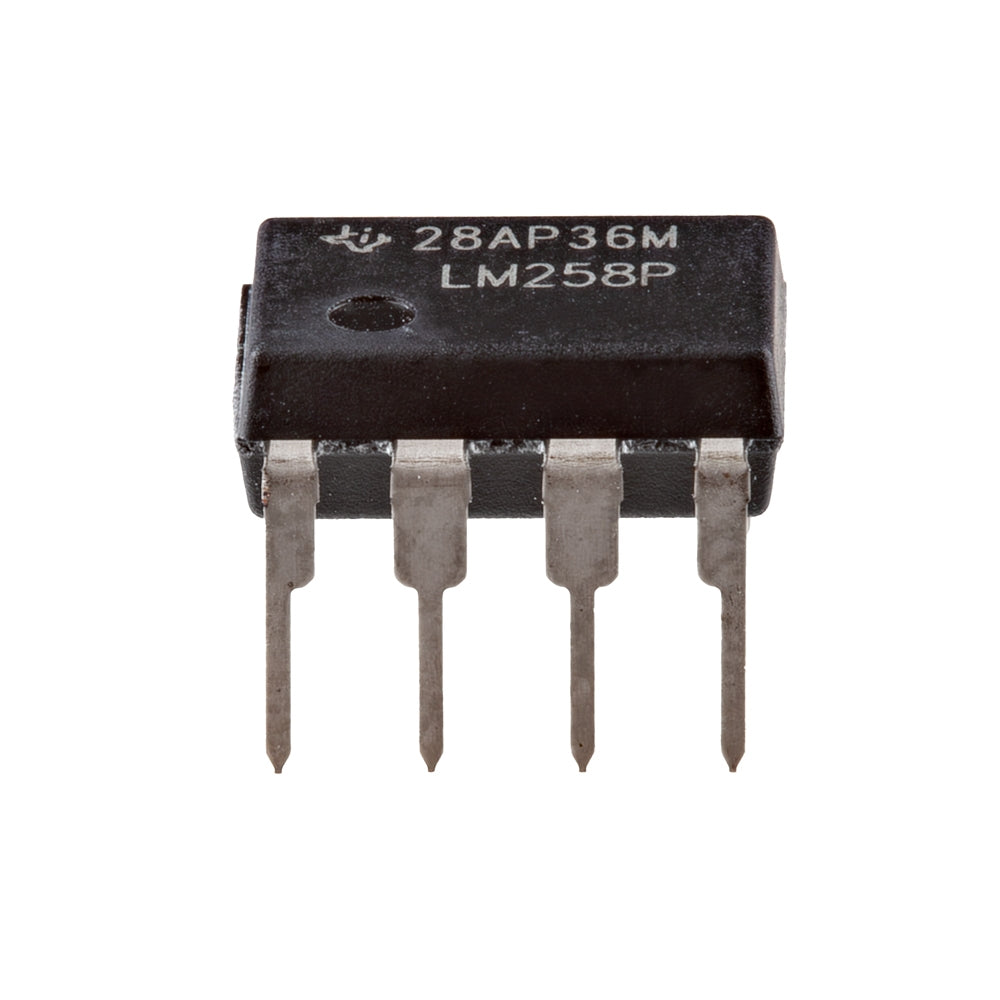

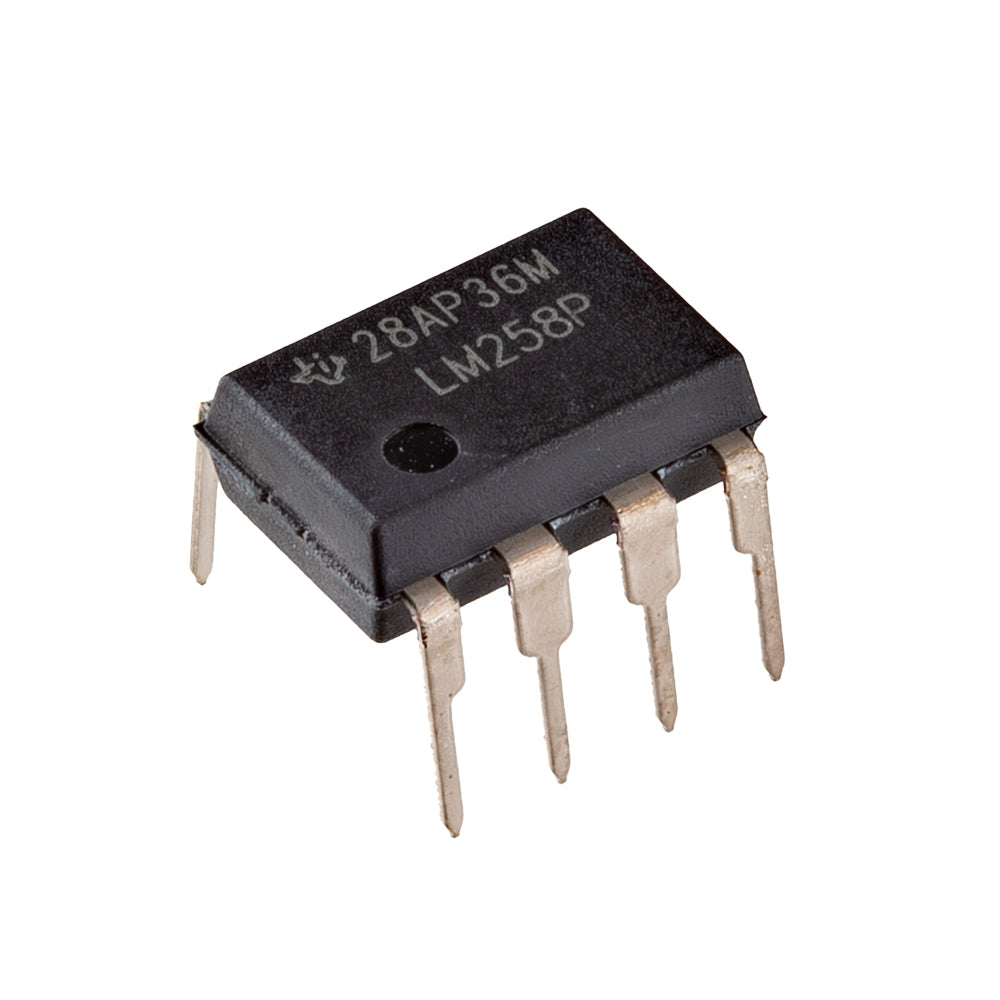

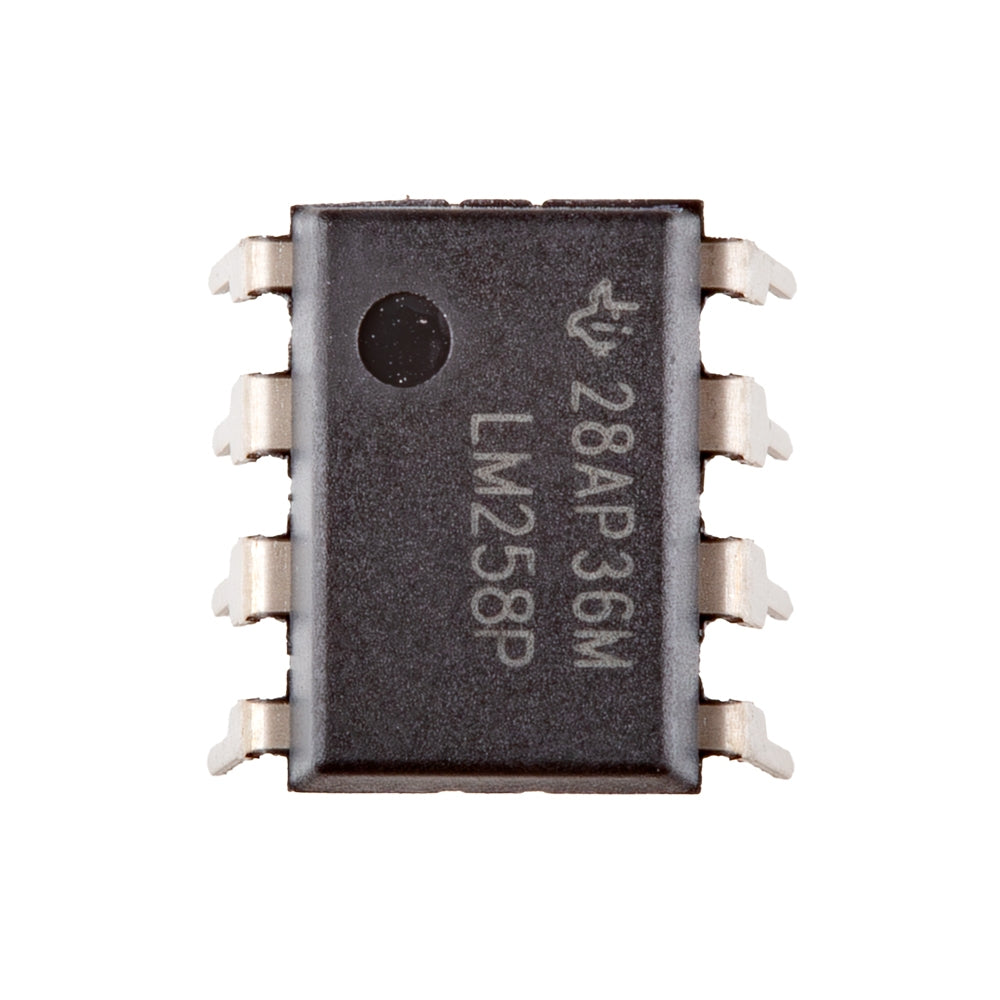

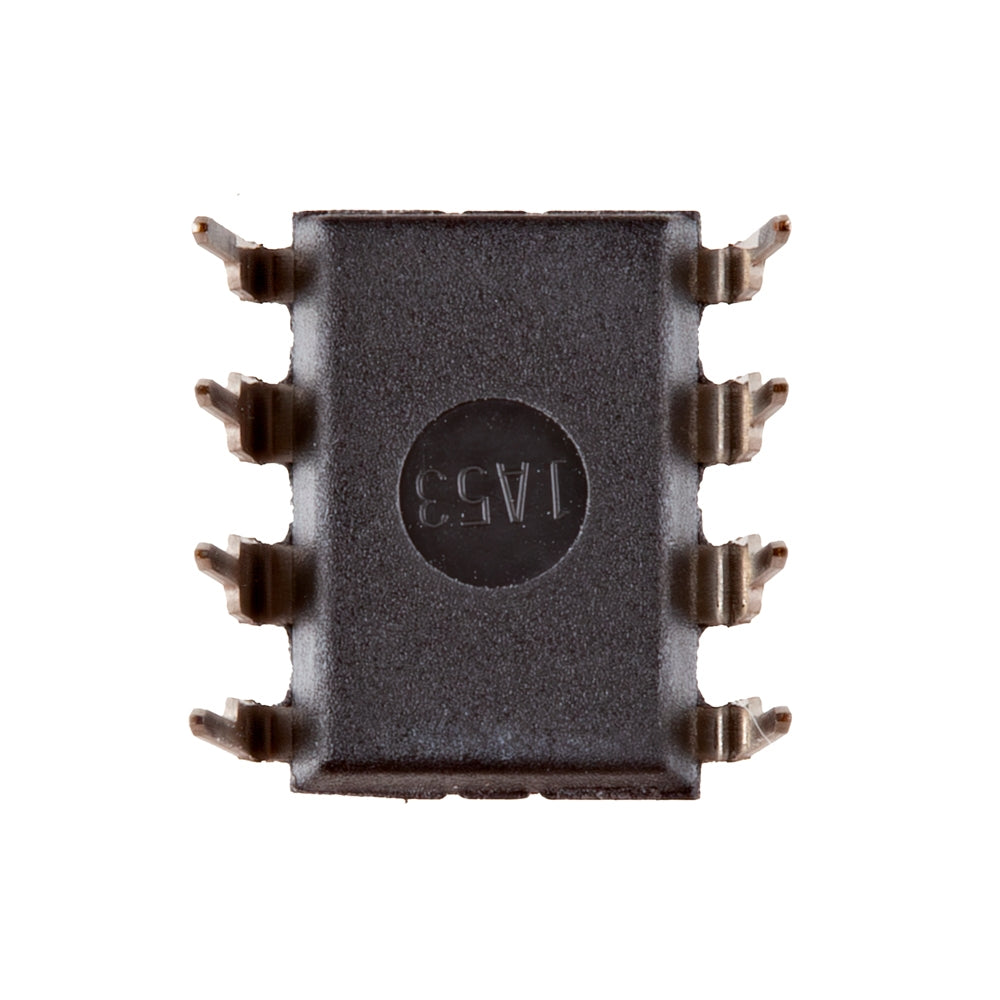

If you're looking for a good, standard op-amp the LM258P should fill most of your needs.
Features & Specs
- Number of Circuits: 2
- Slew Rate: 0.3V/µs
- Gain Bandwidth Product: 700kHz
- Current - Input Bias: 20nA
- Voltage - Input Offset: 3mV
- Current - Supply: 500µA (x2 Channels)
- Current - Output / Channel: 40mA
- Voltage - Supply Span (Min): 3V
- Voltage - Supply Span (Max): 32V
- Operating Temperature: -25°C ~ 85°C (TA)
- Mounting Type: Through Hole
Features & Specs
- Number of Circuits: 2
- Slew Rate: 0.3V/µs
- Gain Bandwidth Product: 700kHz
- Current - Input Bias: 20nA
- Voltage - Input Offset: 3mV
- Current - Supply: 500µA (x2 Channels)
- Current - Output / Channel: 40mA
- Voltage - Supply Span (Min): 3V
- Voltage - Supply Span (Max): 32V
- Operating Temperature: -25°C ~ 85°C (TA)
- Mounting Type: Through Hole
Documentation
