| ₹ 134.86 includes GST and import duties. | |
| B2B customers can avail ₹ 20.57 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

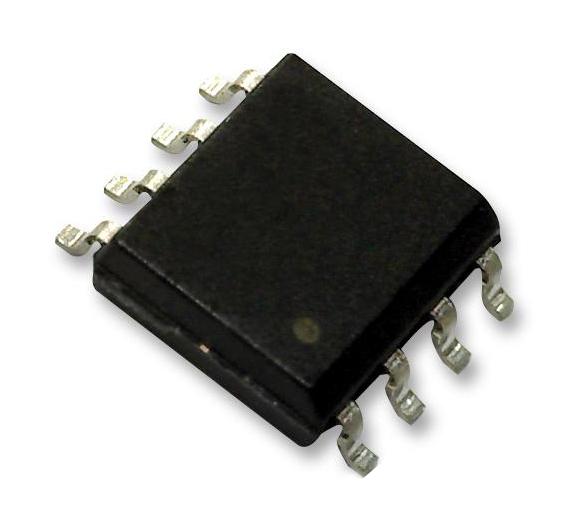

Power, dual N- and P-channel (100V, 83mohm, 4.5A, -100V, 131ohm, -3.6A) MOSFET is typically used in power tools, battery operated vacuums, UAV/drones, material handling, motor drive and home automation applications.
- Small footprint (5 x 6mm) for compact design
- Low RDS(on) to minimize conduction losses
- Low QG and capacitance to minimize driver losses
- Not ESD protected
- Low conduction loss, standard footprint
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N and P Channel |
| Drain Source Voltage Vds N Channel: 100V |
| Drain Source Voltage Vds P Channel: 100V |
| Continuous Drain Current Id N Channel: 4.1A |
| Continuous Drain Current Id P Channel: 4.1A |
| Drain Source On State Resistance N Channel: 0.0594ohm |
| Drain Source On State Resistance P Channel: 0.0594ohm |
| Transistor Case Style: SOIC |
| No. of Pins: 8Pins |
| Power Dissipation N Channel: 3.1W |
| Power Dissipation P Channel: 3.1W |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | ONSEMI |
| Part Number | NTMC083NP10M5L |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 132.16 |
| 3-5 | ₹ 130.81 |
| 5-10 | ₹ 128.12 |
| 10+ | ₹ 125.42 |
Bulk discount will be automatically applied during checkout based on quantity.
