Description

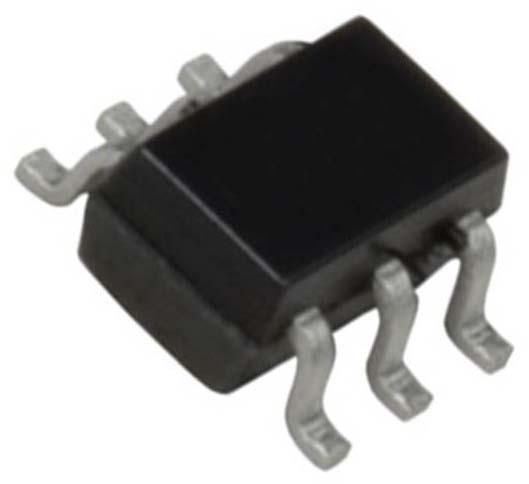

This is a NTJD5121NT1G DUAL N CHANNEL MOSFET , 60V, SC-88 product from ONSEMI with the model number NTJD5121NT1G
Product details
| Channel Type | N Channel |
| Transistor Polarity | N Channel |
| Drain Source Voltage Vds N Channel | 60V |
| Drain Source Voltage Vds | 60V |
| Continuous Drain Current Id | 295mA |
| Drain Source Voltage Vds P Channel | 60V |
| Continuous Drain Current Id N Channel | 304mA |
| On Resistance Rds(on) | 1ohm |
| Continuous Drain Current Id P Channel | 304mA |
| Drain Source On State Resistance N Channel | 1ohm |
| Transistor Mounting | Surface Mount |
| Rds(on) Test Voltage | 10V |
| Drain Source On State Resistance P Channel | 1ohm |
| Transistor Case Style | SOT-363 |
| Gate Source Threshold Voltage Max | 1.7V |
| Power Dissipation Pd | 250mW |
| No. of Pins | 6Pins |
| Power Dissipation N Channel | 266mW |
| Power Dissipation P Channel | 266mW |
| Operating Temperature Max | 150°C |
| Product Range | - |
| Qualification | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ONSEMI |
| Part Number | NTJD5121NT1G |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
