Description
Product Overview

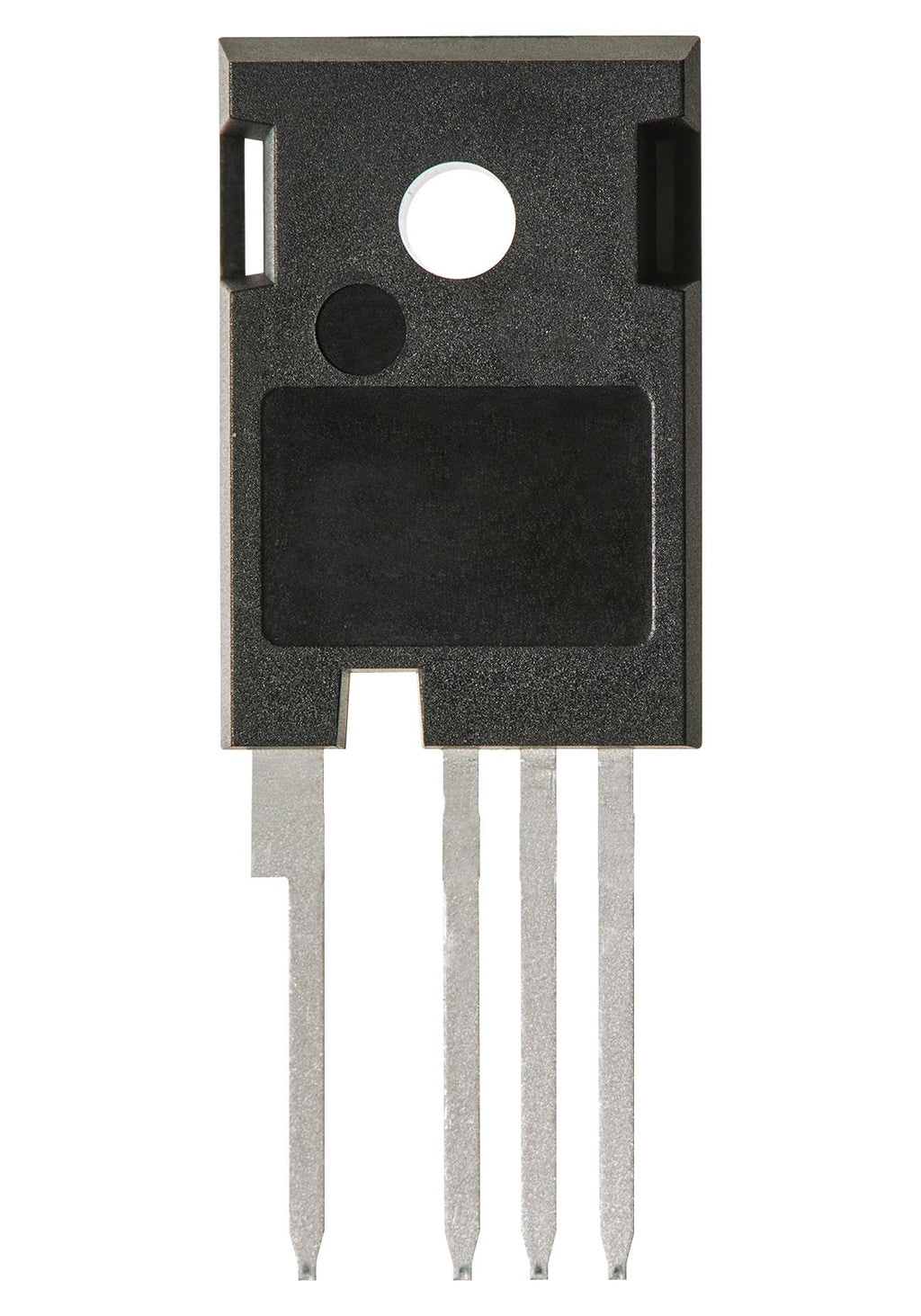

NTH4L020N120SC1 is a silicon carbide (SiC) MOSFET. Typical applications are UPS, DC-DC converter, boost inverter.
- 100% avalanche tested
- High speed switching with low capacitance (Coss = 258pF)
- Drain-to-source voltage is 1200V at TJ = 25°C
- Continuous drain current is 102A at TC = 25°C
- Power dissipation is 255W at TC = 100°C
- Pulsed drain current is 408A at TA = 25°C
- Operating junction and storage temperature range from -55 to +175°C
- TO-247-4LD package
Product details
Other details
| Brand | ONSEMI |
| Part Number | NTH4L020N120SC1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
