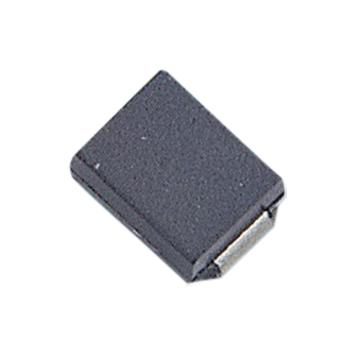

ONSEMI NSIC2030JBT3G LED Driver, Constant Current, 120V input, 1 Output, 30 mA out, DO-214AA-2

The NSIC2030JBT3G is a constant current regulator & LED driver for A/C off-line applications in 2 pin SMB package. The linear constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). The CCR is based on self biased transistor (SBT) technology and regulates current over a wide voltage range. It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents. The CCR turns on immediately and is at 35% of regulation with only 0.5V Vak. It requires no external components allowing it to be designed as a high or low side regulator. The 120V anode cathode voltage rating is designed to withstand the high peak voltage incurred in A/C offline applications. The high anode cathode voltage rating withstands surges common in automotive, industrial and commercial signage applications.

• Robust power package of 3W
• Steady state current at Vak = 7.5V is 30mA
• Voltage overhead is 1.8V
• Pulse current at Vak = 7.5V is 32.8mA
• Immediate turn-on
• Voltage surge suppressing protecting LEDs
• UL94 V0 certified
• SBT (self biased transistor) technology
• Negative temperature coefficient

Applications

Power Management, Automotive, Industrial
