Description
The NCV4275ADT50RKG is an integrated fixed low-dropout Voltage Regulator designed for use in harsh environments. It provides over-current protection, over-temperature protection and a programmable microprocessor reset. The output is stable over a wide output capacitance and ESR range.
- Very low current consumption
- Active reset output
- Fault protection
- Short-circuit protection
- Thermal overload protection
- Pin compatible with the NCV4275
Applications
Automotive
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Output Type: Fixed |
| Input Voltage Min: 5.5V |
| Input Voltage Max: 42V |
| Output Voltage Nom: 5V |
| Output Voltage Min: - |
| Output Voltage Max: - |
| Dropout Voltage Typ @ Current: 250mV |

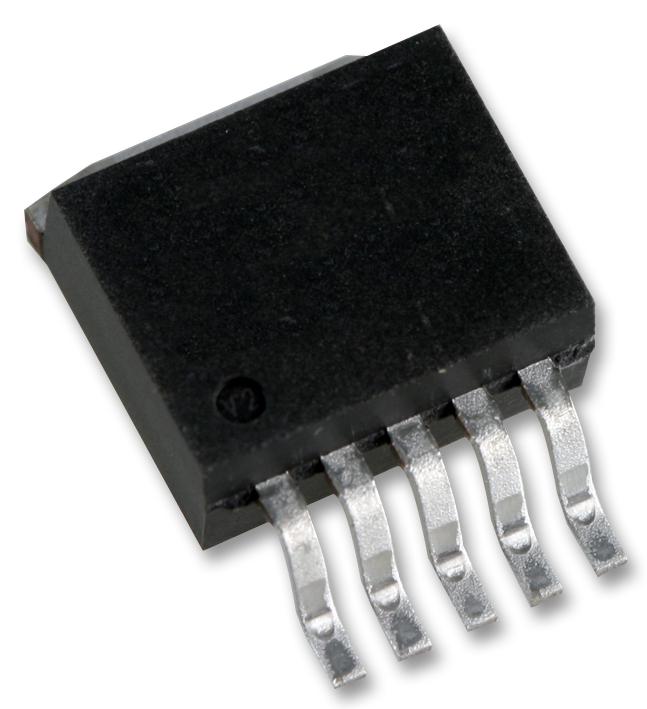

| IC Case / Package: TO-252 (DPAK) |
| No. of Pins: 5Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 150°C |
| Product Range: 5V 700mA LDO Voltage Regulators |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | ONSEMI |
| Part Number | NCV4275ADT50RKG |
| Quantity | Each |
| Technical Data Sheet EN |  |
