Description

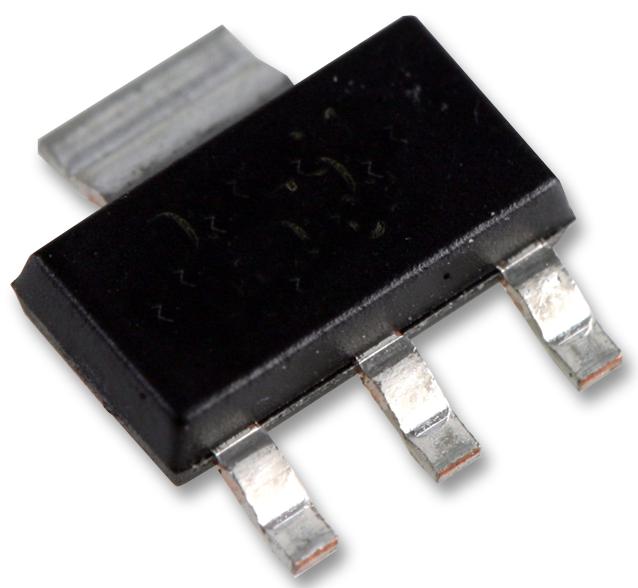

The NCV1117STAT3G is a low-dropout Positive Fixed Voltage Regulator that is capable of providing an output current that is in excess of 1A with a maximum dropout voltage of 1.2V at 800mA over-temperature. The on chip trimming adjusts the reference/output voltage to within ±1% accuracy. Internal protection features consist of output current limiting, safe operating area compensation and thermal shutdown.
- Adjustable output voltage option
- No minimum load requirement for fixed voltage output devices
- Current limit, safe operating and thermal shutdown protection
- Reference/output voltage trimmed to ±1%
- Operation to 20V input
Consumer Electronics, Industrial, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | ONSEMI |
| Part Number | NCV1117STAT3G |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
