| ₹ 137.01 includes GST and import duties. | |
| B2B customers can avail ₹ 20.89 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

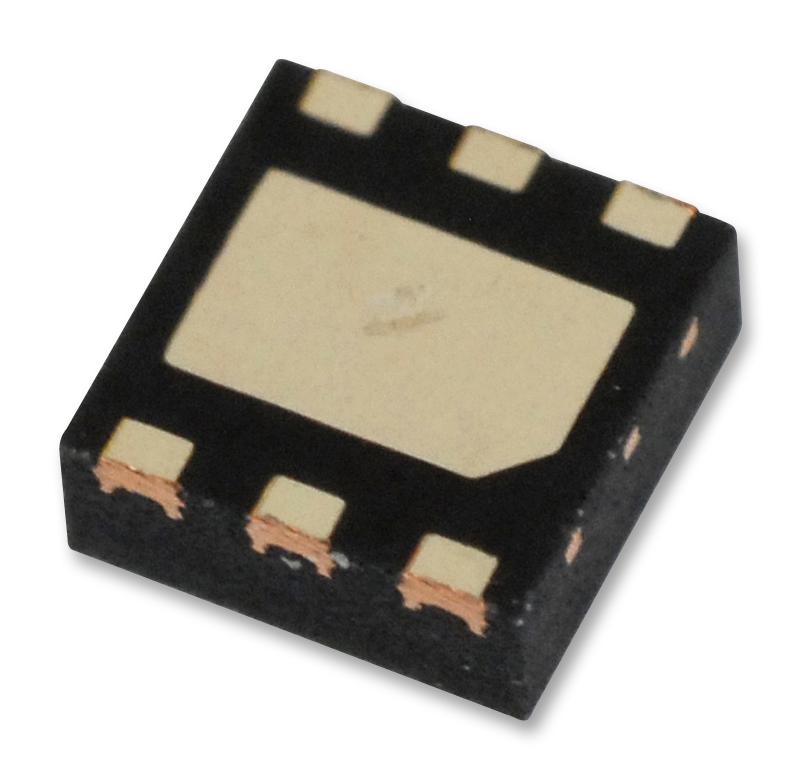

The NCP705MT30TCG is a 3V fixed output low-dropout (LDO) Linear Regulator with ultra-low noise and very high power supply rejection ratio (PSRR). The device doesn't require any additional noise bypass capacitor to achieve ultra-low noise performance. The device employs dynamic IQ management for ultra-low quiescent current consumption at light-load conditions and great dynamic performance.
- 0.8V Reference voltage
- 13µA Ultra-low quiescent current of (typical)
- 12µVrms Ultra-low noise (from 100Hz to 100kHz)
- 230mV Typical at 500mA very low dropout
- ±2% Accuracy over load, line and temperature
- 71dB at 1kHz High PSRR
- Internal soft-start to limit the turn-ON inrush current
- Thermal shutdown and current limit protections
- Stable with a 1µF ceramic output capacitor
- Active output discharge for fast turn-OFF
Consumer Electronics, Portable Devices, Communications & Networking, Wireless, Medical, RF Communications, Power Management
Other details
| Brand | ONSEMI |
| Part Number | NCP705MT30TCG |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 134.27 |
| 3-5 | ₹ 132.9 |
| 5-10 | ₹ 130.16 |
| 10+ | ₹ 127.42 |
Bulk discount will be automatically applied during checkout based on quantity.
